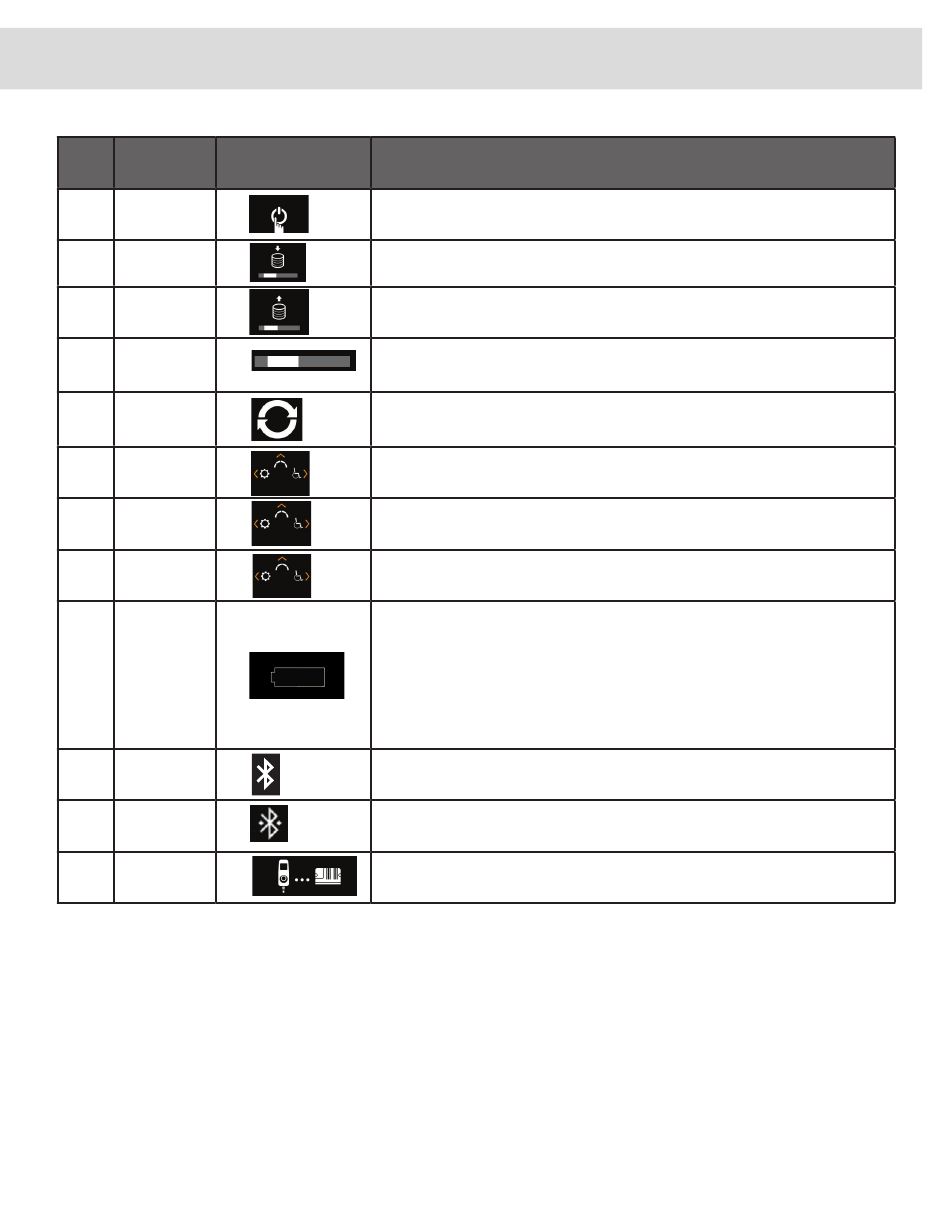

Graphic User Interface - General System
Item Icon Name
X4 Power
Cycle
X5 DB backup
X6 DB restore
X7 Animated bar;
Animated
element
X8 Firmware
update
X9 Home drive
X10 Home seat
X11 Home settings
X12 Battery
outline;
Battery X,
Battery
charging
X13 BT visible
X14 BT connected
X15 Configuring
network
Icon visual
Shown when power cycle is required. Indicates a required action/input.
Shows when system is backing up any changes made.
Shows when system is restoring parameters from Power base.
Shows when system is processing internally.
Shown if system has detected an update and asks to confirm the installation upon a
forward input command. Similarity to BT connection x. Icon Select on top, "Update"
text on the bottom. Indicates a required action/input.
A forward command will move to the first drive profile.
A right command will move to the seat screen.
A left command will move to the settings screen.
The battery state shall have the following state indications:
1. Green, 100% segments (total, full)
2. Green, 80% segment
3. Green, 60% segment
4. Yellow, 40% segment
5. Red, 20% segment
6. Red Cross (empty)
Percentage is shown below. While charging, an indication shall be added in front of
it.
Shows when Bluetooth is enabled.
Shows when Bluetooth is connected.
Item that indicates that the system modules are being configured. Shows animated
bar below.
BASIC OPERATION INSTRUCTIONS
