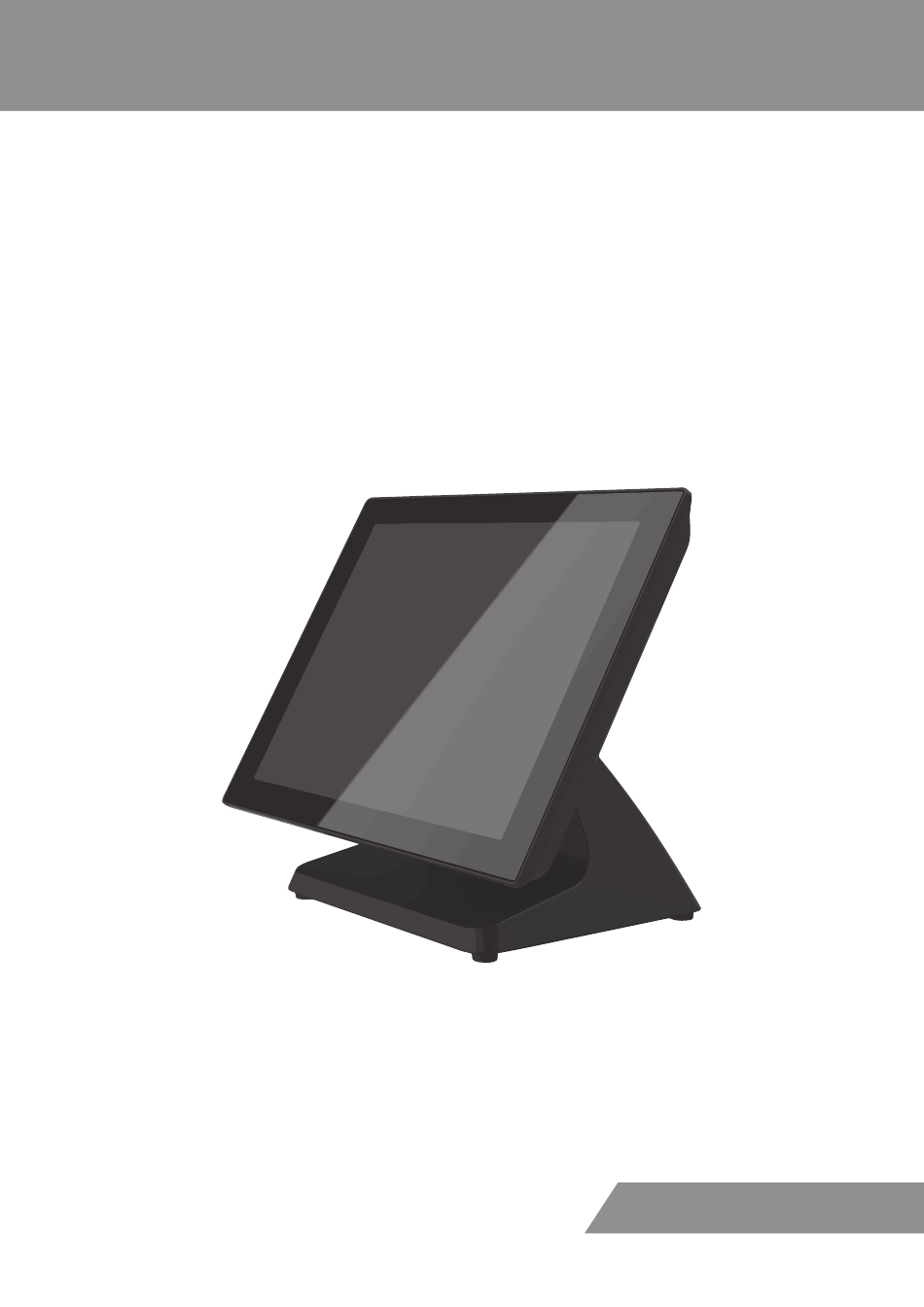

  • Page 1 Saturn Series S-615L/ S-715L User Manual Version 1.0...
  • Page 2 About this Manual Thank you for purchasing Saturn Series Touch Terminal. This terminal offers highly enhanced features, with easy connection to various optional devices for optimal performance. This user manual describes how to setup and connect your terminal. Copyright © Copyright 2019 All rights reserved.
  • Page 3 • If there is any of the following situation arise, notify a qualified service technician immediately: ◊ The power cord or plug is damaged. ◊ The equipment has been dropped and damaged. ◊ The equipment does not function normally. • Do not leave the equipment in a non air-conditioned environment where the storage temperature may go above 70°C (158°F), as this can cause damage to the equipment.
  • Page 4 reception, which can be determined by switching the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the interference receiving antenna. • Increase the distance of separation between the equipment and interference receiver. •...
  • Page 5 類 • 警告使用者：這是甲 的資訊產品，在居住的環境中使用時，可能成射頻干擾，在這種情況 使用者會被要求採取某些適當的對策。 WEEE Notice The WEEE logo (shown at the left) on the product or on its box indicates that this product must not be disposed of or dumped with your other household waste. You are liable to dispose of all your electronic or electrical waste equipment by relocating over to the specified collection point for recycling of such hazardous waste.

  • Page 6: Table Of Contents

    Contents Chapter 1: Introduction ............8 Package Contents ..................8 Overview of Saturn Series ..............9 Front View ....................9 Rear View ....................9 Powering ON/OFF Saturn POS ..............11 Physical Dimensions .................12 Touch Terminal Specifications ..............17 Peripherals Specifications .................19 Chapter 2: Preparing For the Installation ......20 Main Board Jumper Setting and Connector Definition .....
  • Page 7 Chapter 6: Frequently Asked Questions (FAQ) ....48 How do I clear CMOS? ................48...

  • Page 8: Chapter 1: Introduction

    INTRODUCTION Chapter 1 Introduction Congratulations on your purchase of this Touch Terminal. Your easy-to-use POS terminal is designed to help you enhance your business flexibility by offering superior customer experience. Chapter 1: Introduction Package Contents Before setting up your Touch Terminal, check that the package contains the following items. If any of the items is missing or damaged, contact your vendor immediately.

  • Page 9: Overview Of Saturn Series

    INTRODUCTION Overview of Saturn Series The figures in this section illustrate the components (including input and output ports) located at the front and rear of your Touch Terminal. Front View Standard Type Rear View Standard Type...
  • Page 10 INTRODUCTION I/O Ports S-615L USB3.0 USB2.0 COM3 COM2 COM1 USB2 USB1 Item Connector Definition DC 12V Output DC 12V Input RJ12 Cash Drawer COM3 RJ50 COM 3 Serial Ports COM2 RJ50 COM 2 Serial Ports COM1 RJ50 COM 1 Serial Ports USB2 USB 3.0 + USB 2.0 USB1...

  • Page 11: Powering On/Off Saturn Pos

    INTRODUCTION Powering ON/OFF Saturn POS Power ON Saturn POS The power button is located at the bottom side of the back cover. Press down the power button to power on the POS. Power OFF Saturn POS In most cases, press the power button of the POS to power the system off. If the terminal fails to turn off the machine for unknown reasons, please be advised to hold the power button more than 4 seconds to force a shutdown of the system.

  • Page 12: Physical Dimensions

    INTRODUCTION Physical Dimensions Standard Display S-615L...
  • Page 13 INTRODUCTION S-715L...
  • Page 14 INTRODUCTION LCM (Liquid Crystal Module) VFD Customer Display...
  • Page 15 INTRODUCTION 10” Secondary LCD Display...
  • Page 16 INTRODUCTION 15” Secondary LCD Display...

  • Page 17: Touch Terminal Specifications

    INTRODUCTION Specifications Touch Terminal Specifications S-615L S-715L Model number LCD & Touch Panel LCD Panel 15” LED-backlit display Resolution 1024 x 768 (default) Brightness 300 cd/m Touch Screen Flat Projected Capacitive Touch (USB) System Configuration Intel® Celeron® J1900 up to Core™...
  • Page 18 INTRODUCTION S-615L S-715L Model number Physical Dimensions 510 (L) x 405 (W) x 320 (H) mm for S-415/615/715-L/W (P/N: Packing ZKIPK-00123) Net Weight 4.61Kg 4.89 Kg Gross Weight 6.61Kg 6.89 Kg Safety & Environment Product Certification CE / FCC certificated Operation Temperature 0°C to 40°C Storage Temperature -25°C to 70°C...

  • Page 19: Peripherals Specifications

    INTRODUCTION Peripherals Specifications LCD display Model No. MN-0810 MN-1090U MN-1510 LCD Panel 8” 10.4” 15” Resolution 800 x 600 1024 x 768 1024 x 768 Viewing Angle 140° (H) / 125° (V) 85° (H) / 85° (V) 160° (H) / 140° (V) Response Time 25ms (typical) 25ms (typical)

  • Page 20: Chapter 2: Preparing For The Installation

    • Saturn Series do not support PCI slot. • Do not insert or remove any device or component from the Saturn Series while the power is turned on. • If using Saturn Series in a dusty environment, clean the Touch Terminal regularly.

  • Page 21: Main Board Jumper Setting And Connector Definition

    PREPARING FOR THE INSTALLATION Main Board Jumper Setting and Connector Definition Top Side S-615L SATA1 LED1 Battery LAN1 USB1 USB2 COM1 COM2 COM3 Cash Drawer1 VGA1 TOP and Bottom Side Layout Content List Top Side Connector Information Item Connector Definition LED1 Power LED Power Trigger...
  • Page 22 PREPARING FOR THE INSTALLATION S-715L TOP and Bottom Side Layout Content List Top Side Connector Information Item Connector Definition Power Trigger SATA1 7+15 SATA Port...

  • Page 23: Bottom Side

    PREPARING FOR THE INSTALLATION Bottom Side S-615L JUSB3 COM4 LVDS1 CONVERTER1 JUSB1 JUSB2 SO DIMM1 Bottom Side Layout Content List Bottom Side Connector Information Item Connector Definition JUSB1/JUSB2 USB 2.0 JUSB3 USB 2.0 LVDS1 LVDS Single/Dual Channel CONVERTER1 LCD Backlight Converter COM4 COM 4 Serial Ports...
  • Page 24 PREPARING FOR THE INSTALLATION S-715L Bottom Side Layout Content List Bottom Side Connector Information Item Connector Definition JUSB1 USB 2.0 JUSB2/JUSB3/JUSB4/JUSB5/JUSB6 USB 2.0 LVDS1 LVDS Single/Dual Channel CONVERTER1 LCD Backlight Converter LED1 System Power LED FAN1 CPU FAN FAN2 System FAN SPK_R1 Speaker SPK_L1...
  • Page 25 PREPARING FOR THE INSTALLATION Jumpers Content List S-615L Battery PIN Header / Jumper List Item Connector Definition SPI BIOS Flash LCD Panel Voltage Select Clear CMOS Cash Drawer Voltage Select COM 1 Port Voltage Select COM 2 Port Voltage Select COM 3 Port Voltage Select...
  • Page 26 PREPARING FOR THE INSTALLATION JP1: SPI BIOS Flash Definition Definition 2 4 6 VCC_SPI SPICS SPICLC 1 3 5 SPISO SPISI JP2: LCD Panel Voltage Select Definition Definition 1 2 3 3.3V JP3: Clear CMOS Definition Definition 1 2 3 Normal Clear CMOS JP4: Cash Drawer Voltage Select...
  • Page 27 PREPARING FOR THE INSTALLATION S-715L PIN Header / Jumper List Item Connector Definition SPI BIOS Flash JRTC1 Clear CMOS LCD Panel Voltage Select Cash Drawer Voltage Select COM 1 Port Voltage Select COM 2 Port Voltage Select COM 3 Port Voltage Select...
  • Page 28 PREPARING FOR THE INSTALLATION J2: SPI BIOS Flash connector Definition Definition 2 4 6 VCC_SPI SPICS SPICLC 1 3 5 SPISO SPISI JRTC1: Clear CMOS Definition Definition 1 2 3 Normal Clear CMOS JP2: LCD Panel Voltage Select Definition Definition 1 2 3 3.3V JP3: Cash Drawer Voltage Select...

  • Page 29: System Default Settings

    PREPARING FOR THE INSTALLATION System Default Settings The following is the information on default settings for Touch Terminal serial ports. Voltage Output Definition S-615L/ S-715L Voltage Output Connector Item Power Support COM 1 for extension 5V / 12V Select by jumper COM 2 for extension 5V / 12V Select by jumper COM 3 for extension 5V / 12V Select by jumper Cash Drawer...

  • Page 30: Chapter 3: System Memory

    Chapter 3 System Memory Overview The mainboard comes with one 204-pin Double Data Rate 3 Low voltage (DDR3L) Dual Inline Memory Modules (SODIMM) sockets. A DDR3L module has the same physical dimensions as a DDR SODIMM but has a 204-pin footprint compared to the 240-pin DDR2 DIMM.

  • Page 31: Chapter 4: Bios Setup

    BIOS SETUP Chapter 4 BIOS Setup 4-1 S-615L Entering BIOS Setup 1. Connect an alphanumeric USB keyboard to the motherboard. 2. Apply power to the motherboard. 3. When the motherboard boots, press [F2] to display the BIOS Setup. 4. When the motherboard boots, press [F10] to display the Boot Menu. Selecting Menu Options ●...
  • Page 32 BIOS SETUP Main Tab Under <Main>, select < System Time > or <System Date> to change the system date and time. Advanced Tab for setting the LCD Brightness 1. Select <Advanced> and then select <Video Configuration>.
  • Page 33 BIOS SETUP 2. Select <Brightness Control Level>. Default setting is [Level 3]. Security Tab for setting Supervisor Password 1. Select <Security> and then Set <Supervisor Password>.
  • Page 34 BIOS SETUP 2. Enter New Password and then Enter New Password Again and then select [YES]. Power Tab...
  • Page 35 BIOS SETUP Boot Tab for setting Boot Type 1. Select <Boot> and then Set <Boot Type>. 2. Select <Legacy Boot Type> or <UEFI Boot Type>. Default setting is [Legacy Boot Type]. Save & Exit Tab 1. Select [Load Optimal Default], and then press [Enter]. 2.

  • Page 36: 4-2 S-715L

    BIOS SETUP 4-2 S-715L Entering BIOS Setup 1. Connect an alphanumeric USB keyboard to the motherboard. 2. Apply power to the motherboard. 3. When the motherboard boots, press [F2] to display the BIOS Setup. 4. When the motherboard boots, press [F10] to display the Boot Menu. Selecting Menu Options ●To select (highlight) options and menu screens, use the arrow keys.
  • Page 37 BIOS SETUP Advanced Tab for setting the LCD Brightness 1. Select <Advanced> and then select <Video Configuration>. 2. Select <Brightness Control Level>. Default setting is [Level 3].
  • Page 38 BIOS SETUP Security Tab for setting Supervisor Password 1. Select <Security> and then Set <Supervisor Password>. 2. Enter New Password and then Enter New Password Again and then select [YES].
  • Page 39 BIOS SETUP Power Tab Boot Tab for setting Boot Type 1. Select <Boot> and then Set <Boot Type>. 2. Select <Legacy Boot Type> or <UEFI Boot Type>. Default setting is [Legacy Boot Type].
  • Page 40 BIOS SETUP Save & Exit Tab 1. Select [Load Optimal Default], and then press [Enter]. 2. Select [Exit Saving Changes], and then press [Enter].

  • Page 41: Chapter 5: Hardware Installation

    HARDWARE INSTALLATION Chapter 5 Hardware Installation Replacing the Rear Covers 1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing down. 2. Slide the top rear cover off the Touch Terminal. 3. Replace the top rear cover on the Touch Terminal. 4.

  • Page 42: Installing / Replacing The Hdd

    HARDWARE INSTALLATION Installing / Replacing the HDD WARNINN: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. 1. Remove the screw from the HDD/identification reader compartment cover. 2. Detach the HDD/identification reader compartment cover. 3.
  • Page 43 HARDWARE INSTALLATION 9. Align and install the panel stand to the Touch Terminal. 10. Secure the panel stand to the Touch Terminal with the four screws. 11. Align and install the customer display into its slot on the panel stand. 12.

  • Page 44: Installing The Secondary Lcd Display (Optional)

    HARDWARE INSTALLATION Installing the Secondary LCD Display (Optional) WARNINN: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. 1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing down. 2.

  • Page 45: Installing The Identification Reader(Msr/Ibutton/Fingerprint/Rfid/M+I) (Optional)

    HARDWARE INSTALLATION Installing the Identification Reader (MSR/iButton/Fingerprint/RFID/M+i) (Optional) WARNINN: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. NOTE: • The identification reader can be installed on either side of the Touch Terminal. 1.
  • Page 46 HARDWARE INSTALLATION Identification Reader Item Name Magnetic Stripe Reader (MSR) MSR + iButton Reader Radio-Frequency Identification Reader (RFID) Fingerprint Reader iButton Reader...

  • Page 47: Installing The Vesa Mount (Optional)

    HARDWARE INSTALLATION Installing the VESA Mount (Optional) NOTE: • Use only wall mount kits approved by the manufacturer. Wall mount kits are sold separately. • The Touch Terminal device is compatible with a VESA mounting hole pattern of 75x75mm. 1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing down. 2.
  • Page 48 FREQUENTLY ASKED QUESTIONS (FAQ) Chapter 6 Frequently Asked Questions (FAQ) How do I clear CMOS? S-615L To clear CMOS, do the following: 1. Turn off power and pull out the power cord. 2. Insert the JP3 jumper cap to clear CMOS PIN and remove the jumper cap from clear CMOS PIN.
  • Page 49 FREQUENTLY ASKED QUESTIONS (FAQ) S-715L To clear CMOS, do the following: 1. Turn off power and pull out the power cord. 2. Insert the JRTC1 jumper cap to clear CMOS PIN and remove the jumper cap from clear CMOS PIN. 3.
