Fitting the protective hose

ATTENTION
Damage to drive caused by fluid
If fluid gets inside the drive or on the
connection, this can corrode the electri-
cal and mechanical components.
Always use a protective hose with
a diameter of 26 to 31 mm. This
corresponds to a hose width of 40 to
50 mm.

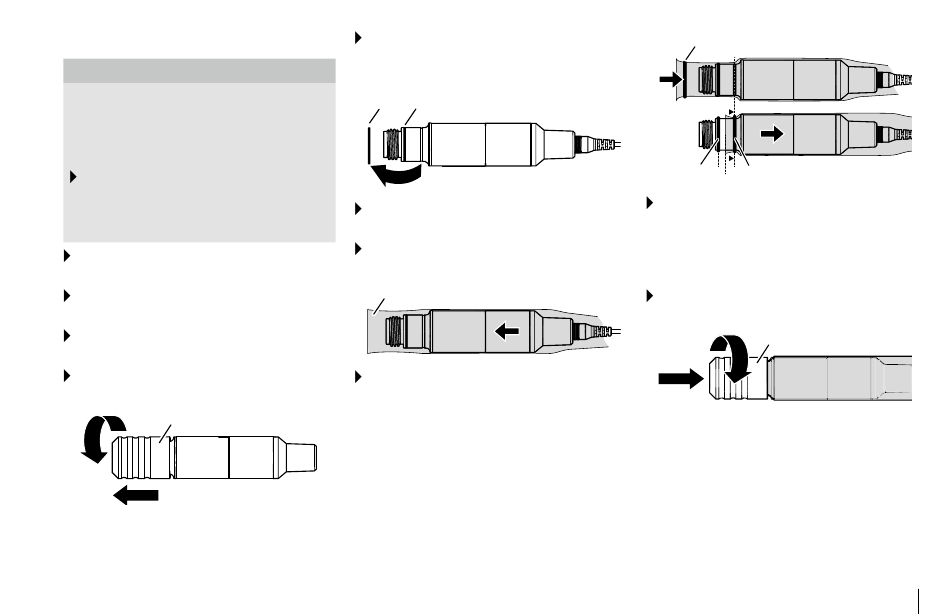

Remove the connecting cable from
the HAWK PEN.
Cut off a section of protective hose of
an appropriate length.
Slide this section of protective hose
completely over the connecting cable.
Completely unscrew the handle (1)
from the drive.
1
Both O-rings (2 and 3) become visible.
Cheyenne HAWK PEN
Remove the large O-ring (2) and store
it safely. The small O-ring (3) remains
in its groove.
2 3
Reconnect the connecting cable and its
fitted protective hose to the HAWK PEN.
Pull the end of the protective hose (4)
completely over the HAWK PEN.
4
Slide the large O-ring (2) over the
protective hose. Then pull the protective
hose with its fitted O-ring back until it
locates back in its groove. Ensure that
the end of the protective hose locates
precisely between the O-rings.
2
3 2
If necessary, adjust the position of
the protective hose by carefully sliding
it under the O-ring. While doing so,
the O-rings must not be pulled out of
their respective grooves.
Screw the handle (1) back onto
the thread of the drive unit.
1
