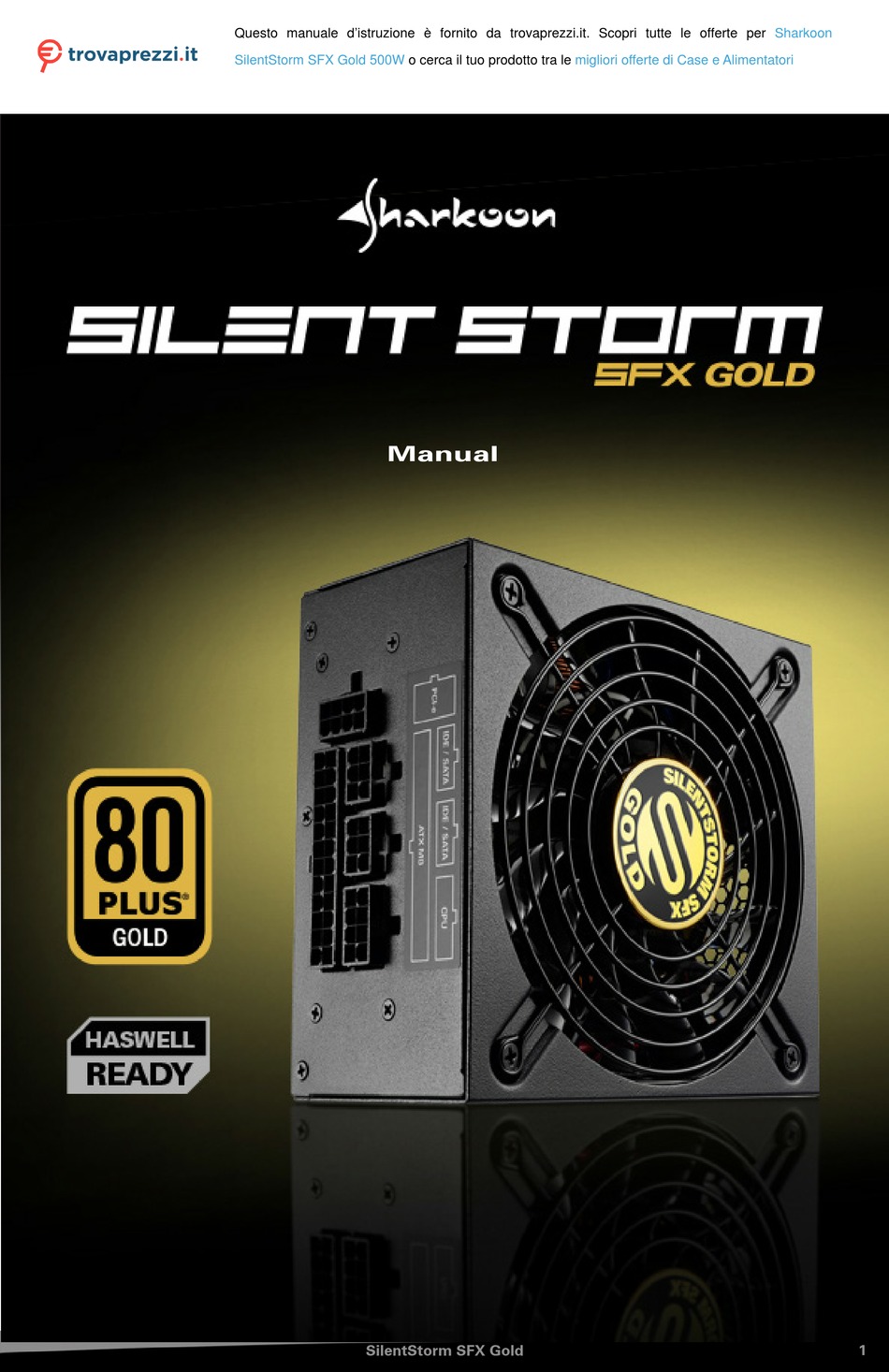

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Sharkoon SilentStorm SFX Gold 500W o cerca il tuo prodotto tra le migliori offerte di Case e Alimentatori Anleitung Manual SilentStorm SFX Gold...
-
Page 2: Table Of Contents
Table of Contents 1. Features 2. Specifications 2.1 Overview 2.2 Mains voltage and protective functions 2.3 Safety standards 2.4 Guarantee period 3. Package contents 4. The modular system of the power supply 4.1 The terminals on the power supply 4.2 The modular cables 4.3 Cable lengths 5. -
Page 3: Features
Dear Customer, Congratulations and thank you for your purchase of this high-quality SHARKOON product. To ensure a long service life, and full functionality of the product, we recommend that you read this manual thoroughly. We hope you enjoy our product! SHARKOON Technologies 1. -
Page 4: Specifications
2. Specifications 2.1 Overview Model No. SilentStorm SFX 500 Gold Input (AC) Input voltage Current Frequency 100 - 240 V 50 - 60 Hz Output (DC) +5 V +3.3 V +12 V -12 V +5 Vsb Max. Output Current 20 A 20 A 40 A 0.3 A... -
Page 5: Safety Standards
4. Over Voltage Protection (OVP) Over Voltage Protection: This function protects against excessive voltage, preventing damage to the PC by switching off the power supply during a surge. 5. Under Voltage Protection (UVP) Under Voltage Protection: If the power supply falls below a fixed number of the minimum voltage it will switch off automatically. -
Page 6: Package Contents
4x SATA power connectors 2x 4-pin IDE power connectors 1x Floppy power connector Note: If you are missing any of the items listed above, please contact our customer service immediately: support@sharkoon.com (Germany and Europe) support@sharkoon.com.tw (international) SilentStorm SFX Gold... -
Page 7: The Modular System Of The Power Supply
4. The modular system of the power supply A special feature for the connection of peripheral devices is the so-called cable management. Thanks to this modular system only the required cables needed for the installation of components are used thus keeping the case tidy and optimizing the airflow within. 4.1 The terminals on the power supply Connector codification 4.2 The modular cables... -
Page 8: Cable Lengths
4.3 Cable lengths SilentStorm SFX Gold... -
Page 9: Installation
5. Installation If installing into an empty PC case please continue to section 5.1. If a power supply has already been installed, remove it first from the case. To do so proceed as follows: 1. Switch off your PC. Disconnect the power cable from the wall outlet and your power supply. Unplug all cables connected to the PC case (e.g. -
Page 10: Connecting Mainboard And Graphics Card(S)
5.2 Connecting the mainboard and graphics card(s) 1. Plug the ATX power connector (fig. 1) to the respective jack on the mainboard. Fig. 1 2. Plug the 4+4-pin CPU power connector (fig. 2) to the respective jack on the mainboard. Fig. -
Page 11: Connecting Optical Drives And Other Peripheral Devices
3. Connect the 6+2-pin PCIe connector (fig. 3), if required, or additionally the second 6+2-pin PCIe connector with your graphics card(s). Fig. 3 5.3 Connecting optical drives and other peripheral devices 1. Connect the 4-pin IDE power connectors (fig. 4), SATA power connectors (fig. 5) or the Floppy power connector (fig. -
Page 12: Connecting The Cables To The Power Supply
Do not force to plug the connectors within the incorrect orientation, nor modify any of the components, as this will damage the power supply and other hardware. SHARKOON guarantee does not cover damage cause by incorrect handling. 6. Troubleshooting If the power supply does not work properly, check the following: 1. - Page 13 All named products and descriptions are trademarks and/or registered trademarks of the respective manufac- turers and are accepted as protected. As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications may vary.
