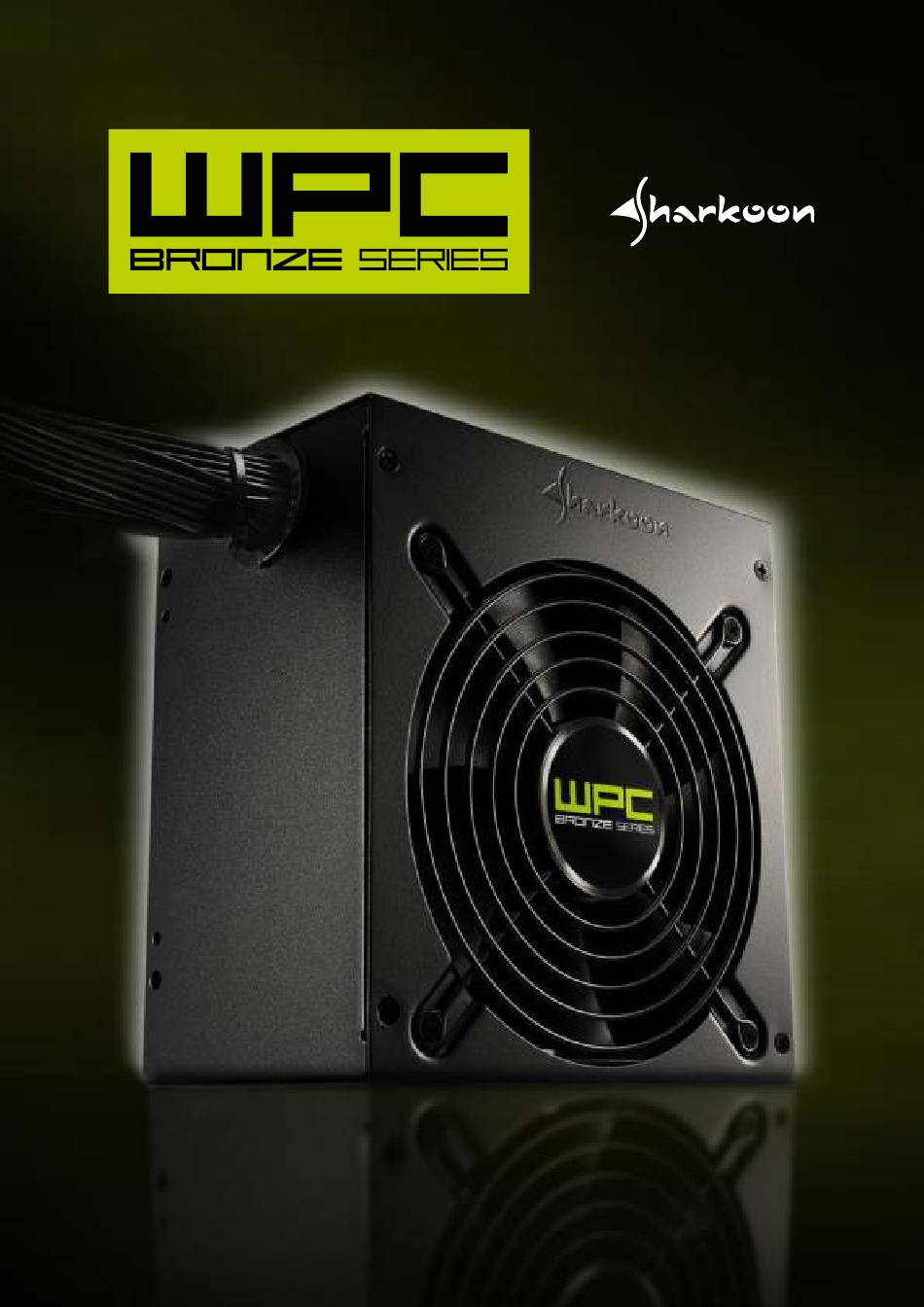

- Page 1 Manual...
- Page 2 TABLE OF CONTENTS 1. General 2. Specifications 2.1 Overview 2.2 Mains Voltage and Protections 2.3 Safety Certifications 3. Package Contents 4. Cable Configuration 4.1 Connection Options 4.2 Cable Diagram WPC450/550 4.3 Cable Diagram WPC650/750 5. Installation 5.1 Installing the Power Supply into a PC Case 5.2 Connecting Mainboard and Graphics Card(s) 5.3 Connecting Optical Drives and Other Peripheral Devices 5.4 Checking All Connections...
- Page 3 Dear Customer, Thank you for your purchase of this high-quality SHARKOON product. To ensure a long service life, and full functionality of the product, we recommend that you read this manual thoroughly. SHARKOON Technologies www.sharkoon.com 1. General Power 450, 550, 650 or 750 Watt...
- Page 4 Model No. WPC550 Bronze Input Voltage Current Frequency Input (AC) 115 - 230 VAC 50 - 60 Hz Output (DC) +3.3 V +5 V +12 V -12 V +5 Vsb Max. Output Current 22 A 22 A 41.25 A 0.3 A 2.5 A Max.
- Page 5 Mounting screws Cable ties Manual Note: If you are missing any of the items listed above, please contact our customer service immediately: support@sharkoon.com (Europe) support@sharkoon.com.tw (International) 4. Cable Configurations 4.1 Connection Options 1x 20+4-Pin Mainboard Connector 1x 4+4-Pin CPU Connector...
- Page 6 4.2 Cable Diagram WPC450/550 4.3 Cable Diagram WPC650/750 1x 20+4-Pin 1x 20+4-Pin Mainboard-Connector Mainboard Connector 550 mm 550 mm 1x 4+4-Pin CPU Connector 550 mm 1x 4+4-Pin CPU Connector 4x 6+2-Pin 550 mm PCIe Connectors 550 mm 2x 6+2-Pin 150 mm PCIe Connectors 550 mm 150 mm...
- Page 7 Do not force to plug the connectors within the incorrect orientation, nor modify any of the components, as this will damage the power supply and other hardware. SHARKOON warranty does not cover damage cause by incorrect handling.
- Page 8 If the system still does not start, please contact support@sharkoon.com. Legal Disclaimer: For potential loss of data, especially due to inappropriate handling, SHARKOON assumes no liability. All na- med products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected.
