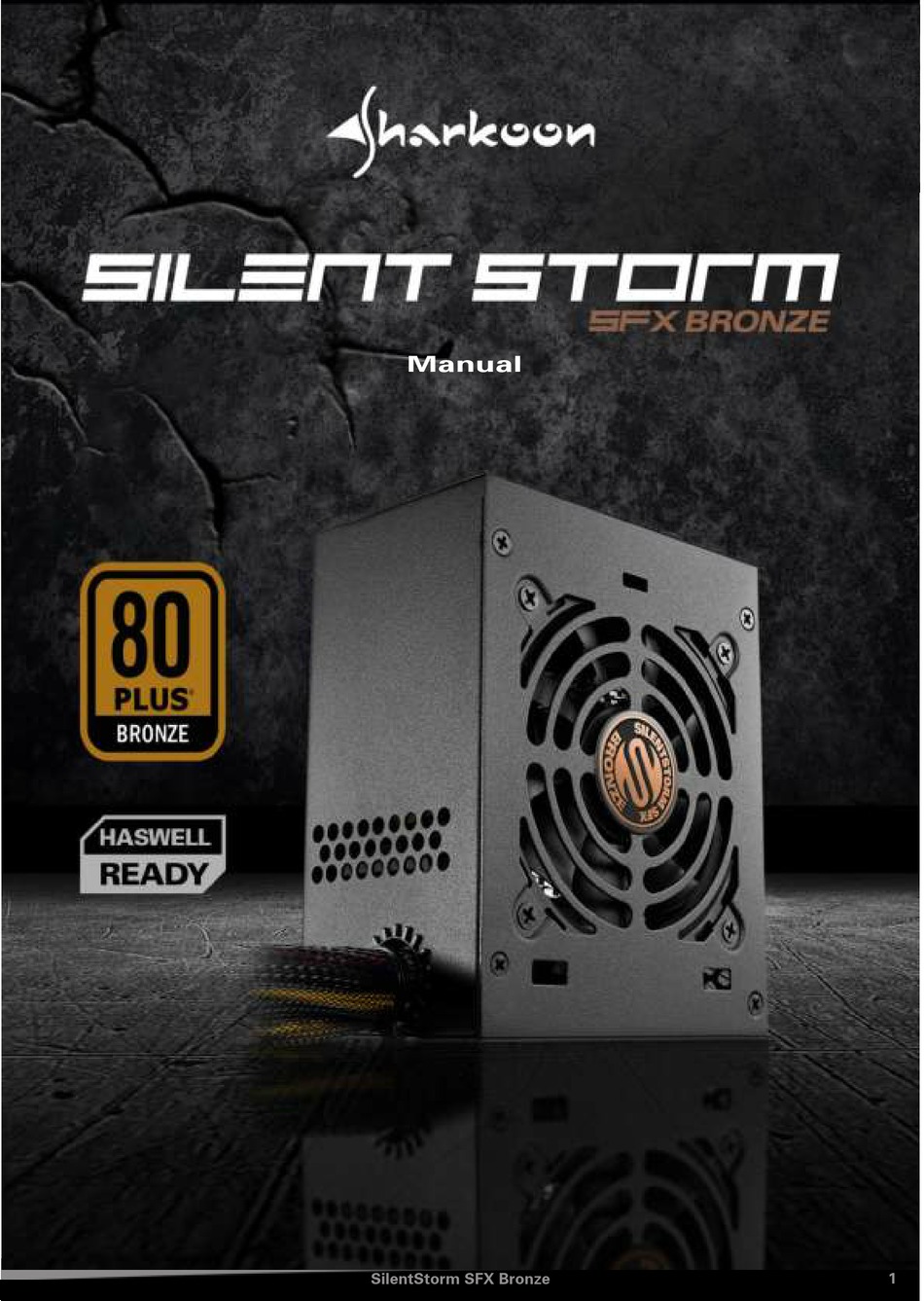

Manual
SilentStorm SFX Bronze
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SilentStorm SFX Bronze 350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sharkoon SilentStorm SFX Bronze 350

Summary of Contents for Sharkoon SilentStorm SFX Bronze 350

  • Page 1 Manual  SilentStorm SFX Bronze...

  • Page 2: Table Of Contents

    2.4 Guarantee period 3. Package contents 4. Cabling 4.1 Connectors 4.2 SilentStorm SFX Bronze 350 Watt cable length 4.3 SilentStorm SFX Bronze 450 Watt cable length 5. Installation 5.1 Installing the power supply into a PC case 5.2 Connecting mainboard and graphics card(s) 5.3 Connecting optical drives and other peripherals devices...

  • Page 3: Features

    Dear Customer, Congratulations and thank you for your purchase of this high-quality SHARKOON product. To ensure a long service life, and full functionality of the product, we recommend that you read this manual thoroughly. We hope you enjoy our product! SHARKOON Technologies 1.

  • Page 4: Specifications

    2. Specifications 2.1 Overview Model No. SilentStorm SFX 350 Bronze Input (AC) Input voltage Current Frequency 100 - 240 V 5.5 A 50 - 60 Hz Output (DC) +5 V +3,3 V +12 V -12 V +5 Vsb Max. Output Current 15 A 16 A 27 A...

  • Page 5: Mains Voltage And Protective Functions

    2.2 Mains voltage and protective functions This power supply works with 100 to 240 V (50/60 Hz) and is equipped with the following protective functions: 1. Over Power Protection (OPP) Over Power Protection: Turns off the power supply when more power than allowed is being delivered to the system, thus protecting the electronics from damage.

  • Page 6: Package Contents

    (C) Set of mounting screws (D) Cable ties (E) ATX bracket (F) Instructions Note: If you are missing any of the items listed above, please contact our customer service immediately: support@sharkoon.com (Germany und Europe) support@sharkoon.com.tw (International)  SilentStorm SFX Bronze...

  • Page 7: Cabling

    CPU and mainboard connectors, a 6-pin PCIe connector, two SATA, two IDE and a Floppy connector. The SilentStorm SFX Bronze 450 Watt also offers an additional SATA connector as well as a 6+2-pin PCIe connector. 4.1 Connectors SilentStorm SFX Bronze 350 Watt 1x 20+4-pin 1x 4-pin CPU 1x 6-pin PCIe...

  • Page 8: Silentstorm Sfx Bronze 350 Watt Cable Length

    4.2 SilentStorm SFX Bronze 350 Watt cable length  SilentStorm SFX Bronze...

  • Page 9: Silentstorm Sfx Bronze 450 Watt Cable Length

    4.3 SilentStorm SFX Bronze 450 Watt cable length  SilentStorm SFX Bronze...

  • Page 10: Installation

    5. Installation If installing into an empty PC case please continue to section 5.1. If a power supply has already been installed, remove it first from the case. To do so proceed as follows: 1. Switch off your PC. Disconnect the power cable from the wall outlet and your power supply. Unplug all cables connected to the PC case (e.g.

  • Page 11: Connecting Mainboard And Graphics Card(S)

    5.2 Connecting the mainboard and graphics card(s) 1. Plug the ATX power connector (fig. 1) to the respective jack on the mainboard. Fig. 1 2. Plug the 4-pin CPU power connector (SFX 350 Watt power supply Fig. 2a) or the 4+4-pin CPU power connector (SFX 450 Watt power supply Fig.

  • Page 12: Connecting Optical Drives And Other Peripherals Devices

    3. Connect the 6-pin PCIe connector by the 350 Watt power supply (Fig. 3a) or the 6-pin and, if needed, the 6+2-pin PCIe connector by the 450 Watt power supply (Fig. 3b) with your graphics card(s). Fig. 3b Fig. 3a 5.3 Connecting optical drives and other peripheral devices 1.

  • Page 13: Checking All Connections

    Do not force to plug the connectors within the incorrect orientation, nor modify any of the components, as this will damage the power supply and other hardware. SHARKOON guarantee does not cover damage cause by incorrect handling.
  • Page 14 All named products and descriptions are trademarks and/or registered trademarks of the respective manufac- turers and are accepted as protected. As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications may vary.

This manual is also suitable for:

Silentstorm sfx bronze 450
