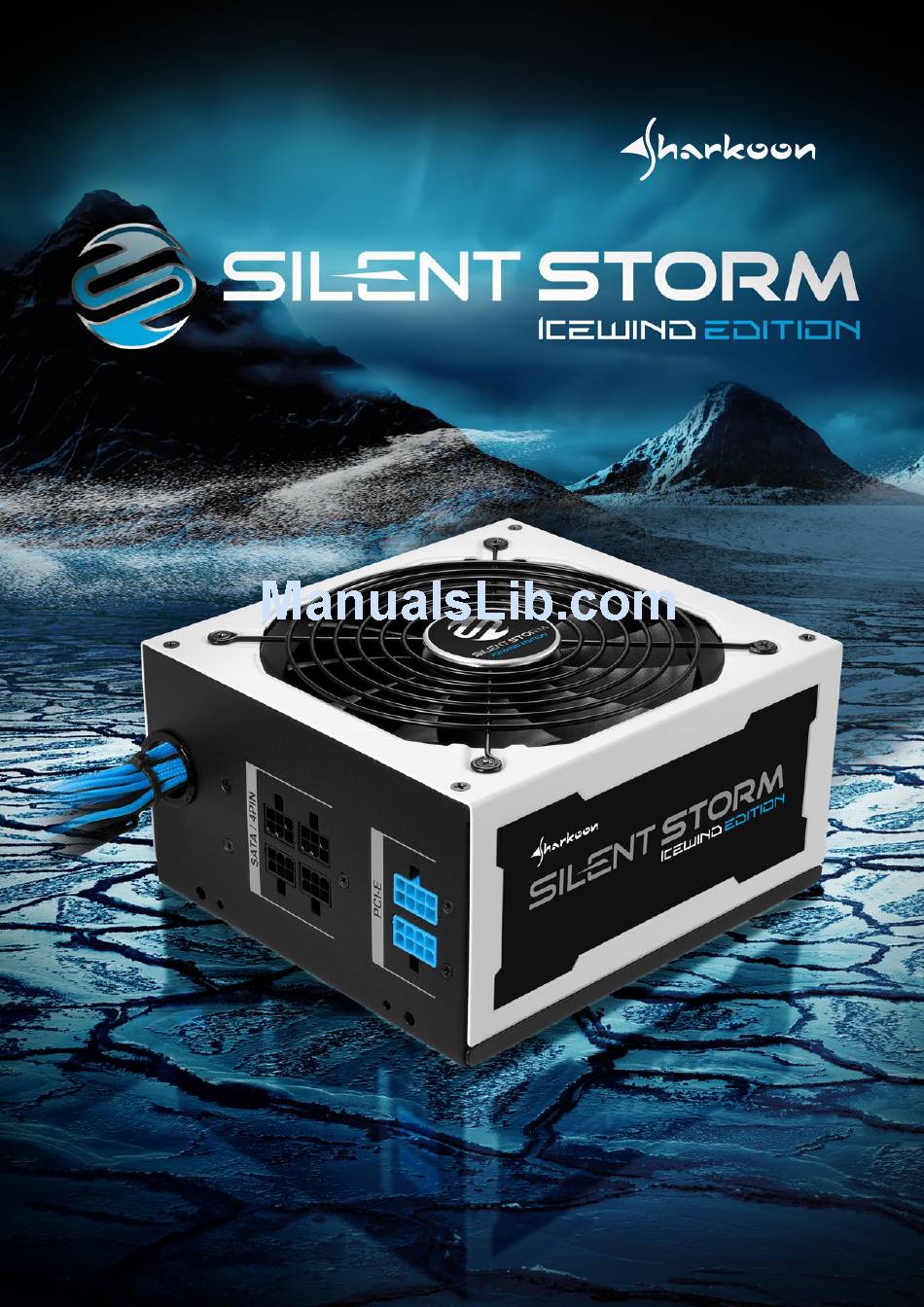

- Page 1 Manual...
-
Page 2: Table Of Contents
2.3 Safety Certifications 3. Package Contents 4. Modular System of the Power Supply 4.1 Connection Options 4.2 Cable Diagram SilentStorm Icewind 550 4.3 Cable Diagram SilentStorm Icewind 650/750 5. Installation 5.1 Installing the Power Supply into a PC Case 5.2 Connecting Mainboard and Graphic Card(s) 5.3 Connecting Optical Drives and Other Peripheral Devices... -
Page 3: General
Dear Customer, Thank you for your purchase of this high-quality SHARKOON Product. To ensure a long service life, and full functionality of the product, we recommend that you read this manual thoroughly. SHARKOON Technologies www.sharkoon.com 1. General Power 550, 650 or 750 Watt... -
Page 4: Mains Voltage And Protections
Model No. SilentStorm Icewind 650 Input Voltage Current Frequency Input (AC) 100 - 240 VAC 10 A 50 - 60 Hz Output (DC) +3.3 V +5 V +12 V -12 V +5 Vsb Max. Output Current 22 A 22 A 54.2 A 0.3 A 2.5 A... -
Page 5: Package Contents
Manual Note: If you are missing any of the items listed above, please contact our customer service immediately: support@sharkoon.com (Europe) support@sharkoon.com.tw (International) 4. Modular System of the Power Supply The provided modular cables are a special feature for connecting peripheral devices. With them, not needed cables can be simply detached or, if necessary, easily reattached to the power supply. -
Page 6: Cable Diagram Silentstorm Icewind 550
Please ensure to only use the supplied set of modular cables. The use of other cables (e.g. cables from an older Sharkoon power supply series or cables from another manufacturer) may result in damage to the device. 4.3 Cable Diagram SilentStorm Icewind 650/750 4.2 Cable Diagram SilentStorm Icewind 550... -
Page 7: Installation
5. Installation If installing into an empty PC case, please continue to section 5.1. If a power supply is already installed, remo- ve it first from the case. To do so, proceed as follows: 1. Turn off your PC. Disconnect the power cord from the wall outlet and your power supply. 2. -
Page 8: Connecting Optical Drives And Other Peripheral Devices
Do not force to plug the connectors within the incorrect orientation, nor modify any of the components, as this will damage the power supply and other hardware. SHARKOON warranty does not cover damage cause by incorrect handling. -
Page 9: Troubleshooting
If the system still does not start, please contact support@sharkoon.com. Legal Disclaimer: For potential loss of data, especially due to inappropriate handling, SHARKOON assumes no liability. All na- med products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected.
