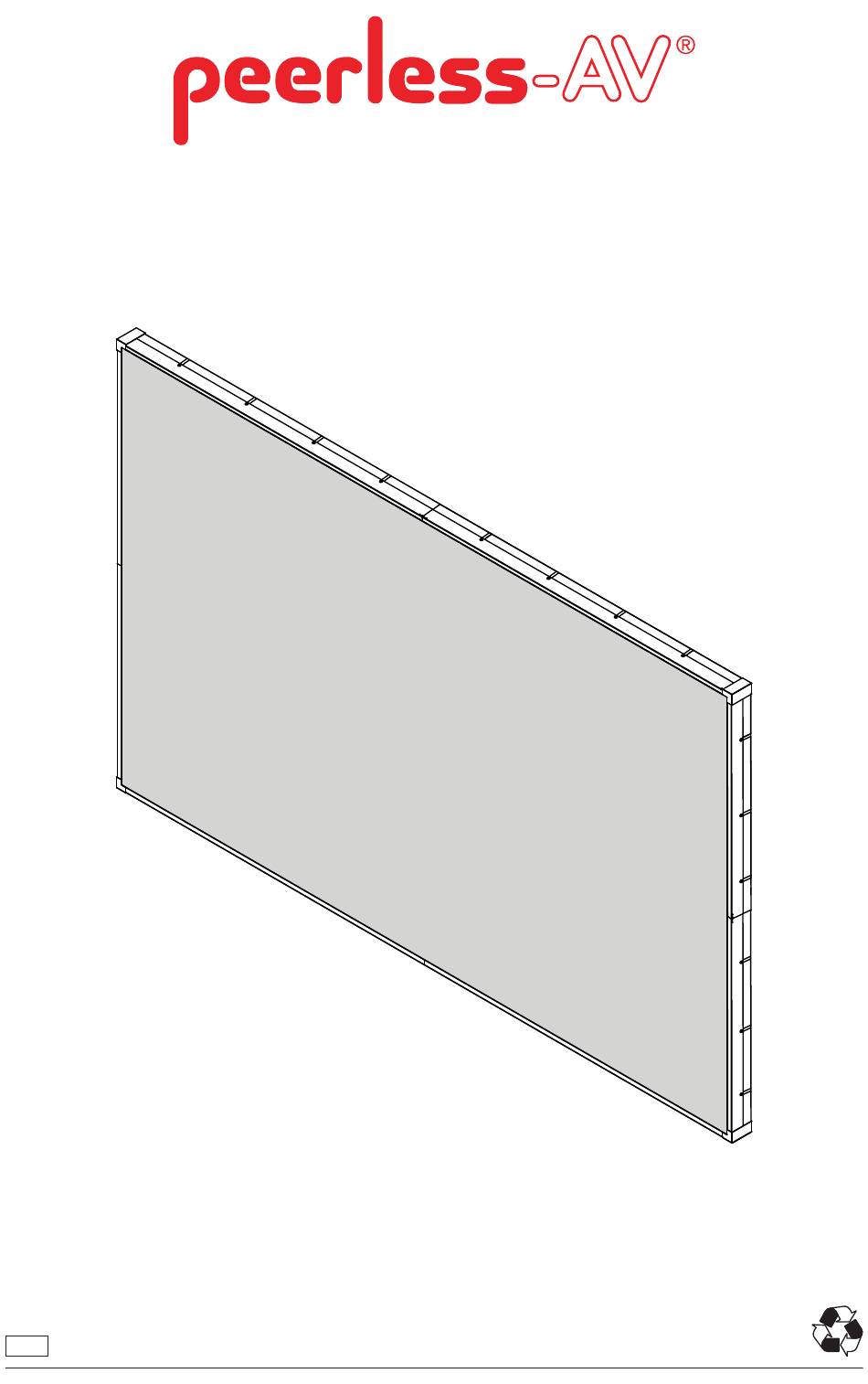

  • Page 1 DS-LEDTK Series *Actual configuration may vary 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 2 WARNING ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware.
  • Page 3 Tools Needed for Assembly. ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. 5/32" (4mm) +1/2 3/8" (10mm) 1/4" (6mm) 2020-07-13 #:146-9054-5 (2022-08-18)

  • Page 4: Parts List

    Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # A solid cover B perforated cover C right solid wall bracket D perforated wall bracket E corner cover assembly 147-1876 F nut bar 147-T1881 G 1/4-20 x 0.375"...
  • Page 5 1/4-20 x 0.375" solid wall bracket socket screw spacer outer cutting jig wall plate shim inner cutting jig #14-10 x 1.75" wood screw M3 x 8mm 1/4-20 x 25mm 1/4-20 x 1/2" vinyl sticker hex nut S (1) #8-18 X 3/4" 4mm allen wrench 2020-07-13...
  • Page 6 Standard steps for solid or perforated trim kits. Steps for Unilumin UpanelS sides with bump-outs. 1a-1 1d-1 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 7 1a-1 Measure video wall dimensions. x" y" 1a-2 x" Mark cutting line on covers and wall brackets. Leave right edge uncut. Leave top edge uncut. y" Uncut edges must form inside seam. 1a-3 Do not join covers until installing covers to the wall. Leave top and right cover edges uncut for proper alignment.
  • Page 8 2a-1 Optional: Clamp or fasten cutting fixture to side of wall bracket or cover being discarded. 1/4" (6mm) R (4) R (4) C,D,T 2a-2 Discard Discard C,D,T 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 9 WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8"...
  • Page 10 3a-3 Install using wood screws provided. Use spacer to set final position of wall bracket. Note orientation. Slot should always point up. Note orientation. Slot should always point up. Spacer oriented so notch faces wall and wall brackets. Maximum 80 in. • lb (9 N.M.). Optional shim for leveling.
  • Page 11 Follow steps for solid or perforated trim kits. 4a-1 4b-1 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 12 4a-1 Do not tighten hardware to solid cover. 1/8" - 1/2" (3mm - 13mm) 4a-2 Place wall plate cover over wall bracket. Slide back until flush with front of video wall. 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 13 4a-3 4a-4 Attach covers with nut bar inside cover. Displays Slide cover back flush with video wall. not shown for clarity. Tighten screws. N (4) 4a-5 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 14 4b-1 Place cover over wall bracket. Slide back until flush with front of video wall. 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 15 4b-2 4b-3 Tighten screws. Attach covers with nut bar inside cover. Displays not shown for clarity. N (4) 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 16 4b-4 4b-5 Place corner cover against Slide corner cutting fixture wall and mark cutting line. into place and clamp onto side of cover being discarded. O (4) 4b-6 Cut excess corner cover off. Do not clamp fixture on wrong side of cutting line. 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 17 4b-7 File sharp edges of corner cover. Remove adhesive backing. 4b-8 4b-9 Clean surfaces before applying VHB. Attach four corner covers with VHB. E (4) 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 18 This page intentionally left blank. 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 19 This page intentionally left blank. 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 20 Alternate steps for Unilumin UpanelS sides with bump-outs 1d-1 To begin installing solid trim on Unilumin UpanelS edges with bump-outs, create guiding line for the top and right side of the unit using spacer provided. Note orientation. Use end without notch. 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 21 1d-2 Measure to the pixel, not bump-outs. x" Measure video wall dimensions. x" y" y" 1d-3 x" Mark cutting line on covers and wall brackets. Leave right edge uncut. Leave top edge uncut. y" Uncut edges must form inside seam. 1d-4 Do not join covers until installing covers to the wall.
  • Page 22 2d-1 Optional: Clamp or fasten cutting fixture to side of wall bracket or cover being discarded. 1/4" (6mm) R (4) R (4) C,D,T 2d-2 Discard Discard C,D,T 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 23 WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8"...
  • Page 24 3d-3 Install using wood screws provided. Do not fully tighten. 3/8" (10mm) Note orientation. Slot should always Note orientation. point up. Slot should always point up. Maximum 80 in. • lb (9 N.M.). Slide wall brackets in slot until they sit 1.25" from display guiding lines. Level and tighten wood screws. Repeat for left side.
  • Page 25 Follow steps for solid or perforated trim kits. 4a-1 4b-1 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 26 4a-1 Do not tighten hardware to solid cover. 1/8" - 1/2" (3mm - 13mm) 4a-2 Place wall plate cover over wall bracket. Slide back until flush with front of video wall. 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 27 4a-3 4a-4 Attach covers with nut bar inside cover. Displays Slide cover back flush with video wall. not shown for clarity. Tighten screws. N (4) 4a-5 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 28 4b-1 Place cover over wall bracket. Slide back until flush with front of video wall. 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 29 4b-2 4b-3 Tighten screws. Attach covers with nut bar inside cover. Displays not shown for clarity. N (4) 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 30 4b-4 4b-5 Place corner cover against Slide corner cutting fixture wall and mark cutting line. into place and clamp onto side of cover being discarded. O (4) 4b-6 Cut excess corner cover off. Do not clamp fixture on wrong side of cutting line. 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 31 4b-7 File sharp edges of corner cover. Remove adhesive backing. 4b-8 4b-9 Clean surfaces before applying VHB. Attach four corner covers with VHB. E (4) 2020-07-13 #:146-9054-5 (2022-08-18)
  • Page 32 Garantia TÜR Garanti̇ Garanzia Záruka www.peerless-av.com/warranty Peerless-AV Peerless-AV Europe Peerless-AV América Latina 2300 White Oak Circle Unit 3 Watford Interchange, Av. de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom General Escobedo N.L., México 66062...
