SCANNER
31 October 2001

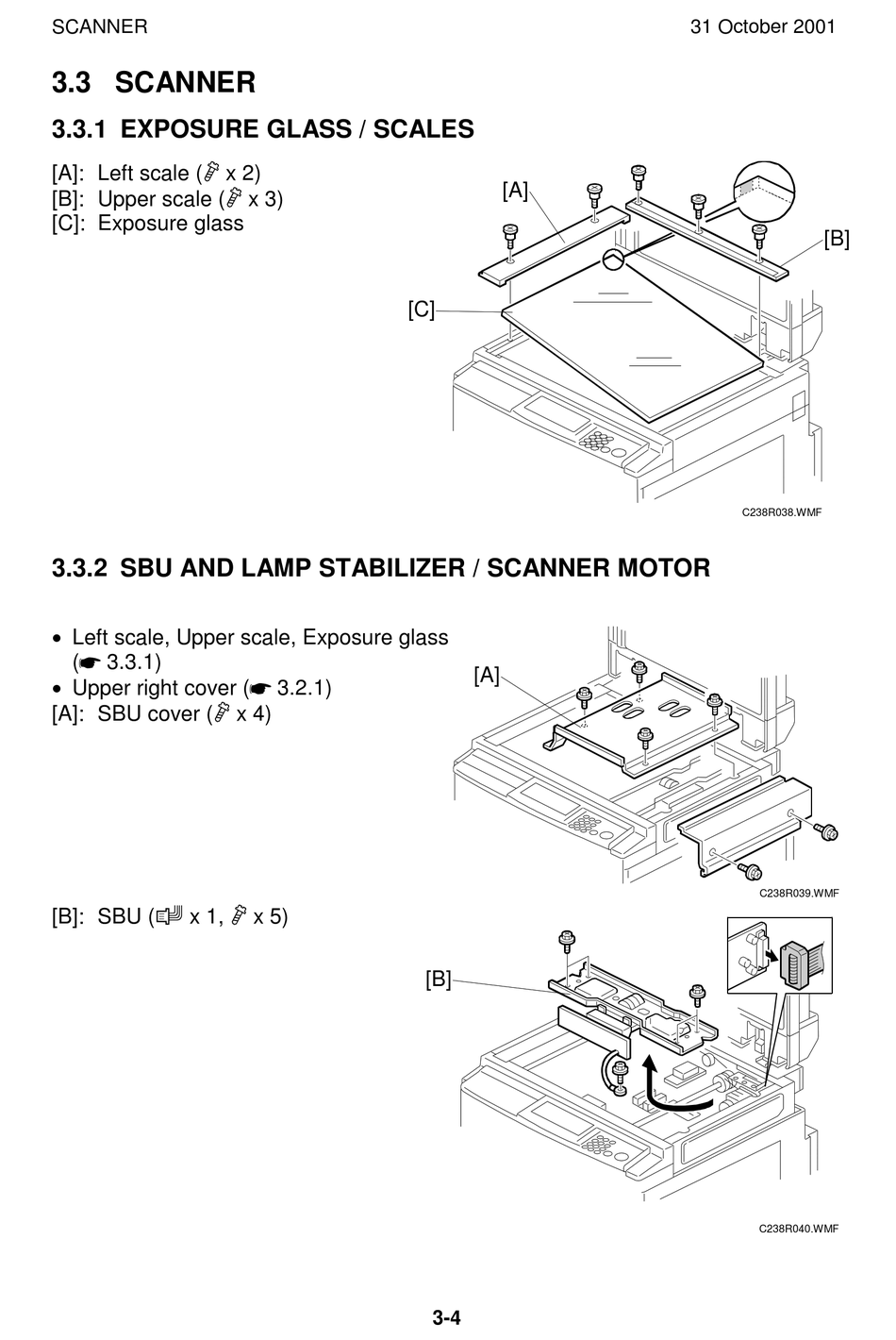

3.3 SCANNER
3.3.1 EXPOSURE GLASS / SCALES
[A]: Left scale (! x 2)
[A]
[B]: Upper scale (! x 3)
[C]: Exposure glass
[B]
[C]
C238R038.WMF
3.3.2 SBU AND LAMP STABILIZER / SCANNER MOTOR
• Left scale, Upper scale, Exposure glass
(☛ 3.3.1)
[A]
• Upper right cover (☛ 3.2.1)
[A]: SBU cover (! x 4)
C238R039.WMF
[B]: SBU (" x 1, ! x 5)
[B]
C238R040.WMF
3-4
