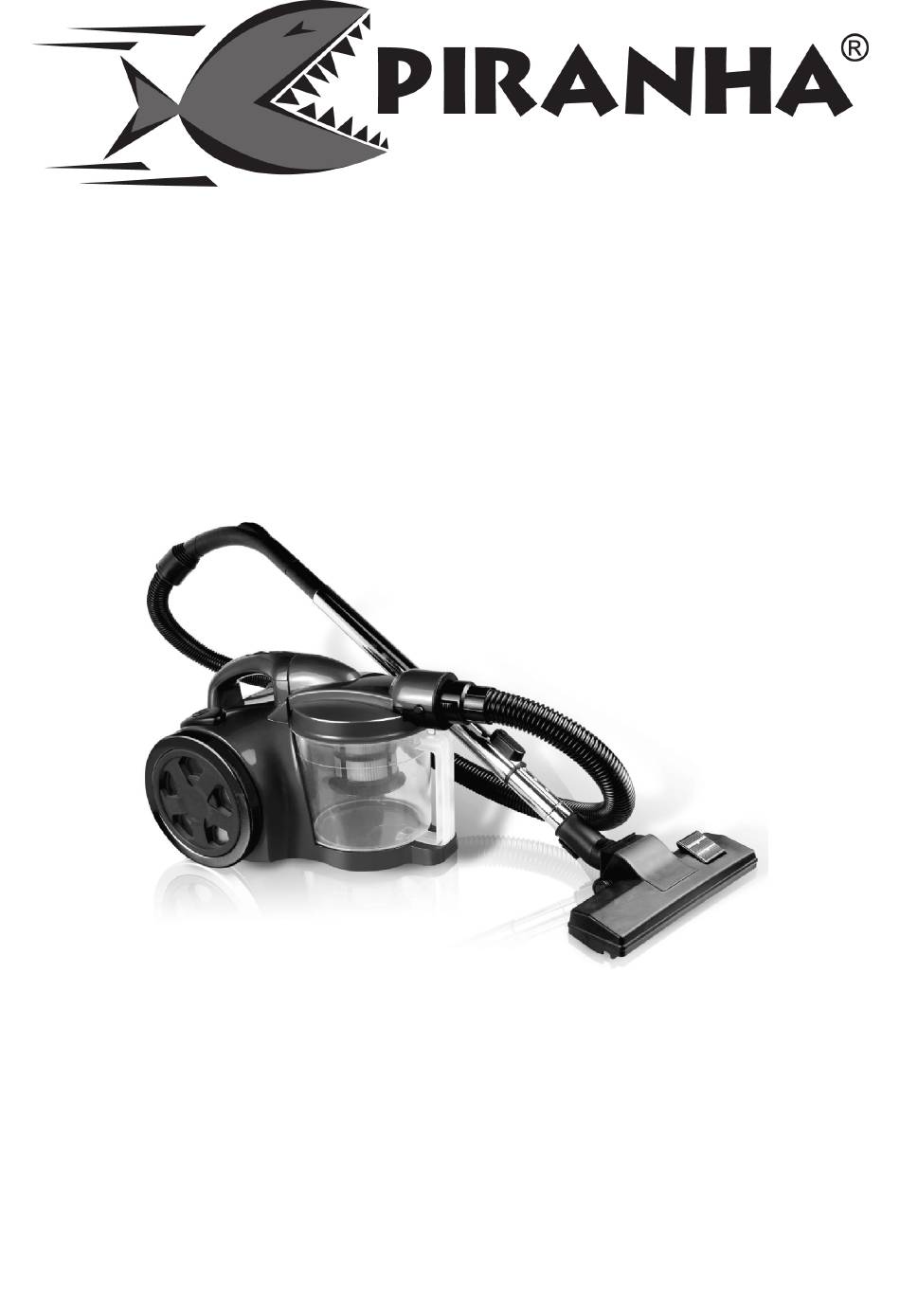

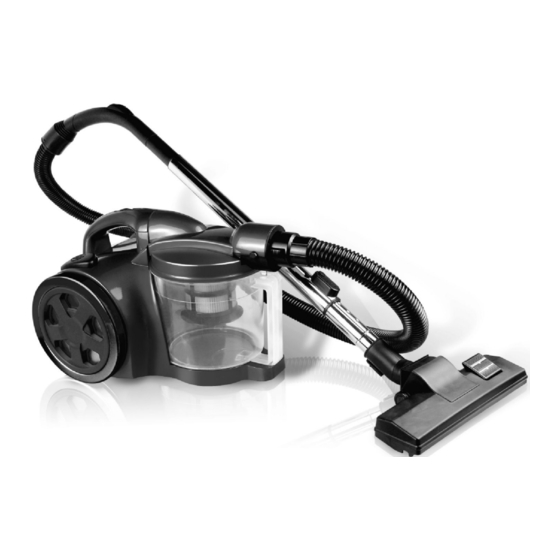

Cyclonic Vacuum Cleaner
Model No.: STX-002-180
Item No.: 900227
220 - 240Va.c. 50Hz
2000W Max
Rev 2
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us
Spike
For Household Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spike STX-002-180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Piranha Spike STX-002-180

Summary of Contents for Piranha Spike STX-002-180

  • Page 1 Spike Cyclonic Vacuum Cleaner For Household Use Only Model No.: STX-002-180 Item No.: 900227 220 - 240Va.c. 50Hz 2000W Max Rev 2 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1800 079 124 for an immediate replacement.

  • Page 2: Table Of Contents

    Warnings .................. 3 Safety Direction ............... 3 Transporting your Vacuum ............ 4 Specification ................4 Schematic Wiring Diagram ............. 4 Components ................5 Assembly Method ..............6 7.1 Fitting Flexible Hose ..............6 7.2 Hose Removal ................6 7.3 Fitting Tube and Accessories........... 6 7.4 Tools ...................

  • Page 3: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 4: Transporting Your Vacuum

    DO NOT use the vacuum cleaner if the power cord, switch or motor is damaged Do not repair by yourself. It must be repaired by the manufacturer, our customer service department or a similarly qualified person. DO NOT use the vacuum cleaner to pick up large objects that are likely to cause damage.

  • Page 5: Components

    Components Carry Handle Air Exhaust Outlet and Filter Hose Coupling / Air inlet Variable Speed Control Dust Canister Cord Rewind Button Wheels Crevice Tool & Holder Power On / Off Button Head Parking Position Page 5 of 14...

  • Page 6: Assembly Method

    Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories Fitting Flexible Hose `Insert the coupling end of the vacuum cleaner hose into the Hose Coupling / Air inlet hole and push inward until it locks into place.

  • Page 7: Tool Holder

    Tool Holder Clip the Crevice Tool into the holder located in the back of the vacuum cleaner. Power and Power Cord • Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply. •...

  • Page 8: Variable Suction Power

    Variable Suction Power • You can adjust the vacuum cleaner power by sliding the Power Control Knob on top of the vacuum cleaner handle. • Make the suction power stronger by sliding it to the MAX position. • Decrease power for cleaning curtains, books, furniture, etc. •...

  • Page 9: Safety Device Operation

    10 Safety Device Operation NOTE: The vacuum has an overheating protection device. It will automatically switch off power to the motor if it overheats. eg. from blocked nozzles, full dust container or unclean filters. If this happens, turn off the vacuum and unplug from power socket, clean blockage and / or filters and allow to rest for at least 45 minutes which should be enough time for the motor to cool down.

  • Page 10: User Maintenance

    Unscrew the dust canister lid and pull apart. Empty the dust out of the canister into the rubbish bin. The inside of the Dust Canister and the filter can be wiped clean or washed in warm soapy water and dried thoroughly.

  • Page 11: Pre Motor Filter

    Wash the Mesh and Main Filter in warm mild soapy water with help from a soft bristle brush, rinse in clean fresh cold water and let dry. DO NOT scrub the filter or place in a dishwasher. DO NOT use a hair drier to dry the filter. NOTE: Never use the vacuum cleaner with a wet or damp filter.

  • Page 12: Exhaust Filter

    12.1.3 Exhaust Filter The exhaust filter is located inside the rear grille. Rear Grille It is recommended to clean this filter every 3 months or sooner if required. To remove the grille, press the latch down then pull the grille out. Wash the Exhaust Filter in warm mild soapy water, rinse in clean fresh cold water and lay out flat to dry.

  • Page 13: Cleaning The Vacuum Cleaner And Components

    12.2 Cleaning the Vacuum Cleaner and Components Do not clean the vacuum cleaner, components or accessories using petrol or any other flammable liquid or solvents, etc. Clean only the outside of the vacuum cleaner. Use only a moist cloth and mild detergent for cleaning the vacuum cleaner, components and accessories.

  • Page 14: Warranty Against Defect

    14 Warranty Against Defect WHAT’S COVERED? 5.2 Our goods come with guarantees that cannot be excluded under Australian Consumer Law. 1.1 H.E. Group Pty Ltd (“us” “we” or “our”) You are entitled to a replacement or refund for warrants this good for a full replacement or a major failure and compensation for any other refund for a period of twelve months from reasonably foreseeable loss or damage.
