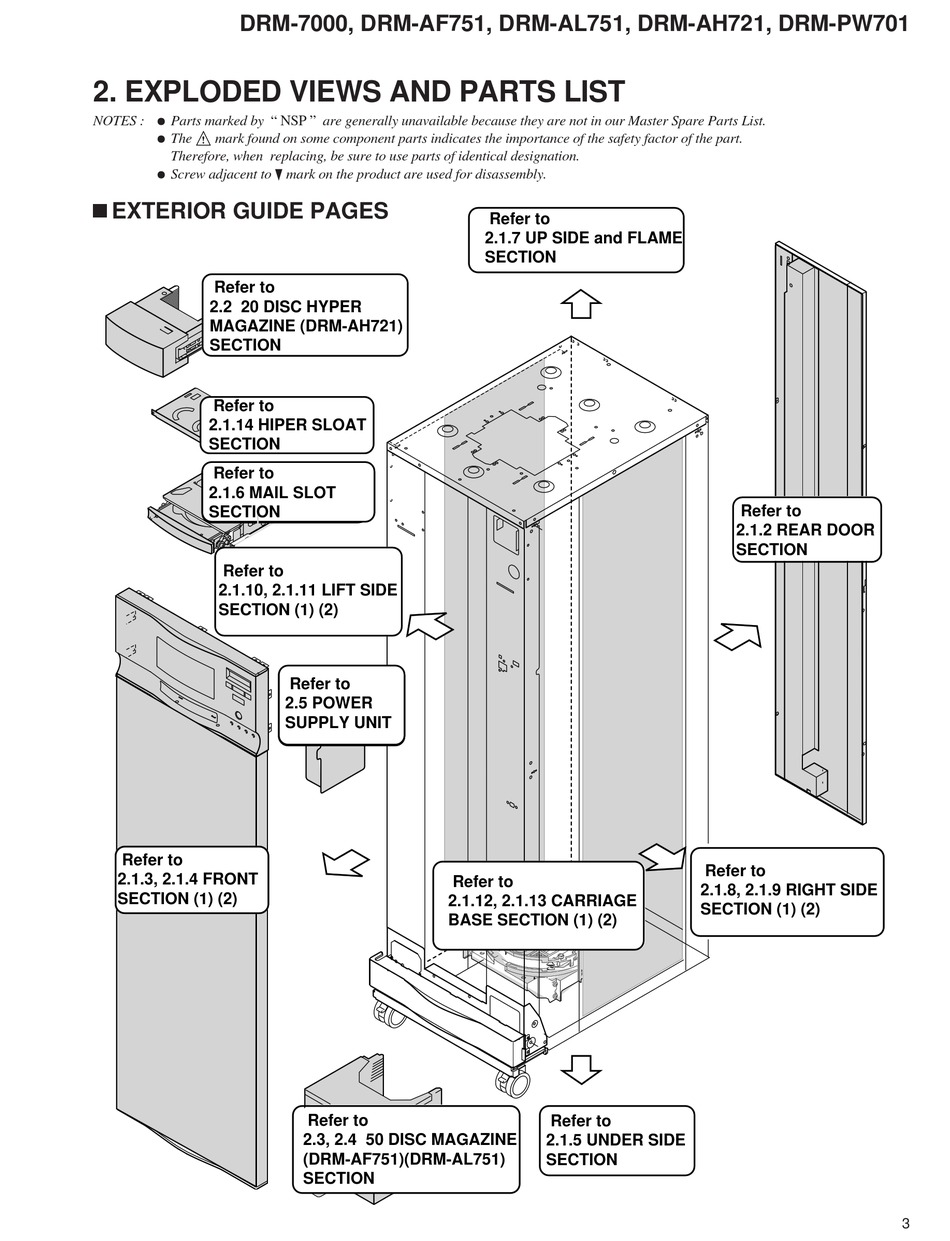

2. EXPLODED VIEWS AND PARTS LIST

NOTES : ÷ Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
÷ The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
÷ Screw adjacent to
EXTERIOR GUIDE PAGES
Refer to
2.2 20 DISC HYPER
MAGAZINE (DRM-AH721)
SECTION
Refer to
2.1.14 HIPER SLOAT
SECTION
Refer to
2.1.6 MAIL SLOT
SECTION
Refer to
2.1.10, 2.1.11 LIFT SIDE
SECTION (1) (2)
Refer to
2.1.3, 2.1.4 FRONT
SECTION (1) (2)
∞
mark on the product are used for disassembly.
Refer to
2.5 POWER
SUPPLY UNIT
Refer to
2.1.12, 2.1.13 CARRIAGE
BASE SECTION (1) (2)
Refer to
2.3, 2.4 50 DISC MAGAZINE
(DRM-AF751)(DRM-AL751)
SECTION
Refer to
2.1.7 UP SIDE and FLAME
SECTION
Refer to
2.1.5 UNDER SIDE
SECTION
Refer to
2.1.2 REAR DOOR
SECTION
Refer to
2.1.8, 2.1.9 RIGHT SIDE
SECTION (1) (2)
3
