CEM521 COM Express

Type 6 Module



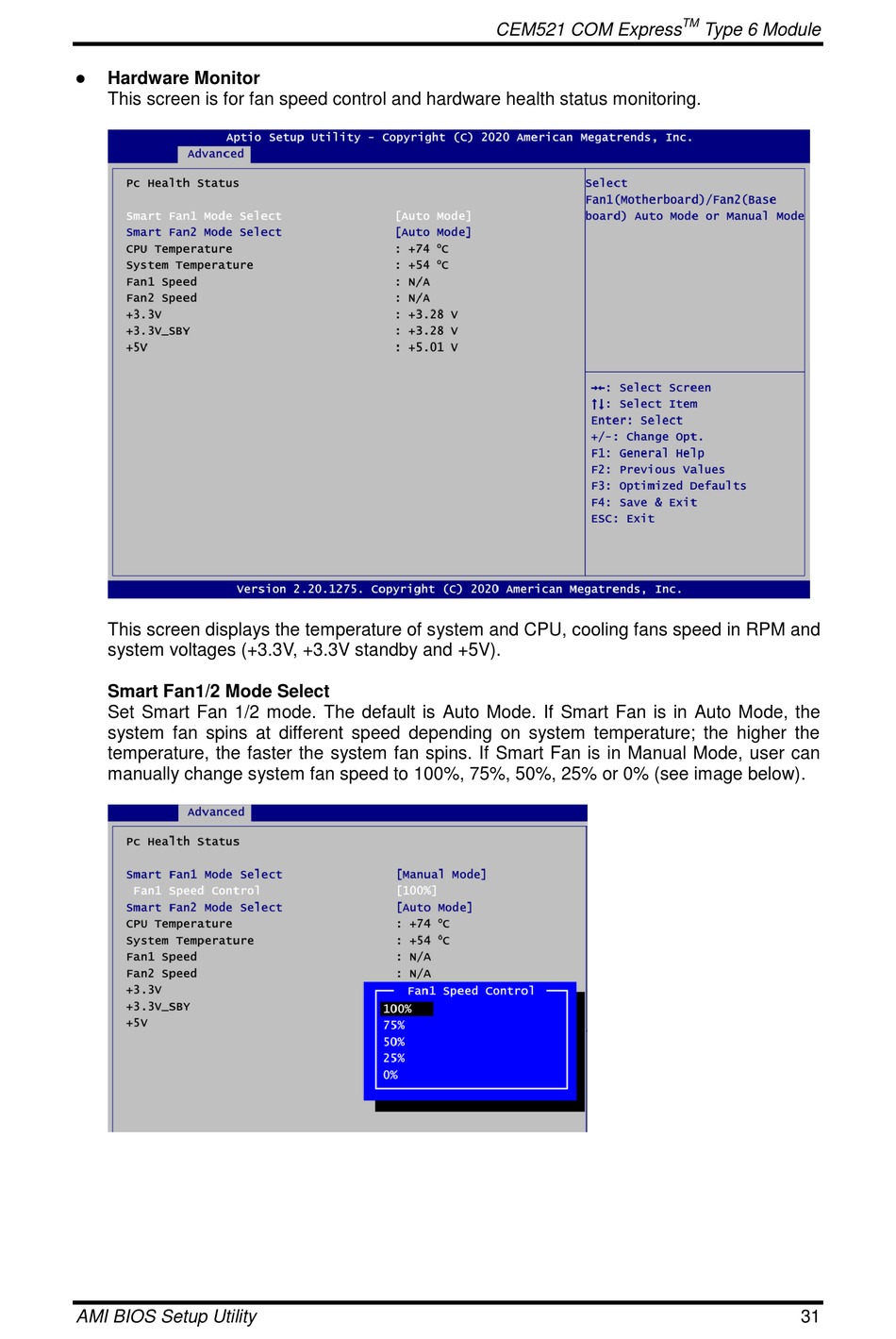

Hardware Monitor

This screen is for fan speed control and hardware health status monitoring.

This screen displays the temperature of system and CPU, cooling fans speed in RPM and

system voltages (+3.3V, +3.3V standby and +5V).

Smart Fan1/2 Mode Select

Set Smart Fan 1/2 mode. The default is Auto Mode. If Smart Fan is in Auto Mode, the

system fan spins at different speed depending on system temperature; the higher the

temperature, the faster the system fan spins. If Smart Fan is in Manual Mode, user can

manually change system fan speed to 100%, 75%, 50%, 25% or 0% (see image below).

AMI BIOS Setup Utility
