  • Page 1 IP Office 20DS Unit 40DHB0002UKAK Issue 2 (08/11/2001)
  • Page 2 Page 2 - Contents Contents Introduction ...............3 Introduction to the 20DS .............. 3 Setting Up the 20DS ..........4 The Power Supply Unit ..............4 Associating the 20DS ..............4 Testing the Keys & Lamps............4 Programming the DSS Keys............5 To Program a DSS for an Extension, Group or Line ..

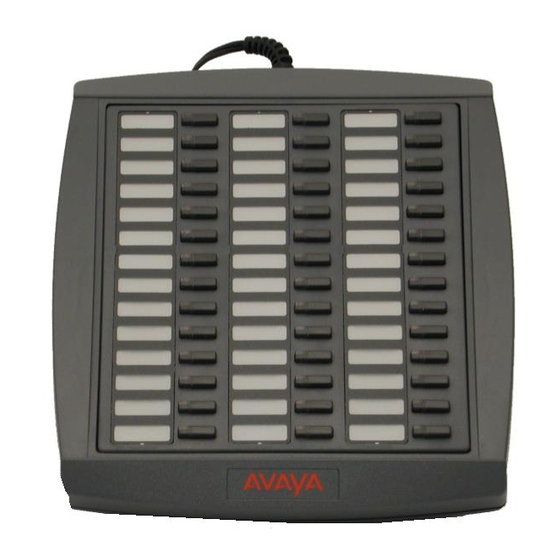

  • Page 3 Introduction Introduction to the 20DS This guide is for the 20DS used on an IP Office telephone system. The 20DS works in association with your 2030, 2050 or 20CC display phone to provide you with an additional 42 DSS keys.
  • Page 4 3. Press PROGRAM again to end the test. Testing the Keys & Lamps The 20DS has a test cycle that checks all it's lamps and keys. You can do this without affecting the unit's programming (i.e. your phone and DSS key settings).
  • Page 5 Each key can also be used be used to store a personal speed dial, extending the phones range of personal speed dials by 42 per 20DS unit. The programming is done through the 2030 or 2050 telephone associated with the 20DS.
  • Page 6 3. Bow the label cover to slip the tabs on the top edge into their slots. Label Template A template exists for creating labels for the DSS keys on the 20DS and other phones on the 20 series that have DSS keys. The template file works with Microsoft Word.
  • Page 7 Power supply unit ....4 Template ......6 Setup ........5 Programming the keys ..5 Word for Windows ....6 PSU ........4 Key label ......6 Removing the label cover ..6 Label ........6 40DHB0002UKAK Issue 2 (08/11/2001) IP Office 20DS Unit...
  • Page 8 The publication of information in this document does not imply freedom from patent or other protective rights of Avaya, or others. Intellectual property related to this product (including trademarks) and registered to Lucent Technologies has been transferred or licensed to Avaya.
