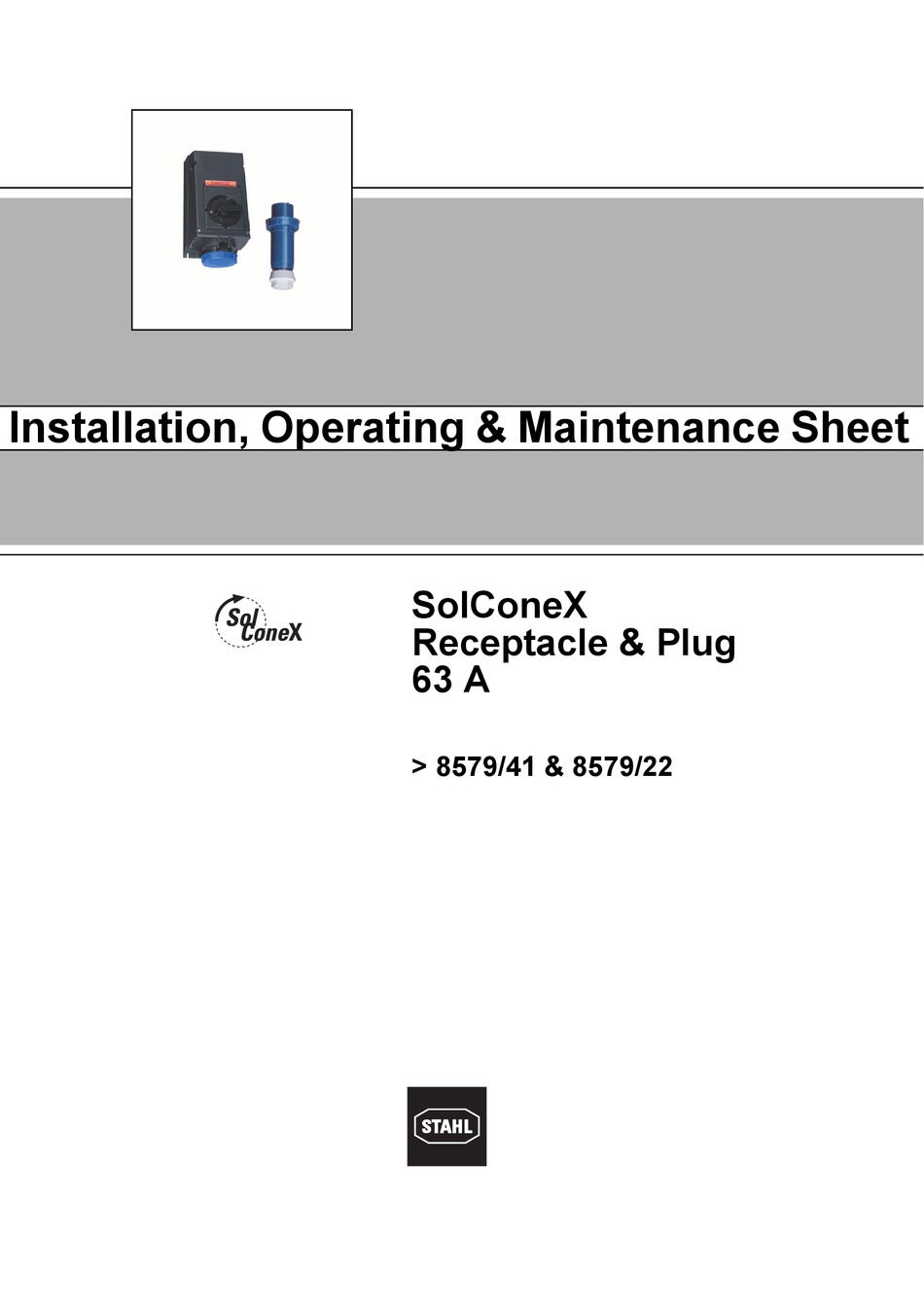

- Page 1 Installation, Operating & Maintenance Sheet SolConeX Receptacle & Plug 63 A > 8579/41 & 8579/22...
- Page 2 Transport and Storage ..................4 Receptacle Installation ..................4 Receptacle Wiring ....................5 Plug Wiring ......................5 Commissioning ......................7 Maintenance ......................7 Disposal .........................7 General Information 2.1 Manufacturer R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Tel.: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com...

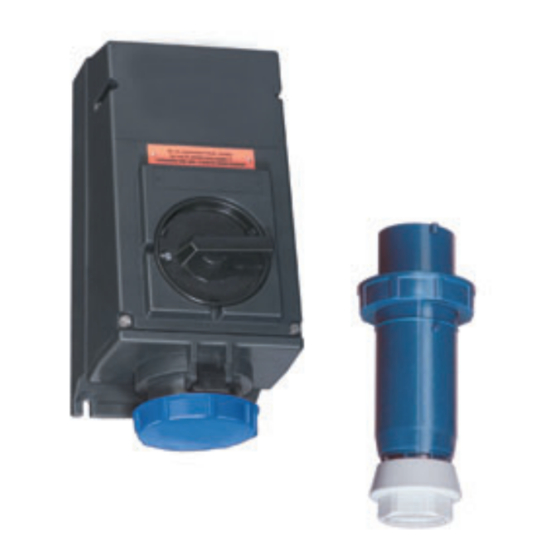

- Page 3 Application Application The receptacle 8579/41 and plug 8579/22 are explosion protected equipment, certified for use in hazardous (classified) locations. Safety Instructions The receptacles and plugs must be used only for their intended purpose. Incorrect usage invalidates our warranty provision. WARNING Installation and maintenance of this product should only be performed by skilled ...
- Page 4 Transport and Storage Certificates NEC / CEC FM File No. 0R6A2.AX IECEx IECEx PTB 06.0020 ATEX PTB 01 ATEX 1150 Transport and Storage Transport and storage are only permitted in the original packing. Receptacle Installation 8.1 Enclosure mounting Securely mount the receptacle in a vertical position as illustrated, using three 5/16″...
- Page 5 Plug Wiring 10 Plug Wiring 1 5/8 14967E00 Figure 1. 10.1 Cord type Select a flexible cord with copper conductors of the appropriate insulation, ampacity and + 90 °C temperature rating. For installations in the U.S., refer to the National Electrical Code Articles 400-4, 400-5A, 400-5B, 501-11, 502-12 and 503-10.
- Page 6 Commissioning 10.6 Connection to terminals and flip the clamp to the side. Attach the Open the strain relief clamp screws ⑩ . Terminal markings correspond to receptacle ⑪ leads to the appropriate terminals terminal markings. WARNING The Equipment Ground (green wire) is to be connected to the terminal marked with the Ground (Earth) symbol 10.7 Strain relief ⑩...
