2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427
Bracket
Front
Small Clamp x 10
Cleaning:
- Do not use window cleaning fluids (Windex, 409, etc) or any solvents (gasoline, denatured alcohol, acetone, etc).
- Never use abrasive cleaners, abrasive pads, or gritty cloths.
- Never use razor blades, scrapers, sqeegees, brushes, etc.
1. T houroughly rinse Roof to float off dirt and mud.
2. U sing a soft cloth, or microfiber cloth, clean Roof with warm water and a gentle detergent. Baby shampoo or hand washing
soap are recommended.
3. T o prevent water spots, use a chamois to blot Roof dry.
Need help with your installation?
sales@superatv.com
1-855-743-3427
®
© 2017 SuperATV.com
. All Rights Reserved.
Large Clamp x 4
www.superatv.com
8:00am - 9:00pm EST M-Th
8:00am - 7:00pm EST Friday
9:00am - 2:00pm EST Saturday

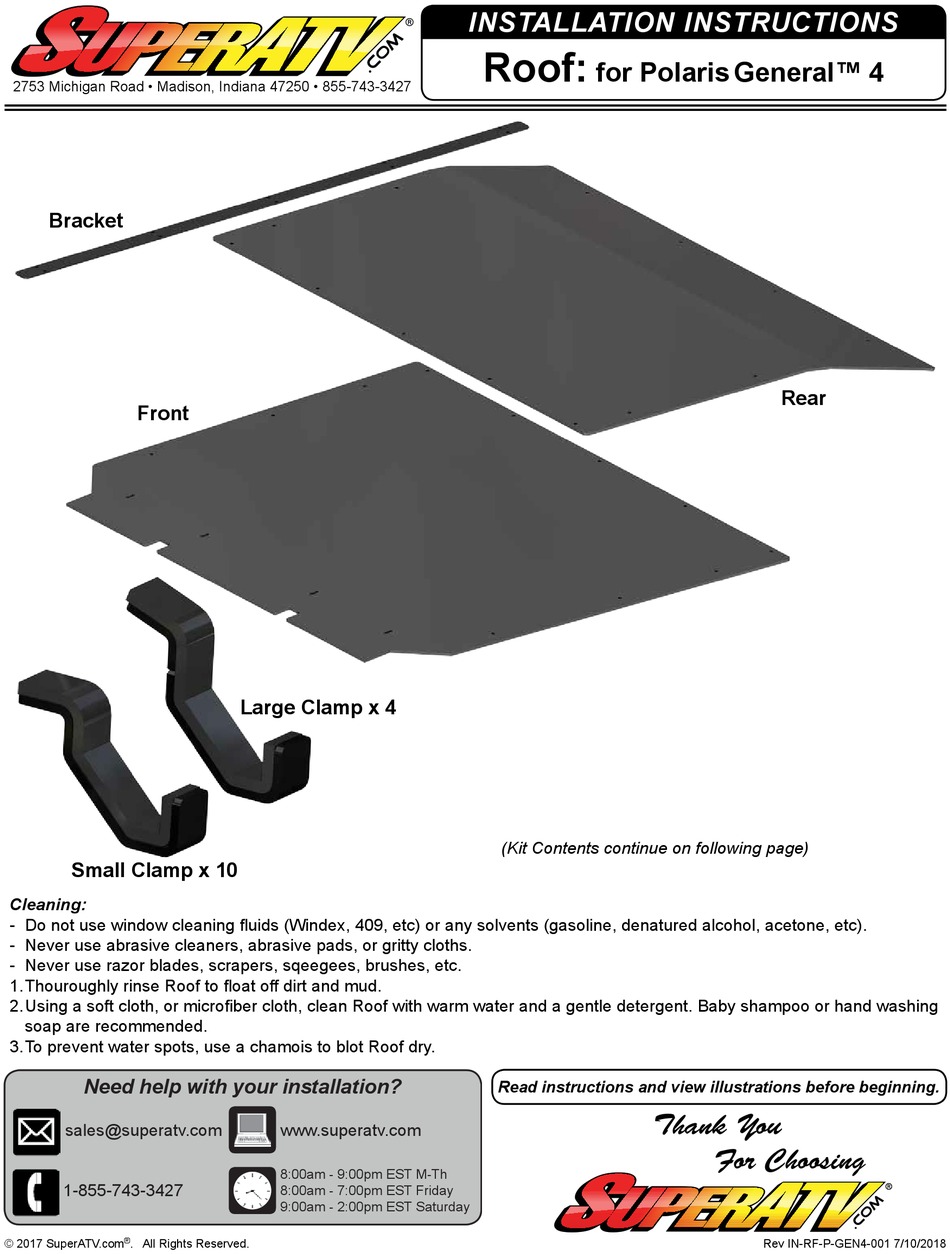

INSTALLATION INSTRUCTIONS
Roof:

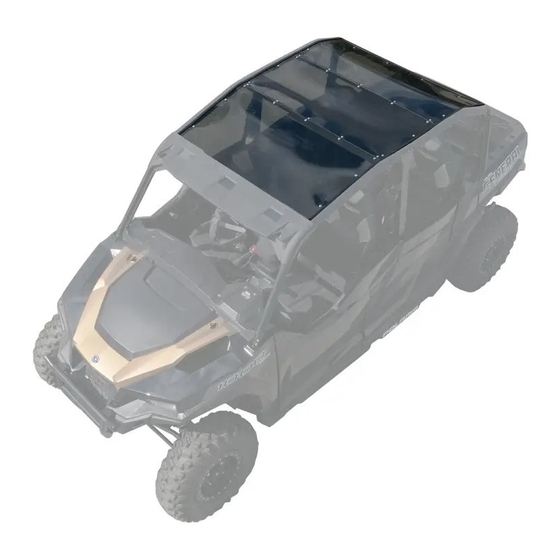

for Polaris General™ 4
(Kit Contents continue on following page)
Read instructions and view illustrations before beginning.
Rear
Thank You
For Choosing
Rev IN-RF-P-GEN4-001 7/10/2018
Advertisement
Table of Contents
Related Manuals for SuperATV RF-P-GEN4-001
Summary of Contents for SuperATV RF-P-GEN4-001
- Page 1 Read instructions and view illustrations before beginning. Thank You sales@superatv.com www.superatv.com For Choosing 8:00am - 9:00pm EST M-Th 1-855-743-3427 8:00am - 7:00pm EST Friday 9:00am - 2:00pm EST Saturday ® © 2017 SuperATV.com . All Rights Reserved. Rev IN-RF-P-GEN4-001 7/10/2018...
- Page 2 Rubber must face Roof when installing Sealing Washer M6 Sealing Washer Use hand tools only when assembling. Gasket Seal Do not use power tools. When installing components, do not tighten any hardware completely unless noted. Flat Seal remove hardware from Visor Panel IN-RF-P-GEN4-001...
- Page 3 - Install Seals to Roof halfs as shown. Soak in hot water before cutting or installing to increase flexibility. Bulb portion of Seal to always Seal face towards vehicle Seal Seal Front Seal Seal Rear Seal - Install one continuous piece of Seal around Roof as shown. IN-RF-P-GEN4-001...
- Page 4 - Install Small Clamps to Front with hardware shown. Use hardware shown - Install Bracket to Front with hardware shown. when installing. M6x 25mm Sealing Washer Front M6 Nut Flat Seal Bracket Small Clamp x 3 (driver side) (per side) - Install Gasket to inside of Visor Panel as shown. Gasket IN-RF-P-GEN4-001...
- Page 5 - Place Front on machine and secure Small Clamps around Frame as shown. - Do not tighten. (driver side) Front IN-RF-P-GEN4-001...
- Page 7 - Secure Small and Large Clamps, on Rear, to Frame. Do not tighten completely. Rear (driver side) - Reinstall Visor Panel with stock hardware. Front Visor Panel (driver side) Align Roof to machine and tighten all hardware completely IN-RF-P-GEN4-001...
- Page 8 The Buyer is also responsible to obey all ® applicable federal, state, and local laws and ordinances when operating his/her vehicle while using this product, and the Buyer agrees to hold SuperATV harmless from any ®...
