740B Clifty Drive • Madison, Indiana 47250 • 812-574-7777
Item Description
A
Rear Trailing Arm, Right
B
Rear Trailing Arm, Left
C
Brake Line Clips
D
Bearings
E
Spacers
C
Read instructions and view illustrations before beginning.
Need help with your installation?
sales@superatv.com
1-812-574-7777
Thank You
© 2014 SuperATV.com All Rights Reserved.
(Left)
D
E
www.superatv.com
8:00am - 9:00pm EST M-Th
8:00am - 7:00pm EST Friday
9:00am - 2:00pm EST Saturday
For Choosing

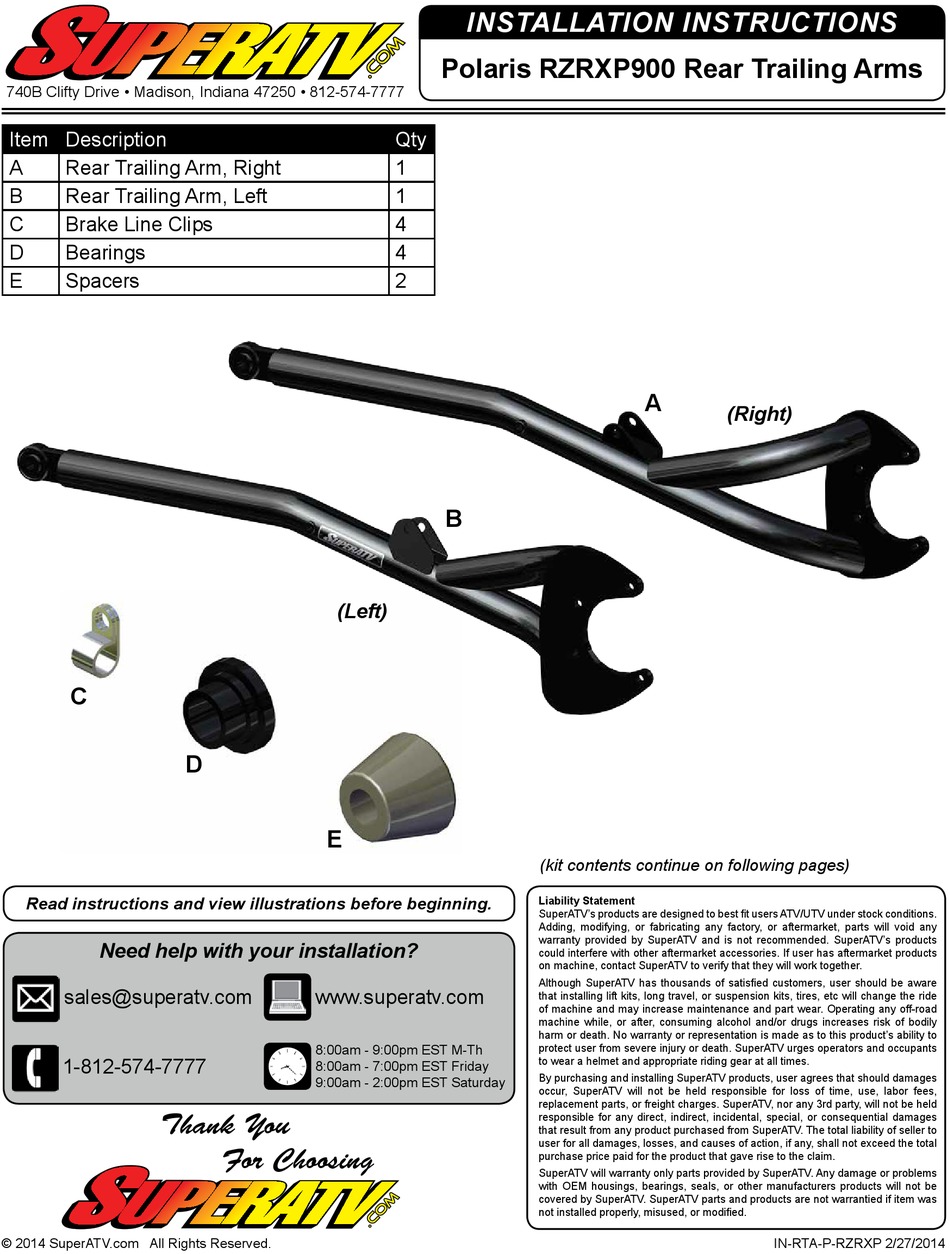

INSTALLATION INSTRUCTIONS
Polaris RZRXP900 Rear Trailing Arms
Qty
1
1
4
4
2
B
(kit contents continue on following pages)
Liability Statement
SuperATV's products are designed to best fit users ATV/UTV under stock conditions.
Adding, modifying, or fabricating any factory, or aftermarket, parts will void any
warranty provided by SuperATV and is not recommended. SuperATV's products
could interfere with other aftermarket accessories. If user has aftermarket products
on machine, contact SuperATV to verify that they will work together.
Although SuperATV has thousands of satisfied customers, user should be aware
that installing lift kits, long travel, or suspension kits, tires, etc will change the ride
of machine and may increase maintenance and part wear. Operating any off-road
machine while, or after, consuming alcohol and/or drugs increases risk of bodily
harm or death. No warranty or representation is made as to this product's ability to
protect user from severe injury or death. SuperATV urges operators and occupants
to wear a helmet and appropriate riding gear at all times.
By purchasing and installing SuperATV products, user agrees that should damages
occur, SuperATV will not be held responsible for loss of time, use, labor fees,
replacement parts, or freight charges. SuperATV, nor any 3rd party, will not be held
responsible for any direct, indirect, incidental, special, or consequential damages
that result from any product purchased from SuperATV. The total liability of seller to
user for all damages, losses, and causes of action, if any, shall not exceed the total
purchase price paid for the product that gave rise to the claim.
SuperATV will warranty only parts provided by SuperATV. Any damage or problems
with OEM housings, bearings, seals, or other manufacturers products will not be
covered by SuperATV. SuperATV parts and products are not warrantied if item was
not installed properly, misused, or modified.
A
(Right)
IN-RTA-P-RZRXP 2/27/2014
