Side Tube Weldments (2pcs)
Tube Joint
Covers (4pcs)
Wired Winch
Remote
M8x20
M8x25
Hex Bolt
Hex Bolt
(6pcs)
(4pcs)
©2024 Superatv.com. All Rights Reserved
Rack Weldment Assembly
Channel Tube
Mount Brackets
Clamps (2pcs)
Winch Electrical
Box
Winch Electrical
Connector
M8 Split
M12x25
Washer
Hex Flanged
(10pcs)

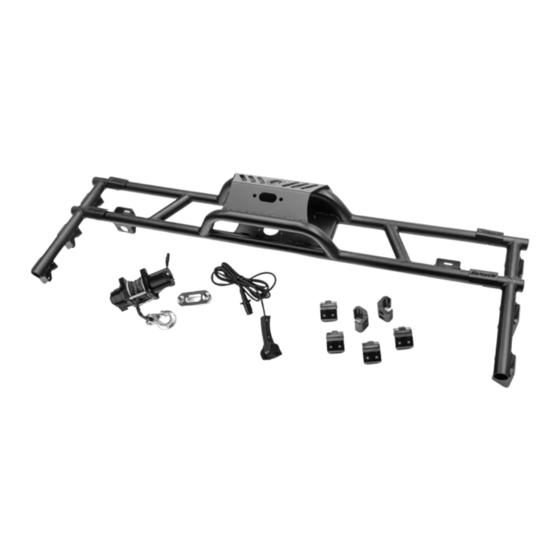

Game Loader Rack: GLR-CA-DEF-001
Bracket Spacers
(2pcs)
M12 Flat
Washer
(4pcs)
(4pcs)
Strap
Winch
Kit
Winch
(2pcs)
Hook
MP280
Connector
M12 Split
Washer
(4pcs)
IN-GLR-CA-DEF-001_Rev-A
Winch
Fairlead
Round
End Plug
(6pcs)
1
4-29-24
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SuperATV Game Loader Rack GLR-CA-DEF-001
Summary of Contents for SuperATV Game Loader Rack GLR-CA-DEF-001

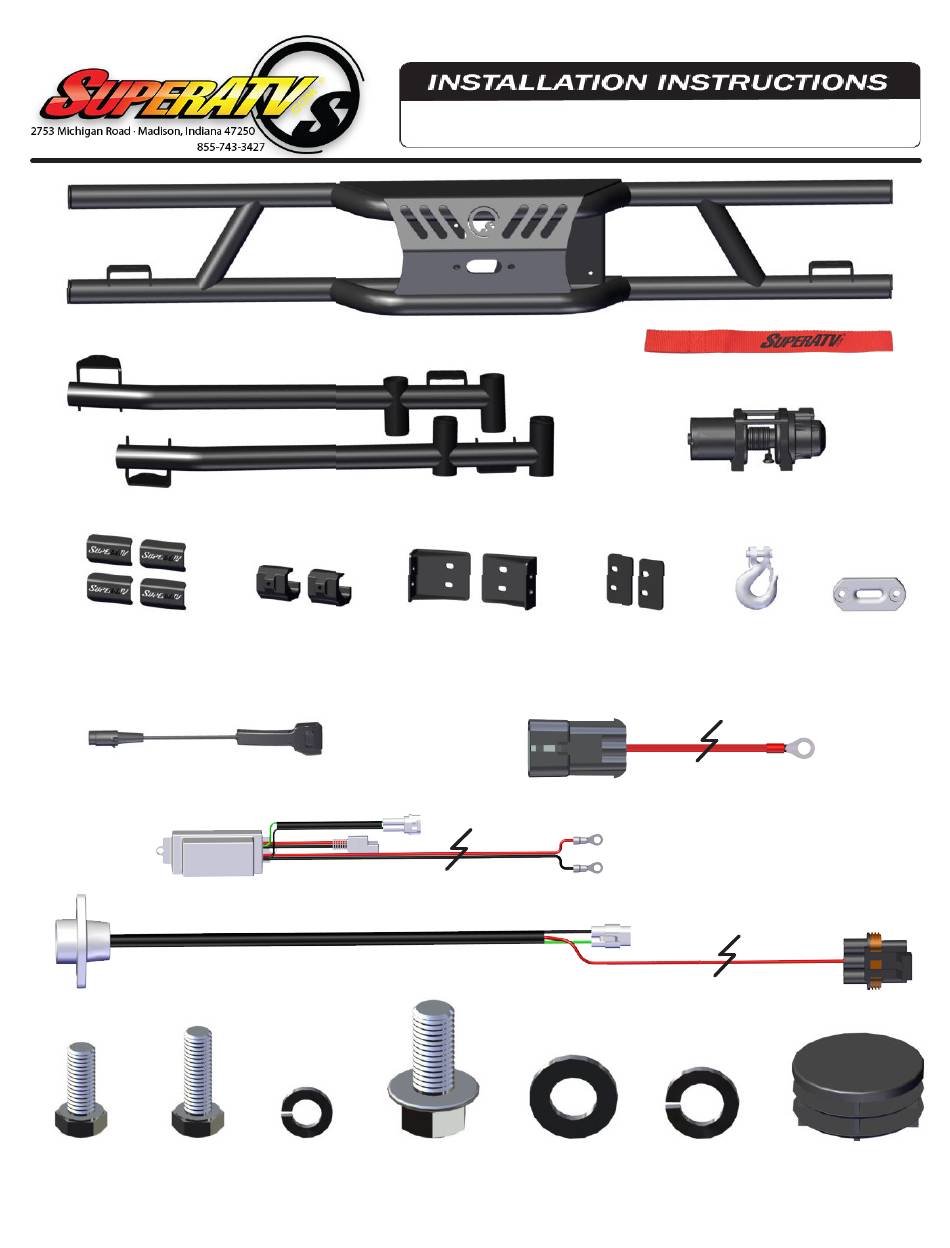

- Page 1 Winch Electrical Winch Electrical Connector M8x20 M8x25 M8 Split M12x25 M12 Flat M12 Split Round Hex Bolt Hex Bolt Washer Hex Flanged Washer Washer End Plug (6pcs) (4pcs) (10pcs) (4pcs) (4pcs) (4pcs) (6pcs) ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 2 Poly Roof, giving it a little clearance. If you don’t have a Poly Roof, then the spacers are not needed. See Fig.2d-e Below. Bracket Spacers Bracket Spacers Spacer Between Spacer Between Bracket & Poly Roof Bracket & Poly Roof Fig.2d Fig.2e ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 3 NOTE: Be sure to leave the clamp a little Mount Hole Mount Hole loose so you can adjust it to align with the Facing Out Facing Out holes in the Side Tube Weldments in the next steps. Fig.4 ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 4 M8 20 Hex Clamp Clamp Bolt and M8 Bolt and M8 Split Washer Split Washer M8 20 Hex M8 20 Hex Bolt and M8 Bolt and M8 Split Washer Split Washer Fig.6a Fig.6b ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 5 M12x25 Hex Tube Joint Tube Joint Bolts & M12 Bolts & M12 Covers Covers Flat Washers Flat Washers (Back Side View) Install End Plugs Install End Plugs In Each End In Each End Fig.7 ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 6 M5 Nylock M5x20 Hex Nut (2pcs) Socket Nut (6pcs) Flanged Nut (2pcs) Flanged Screw (2pcs) Screw (6pcs) Screw (2pcs) Rack Rack Winch Winch M6 x 20mm 2 each M6 Nut M6 x 20mm ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 7 Winch to Box connect Winch to Box - Install Fairlead, Hook, and Hand Strap with hardware shown; tighten. 2 each Hand Strap Hand Strap M10 x 30mm Hook Hook Fairlead Fairlead M10 Nut ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 8 - Install Connector to Rack with hardware shown; tighten. Rack Connector 2 each M5 Nut M5 x 20mm Use hardware shown if SuperATV Cube Lights are being installed. M8 x 20mm M8 Nut route to Battery and Terminal Block area ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 9 Cage as needed secure wires to Cage as needed (passenger) (passenger) ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 10 Connect power wires from Box to Battery. Connect power wires from Box to Battery. route to Terminal Block area; route to Terminal Block area; see following page see following page (passenger) (passenger) ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 11 Connect Adapter to Terminal Block here. Connect Adapter to Terminal Block here. Adapter Adapter (passenger) (passenger) connect Adapter to Connector connect Adapter to Connector ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 12 Pulley/Snatch Block (not included): Doubles pulling power of Winch or changes pulling direction without damaging Synthetic Rope. When pulling over 70% of rated line pull, it is recommended to use double line and snatch block. Free Spooling Clutch ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
-
Page 13: Safety Precautions
- Avoid “shock loads” by using control switch intermittently to take up slack in Synthetic Rope. “Shock loads” can exceed rated capacity for Synthetic Rope and Winch Drum. WARNING - Apply blocks to wheels of vehicle when on an incline. ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24... - Page 14 Winch Drum by hand with Clutch disengaged. Keep hands clear of Fairlead and Winch Drum while Winch is under power. Rope Exiting From Under Side cutaway view of Winch Drum Side Cutaway View Of Winch ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
-
Page 15: General Tips For Safe Operation
(1) minute when at or near rated load. If Motor becomes hot to touch, stop winching immediately. Allow Motor to cool before resuming. - Never disengage Free Spooling Clutch when a load is on Winch. ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24... - Page 16 Winch Winch Winch Winch To absorb energy in event of Synthetic Rope failure, place a blanket or jacket over Synthetic Rope approximately 5ft - 6ft from Clevis Hook before pulling a heavy load. ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
- Page 17 16. Set Free Spooling Clutch to “IN” position and rewind Synthetic Rope. Keep hands clear of Winch Drum and components. Any material already on Winch Drum should be spooled tightly and neatly. Draw out and re-spool if necessary. 17. Secure Hook Strap and Clevis Hook. ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
-
Page 18: Maintenance
Need help with your installation? sales@superatv.com www.superatv.com 8:00am - 9:00pm EST M-Th 1-855-743-3427 8:00am - 7:00pm EST Friday 9:00am - 2:00pm EST Saturday Like SuperATV on Facebook to keep up to date on new products! ©2024 Superatv.com. All Rights Reserved IN-GLR-CA-DEF-001_Rev-A 4-29-24...
