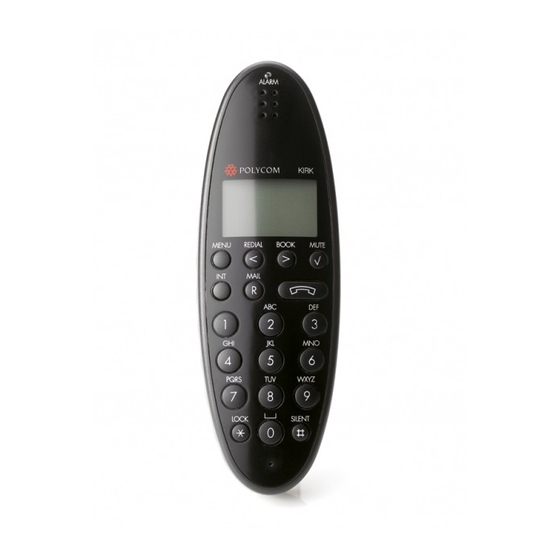

Spectralink 74xx manual
A. General information
1. Introduction
Welcome!
This manual helps you to optimize the usage of the DECT telephone in combination with the PBX.
Please use this manual at initial operation. Some features differ from the features described in the
manufacturer's documentation.
We wish you success and joy in working with your new DECT telephone and this manual!
Subject to alterations
Version 1 / 02.2016 (EN)
2. Used icons
Type
Icon
Notice
Hint
Action
Result of an
action
List
B. Initial Operation
1. Requirements
Using this Spectralink IP telephone with your telephone system merely requires a sound broadband
connection.
The base is solely operated with Power over Ethernet (PoE). That means if your Ethernet connection
Description
Important information and notices that you
have to pay attention to.
Useful hints that provide additional
information.
-
is marked with a dash
⇒
is marked with an arrow
•
is marked with a bullet point
1
Advertisement
Table of Contents
Related Manuals for SpectraLink 74 Series
Summary of Contents for SpectraLink 74 Series
- Page 1 B. Initial Operation 1. Requirements Using this Spectralink IP telephone with your telephone system merely requires a sound broadband connection. The base is solely operated with Power over Ethernet (PoE). That means if your Ethernet connection...
-
Page 2: Adding An Extension
does not support PoE, you also need a PoE power supply for your base. 2. Adding an extension All telephones sent to you are preconfigured and connected to the telephone system. If you prefer to configure the devices yourself, please refer to the administration portal manual. -
Page 3: Speed Dial
Rechargeable battery The battery is typically already inserted in the handset. To remove the battery: Unscrew the screw on the back of the handset. Remove the screw as well as the small cover by the screw. Also use the screwdriver to remove the battery cover. Insert the screwdriver into the small hole under the screw cover and use the screwdriver to push the battery cover upward (see image). -
Page 4: Placing Calls
Now, select the speed dial key you would like to use (0 to 9) and confirm with (MUTE). Now, enter the telephone number you would like to assign to this speed dial and confirm with (MUTE). The speed dial is now programmed. To use the speed dial, you only need to change one more setting: Open the main menu by pressing "MENU". -
Page 5: Edit Settings
Muting ring tone Press “MENU”, then # to mute the ring tone. Hold After answering a call, press R. The call is now placed on hold. To continue the call, press R again. Toggle calls Press R to answer another call while in a call. The first call is automatically placed on hold. To return to the first call press R again. - Page 6 Change ring tone Open the main menu by pressing "MENU". Scroll to “PROFILE SELECTION", then press (MUTE). Scroll to “ADVANCED CONFIG.RING TONE TYPE" and press (MUTE). Select the desired ring tone. Press (MUTE) to save the setting. 6. Adding phone book contacts Use the handset keypad to enter the telephone number you would like to add.
-
Page 7: Call Forwarding
"3" To record the name The following applies to the recording of all announcements: "1" Accept "*" Help "2" Replay "#" End "3" Rerecord "1" – Play messages "3" Previous message "8" Save message in a folder "*" Help or (during message "4"... - Page 8 Delayed call forwarding (no answer) Call forwarding condition: You do not answer the incoming call within a defined time period (timeout). The timeout can be set to 5, 10, 15 or 20 seconds. Where should the incoming call be forwarded after the specified time has elapsed? The caller receives a call waiting signal and is then forwarded to the defined destination.
- Page 9 2. Spectralink repeater The Spectralink Repeater extends the coverage of your Spectralink solution. While the Repeater does not increase the number of data traffic channels, it does provide for a greater physical spread of the channels and therefore, extends the range covered by the bases.
- Page 10 Machtlfinger Str. 7 81379 München NFON AG Tel.: + 49 89 45 3000 www.nfon.com At nfon.com under Service you can find an overview of all documentation, downloads, blogs and portals as well as help pages and further information. nfon.com For any feedback to documentation, please contact redaktion(at)nfon(dot)com The home page of the service site contains various links to manuals, brief portal.nfon.com...
- Page 11 Support for customers in the Netherlands: portal.nfon.com ~ support.nfon.com ~ Hotline +31 88 938 2444...
