56
Vision Series 5 Controller User Manual
2.9.5

Oscillating Knife

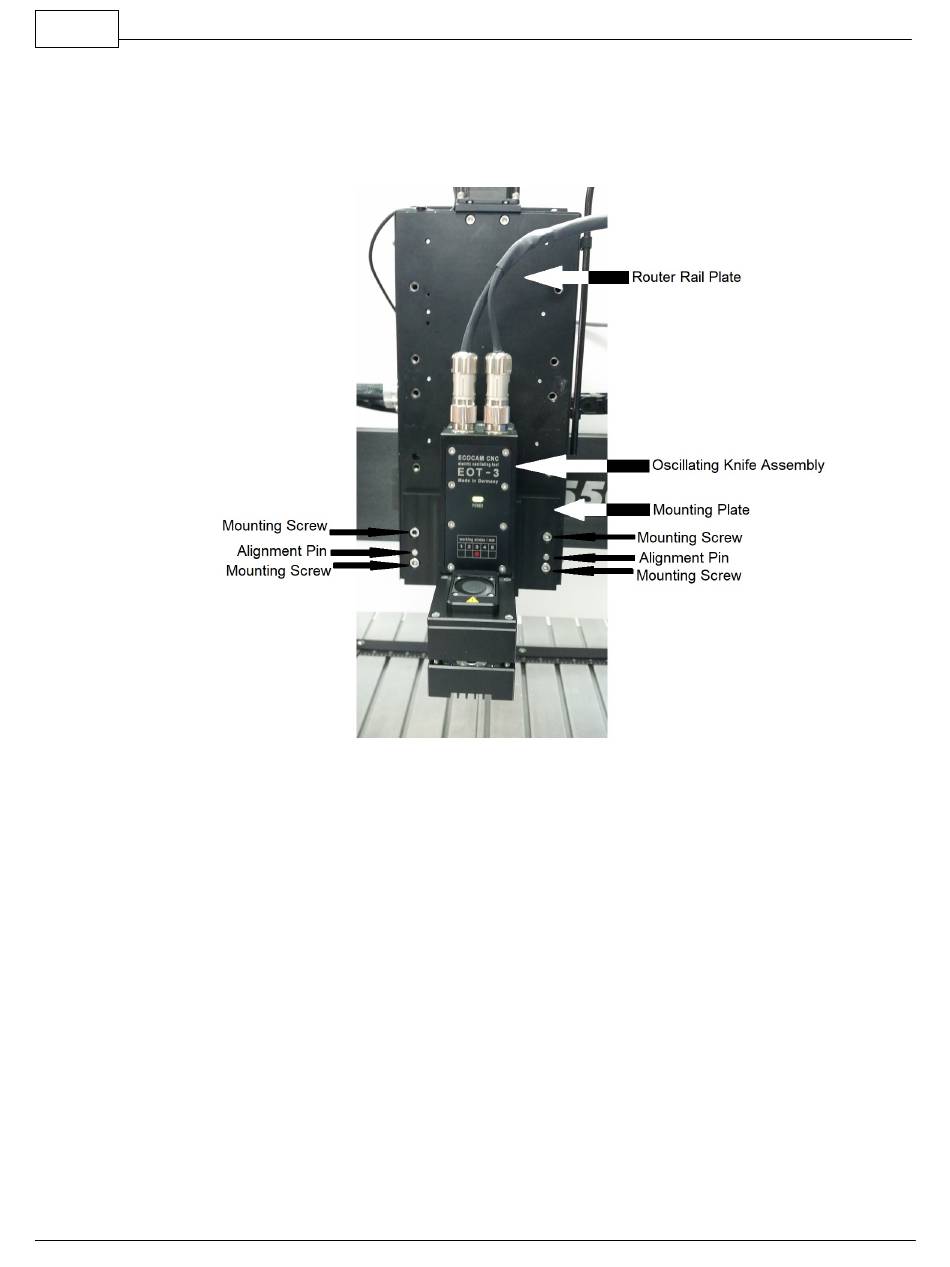

Place the Oscillating Knife Assembly against the face of the Router Rail Plate and align it to the
Mounting Plate with the Alignment Pins. Secure the Assembly with 4 Mounting Screws as shown.
© 2019 Vision Engraving Systems
