1624R, 2525 and 2550 Series 5 Installation
53

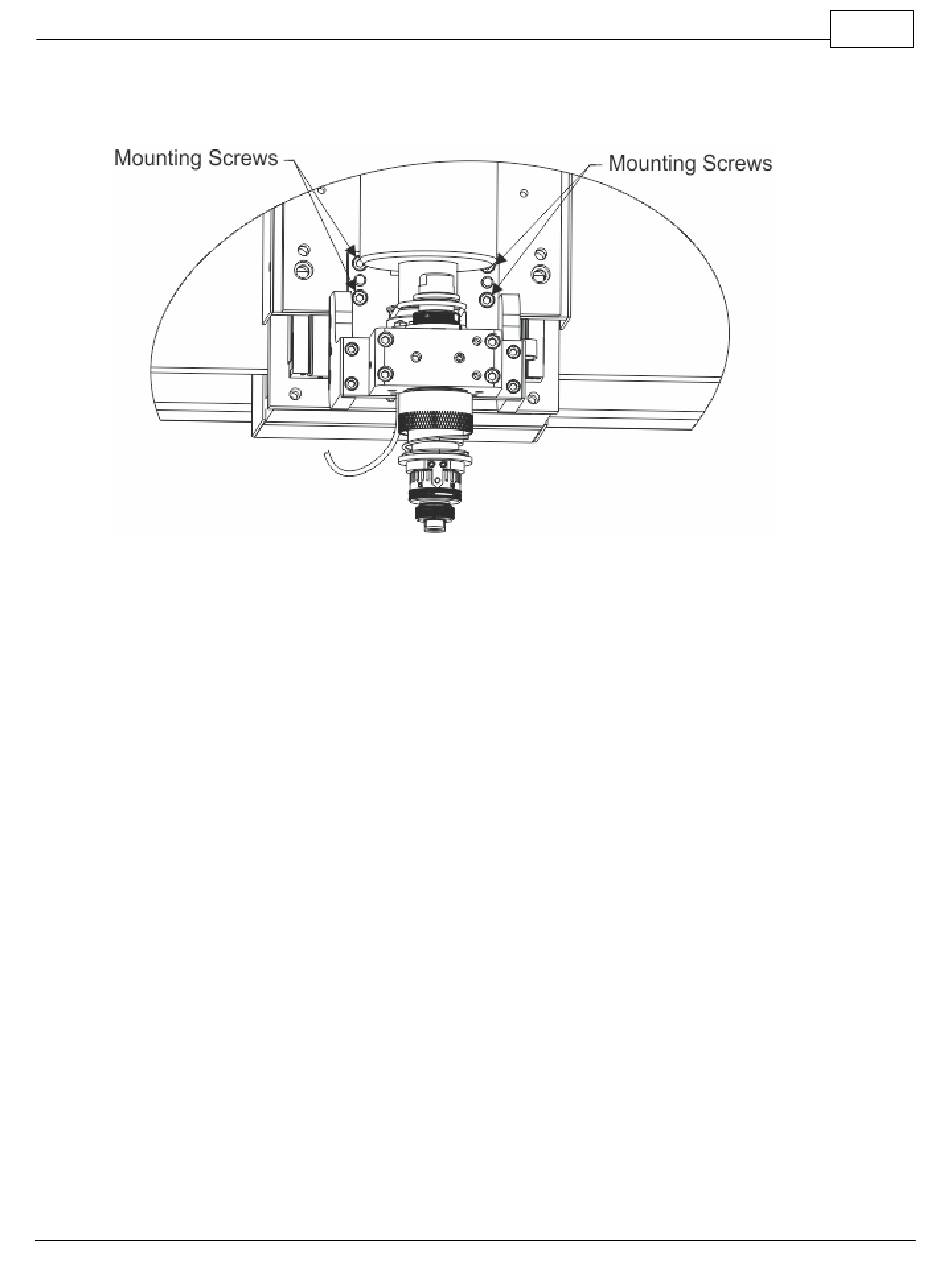

High Speed Engraving Spindle - Mounted
6. Install the Drive Belt on to the Drive Pulley, then lightly stretch it of the top of the Spindle Pulley.
NOTE: Do not excessively stretch the drive belt. The belt can be damaged by over-stretching and may
slip and not drive the spindle properly.
© 2019 Vision Engraving Systems
