2.2.2

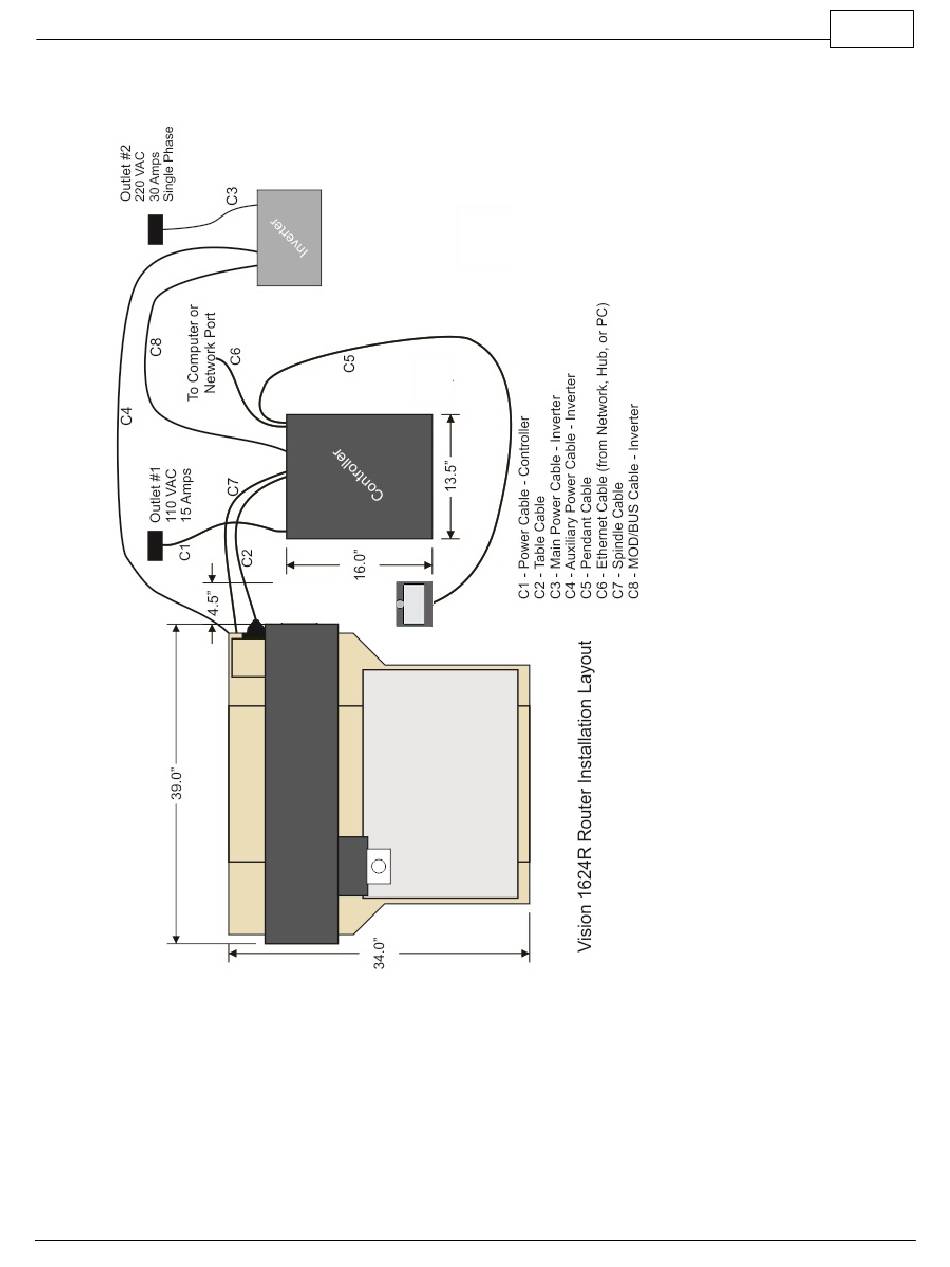

1624R Router Layout Diagram
2.3
1624R Table Descriptions
(Refer to the diagrams on the following pages)
1.
Table Base Plate. This is the large flat plate upon which everything else is mounted. All
mechanical alignments are referenced to this plate, so the space upon which you place the
engraving table must be a reasonably level surface.
© 2019 Vision Engraving Systems
1624R, 2525 and 2550 Series 5 Installation
17
