50
Vision Series 5 Controller User Manual
2.9.4
High Speed Engraving Spindle
The High Speed Engraving Spindle is installed with the High Frequency Router Motor. It allows up to a
30,000 RPM spindle speed. Connections to the machine's Controller are the same as when only using
the High Frequency Router Motor.

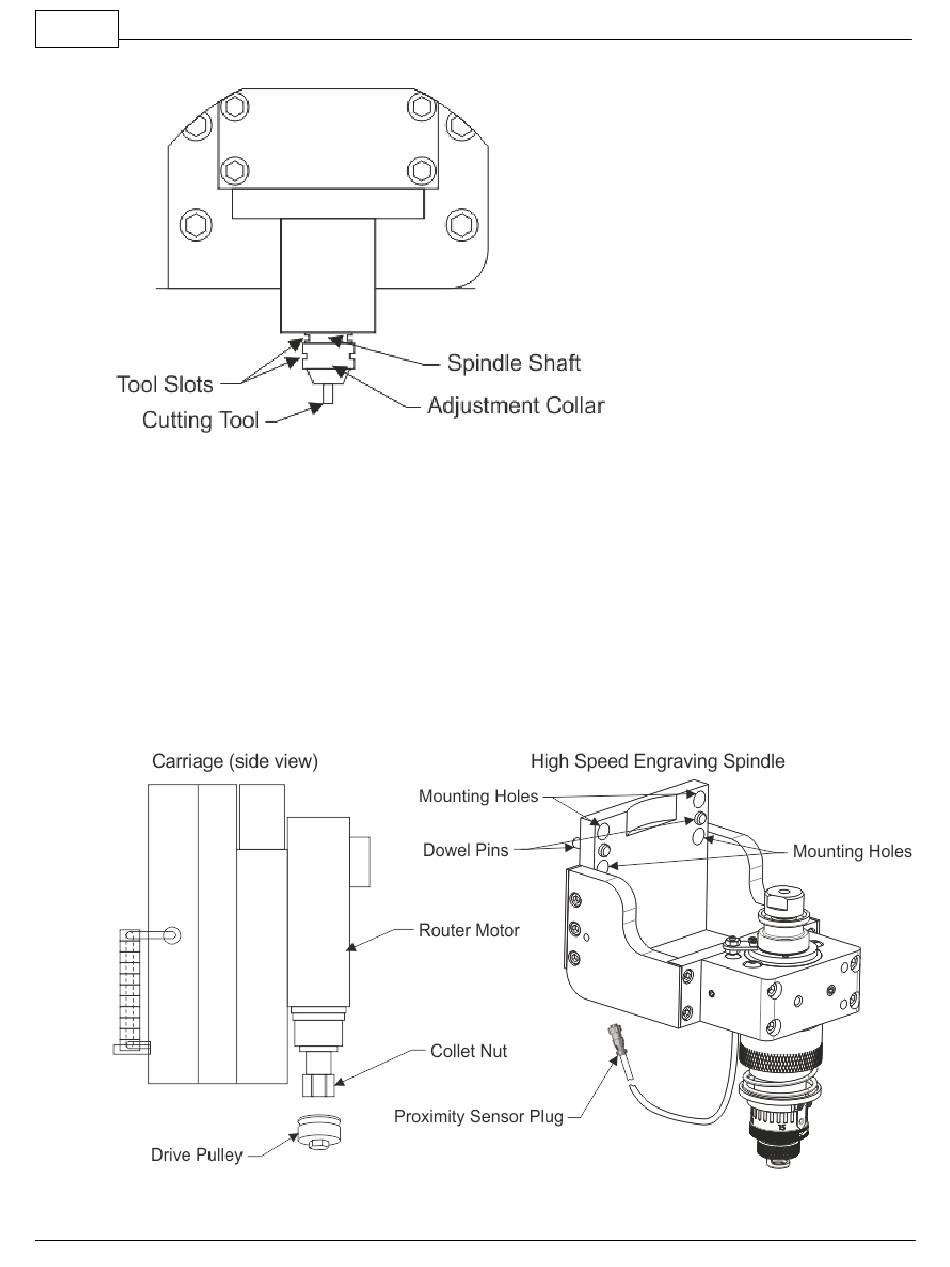

High Speed Engraving Spindle Installation
1. Remove the Collet Nut and Collet from the bottom of the Router Motor.
2. Install the Drive Pulley on to the threaded portion of the Motor Shaft and secure with the provided
wrenches.
3. Locate the High Speed Engraving Spindle on the Rail Plate with the Dowel Pins inserted into the
© 2019 Vision Engraving Systems
