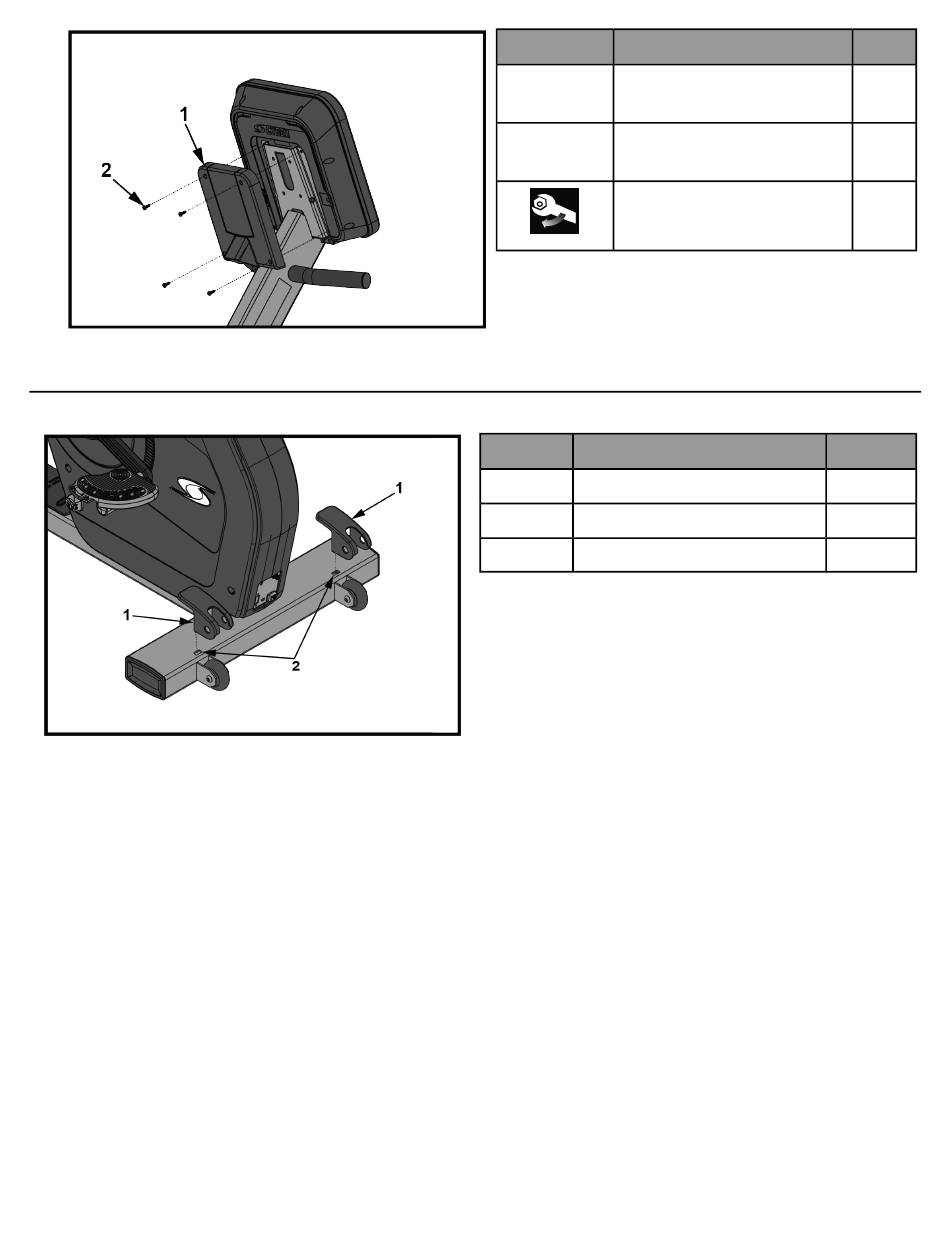

3. Use four screws to secure rear console shroud assembly through monocolumn into console.

Attach Wheel Covers

Press wheel covers into mounting holes and over wheel mounting bolts.
Item
1
2
Item
1
2
3
Page 23 of 25
Description
Rear Console Shroud
Assembly
M5 X 14 Phillips Pan Head
Screw
1.5 Nm (1.1 ft. lbs.)
Description
Wheel Covers
Mounting Holes
Wheel Mounting Bolts
Qty
1
4
Qty.
2
2
4
