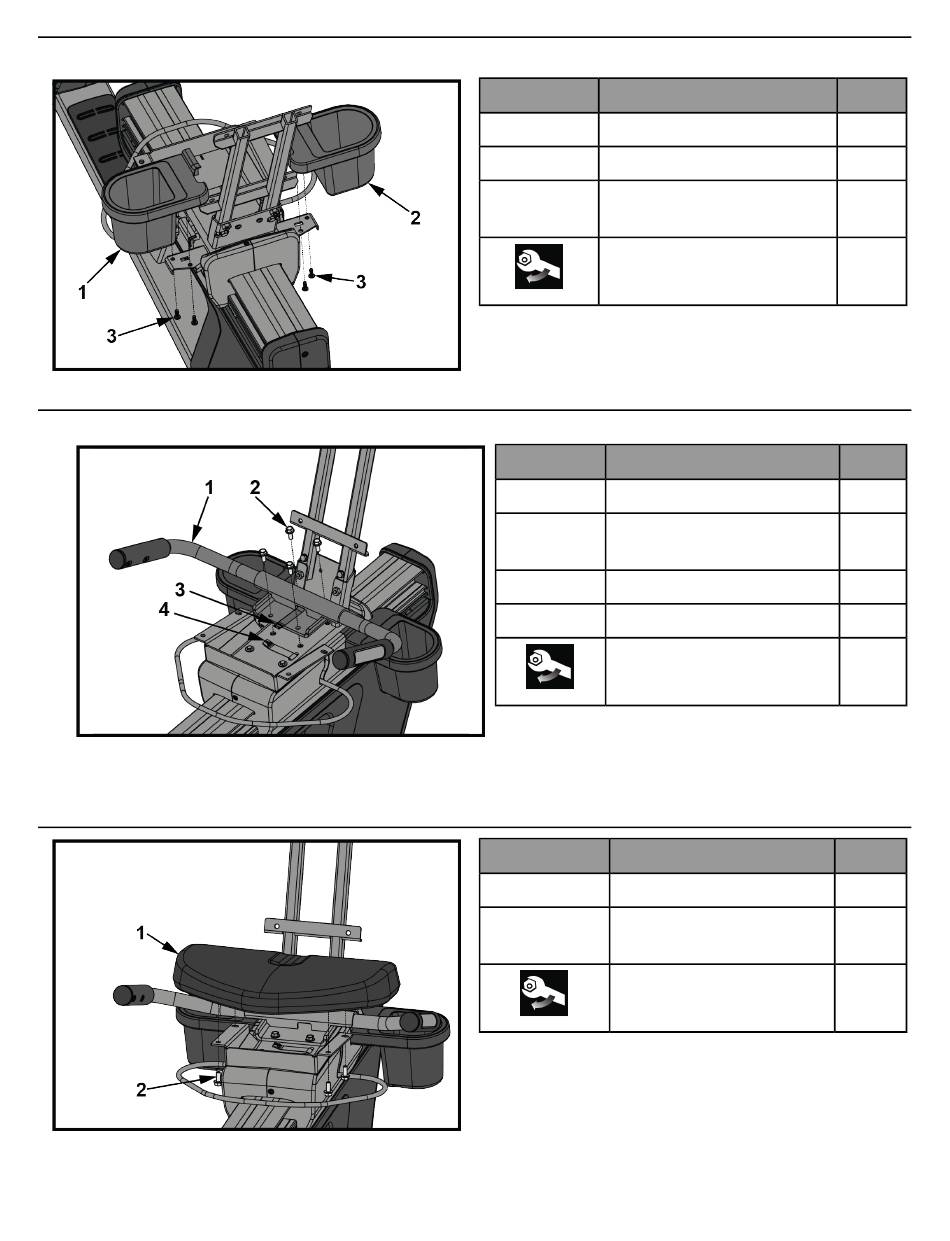

Attach Cup Holders

Secure cup holders with four screws.

Attach Handlebars

1. Attach handlebars using four screws.
2. Connect the cable from the handlebars to the flat cable coming up through the seat weldment.

Attach Seat

Item
1
2
3
Item
1
2
3
4
Item
1
2
Page 19 of 25
Description
Cup Holder, Left
Cup Holder, Right
M6 X 16 Phillips Head Pan
Screw
4 Nm (35 in. lbs.)
Description
Handlebar Weldment
M8 X 20 Flange Head Cap
Screw
Recumbent Cable
Flat Cable
37 Nm (27.3 ft. lbs.)
Description
Seat
M8 X 20 Flange Head Cap
Screw
13.5 Nm (10 ft. lbs.)
Qty.
1
1
4
Qty.
1
4
1
1
Qty.
1
4
