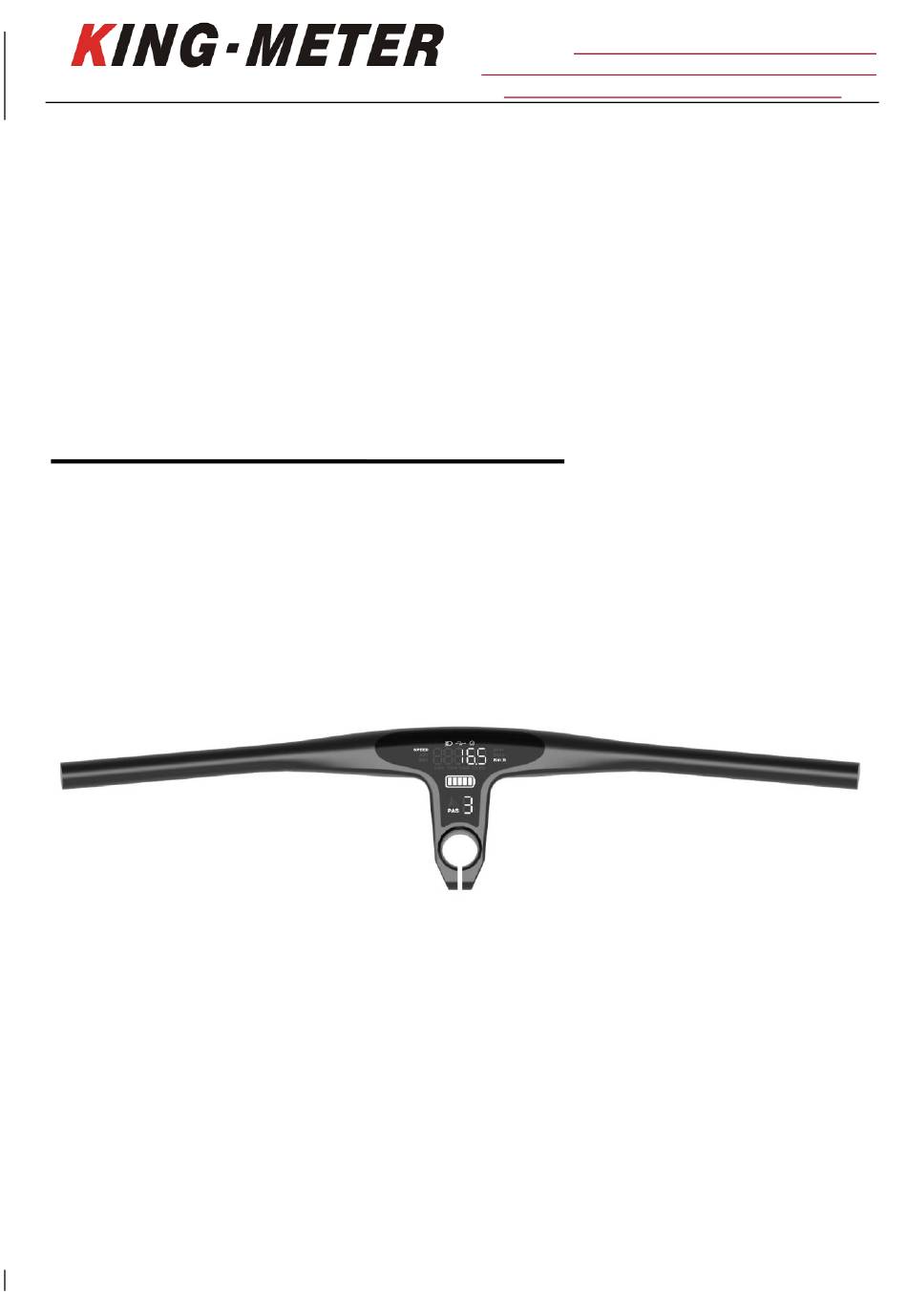

- Page 1 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 USERS GUIDE K5250...
-
Page 2: Table Of Contents
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 Content Preface ..............................2 1. Appearance and Size ..........................3 1.1 Main materials and colors ......................3 2. Function Summary and Button Definition ..................4 2.1 Function Summary ........................ -
Page 3: Preface
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 Preface Dear user, to ensure better performance of your e-bike, please read through the KM5S product introduction carefully before using. We will use the most concise words to inform you of all the details (including the hardware installation, setting and normal operation use of the display) when using our display. -
Page 4: Appearance And Size
1. Appearance and Size 1.1 Main materials and colors K5250 products are made of aluminium alloy material. the working temperature scope of the housing material is -20℃—+60℃, the shell material can ensure normal use and good mechanical performance of the products. -
Page 5: Function Summary And Button Definition
84780378 2. Function Summary and Button Definition 2.1 Function Summary K5250 provides a variety of functions and displays to meet customer’s riding needs. Display content list as follows: ◆Capacity of the battery ◆Speed display (including Real-time Speed, max speed and average speed) ◆... -
Page 6: Button Definition
No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 2.3 Button Definition N3 button is connected with K5250 display. In the following introduction, is named as “MODE”. is named as “UP” and is named as “DOWN”. -
Page 7: Operation Instructions
If the E-bike has not been used for 10 minutes, the display will turn off automatically. 5.2 Display Interface K5250 LCD normal display interface 5.3 Speed/Single Trip Distance/ODO After the display is powered on, the display will show the current default speed. Short press the “MODE”... -
Page 8: Walk Assist Mode
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 5.4 Walk Assist Mode Hold “DOWN” button for 2 seconds to enter the mode of walk assistant. The e-bike will go on at speed of 6 Km/h. -
Page 9: Turn On/Off The Headlight / Backlight
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 5.5 Turn On/Off the Headlight / Backlight Press and hold “UP” button for 2 seconds to turn on the backlight of the display, and the controller will be informed to turn on the headlight. -
Page 10: User Settings
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 Error code indicator Only after the fault is eliminated, the error code interface can be cleared, the E-bike will not be able to ride when error code occurs. -
Page 11: Metric/Imperial Unit
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 Single trip distance clearance interface Single trip distance and single trip time are cleared at the same time 7.2.2 Metric/Imperial Unit Parameters can be set in metric/imperial system. The metric and imperial system parameters can be changed by “UP”... -
Page 12: Wheel Size Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 7.3.1 Wheel Size Setting The setting option values are: 16, 18, 20, 22, 24, 26, 700C, and 28. Press “UP” and “DOWN” to select the value. -
Page 13: Faq
10. Quality assurance and warranty scope I, Warranty Information: 1, King-Meter will be responsible for all faults arising during normal operation that are caused by a quality defect. 2, The warranty time is 24 months from the day the display leaves the factory. -
Page 14: Ii, The Following Are Not Covered By Warranty
The instruction manual of this display is the operation manual of the general software version (version 1.0) of Tianjin King-Meter Technology Co., Ltd. The version of the display software used on some vehicles may be slightly different from this manual, and the actual version used shall prevail. -
Page 15: Appendix 1: Error Code Definition
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 Appendix 1: Error Code Definition Error Code Definition Current Abnormal Throttle Abnormal Motor phase problem Motor Hall defect Brake Failed Abnormal Communication... -
Page 16: Appendix 2: Password Table
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 Appendix 2: Password table Password Setting parameter setting 0512 password (fixed) - Page 17 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 84780378 KING-METER...
