  • Page 1 USERS GUIDE N5236...
  • Page 2: Table Of Contents

    CONTENT 1. Preface..............- 1 - 2. Appearance, Size and Material......- 2 - 3. Function Summary..........- 3 - 4. Main Display Figures.........- 4 - 5. Operation Cautions...........- 6 - 6. Standard Operation...........- 6 - 6.1 Power On/Off...........- 6 - 6.2 Speed Display..........- 6 - 6.3 Turn on/off Headlight........- 7 - 6.4 6KM/H Walk Assist........- 8 - 6.5 PAS Level Adjustment......- 9 -...
  • Page 3 9. Display Printing Code........- 25 - 10. FAQ...............- 25 - 11. Quality Warranty..........- 26 - 12. Version Changes...........- 27 -...
  • Page 4: Preface

    1. Preface Dear users, To ensure better performance of your e-bike, please read through N5236 product introduction carefully before using it. We will use the brief words to inform you of all the details (including hardware installation, setting and normal use of the display) when using our display.

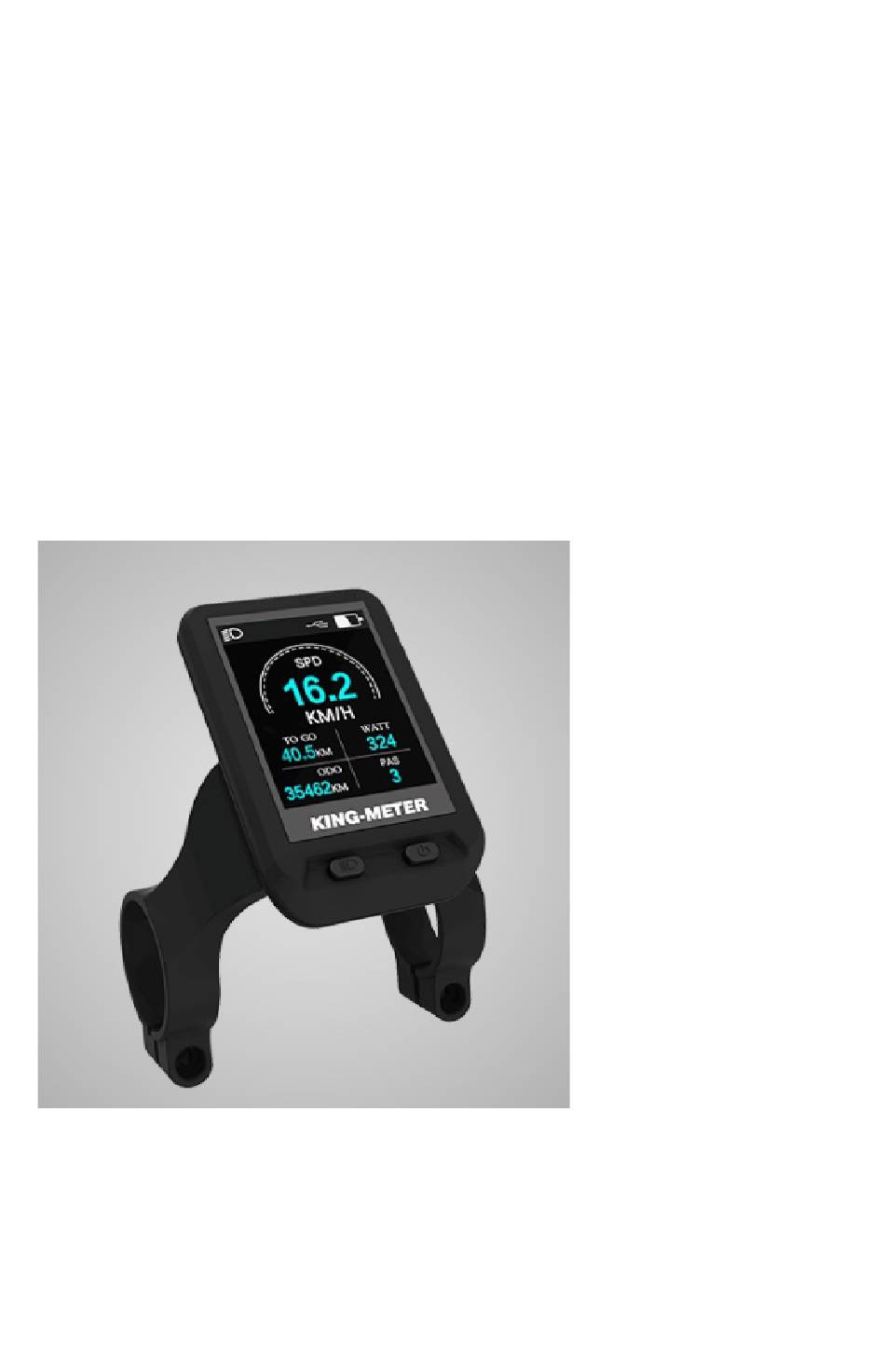

  • Page 5: Appearance, Size And Material

    N5236 housing material: PC. Under the temperature ℃ ℃ of -20 to 60 , the housing material can ensure normal use and good mechanical performance of the product. Display Size and Installation Size (Unit: mm) N5236 remote button connects to the bottom of...
  • Page 6: Function Summary

    “UP”, named as “DOWN”, button is named as “MODE”. 3. Function Summary N5236 offers plenty of functions and showing to meet your requirements. The indicated contents are as following: ◆Battery indicator ◆Motor power ◆Speed(including Current speed, Max speed and Average speed) ◆Trip distance and ODO...
  • Page 7: Main Display Figures

    Unit, Backlight brightness, Trip clearance, Software version. ◆Photosensitive backlight (Automatically adjust the screen backlight according to the ambient light intensity) 4. Main Display Figures There are mainly three display interfaces: N5236 normal display area ① Light; ② 6KM/H walk assist;...
  • Page 8 Maintenance alert; ⑥ Battery indicator; ⑦ Motor power; ⑧ PAS level; ⑨ ODO; ⑩ TRIP distance; Current speed/Average speed/Max speed. N5236 detail information display interface ① Light; ② 6KM/H walk assist; ③ Bluetooth GPS positioning; ④ USB charging/communication; ⑤ Maintenance alert;...
  • Page 9: Operation Cautions

    ⑨ Curve of the current speed; ⑩ ODO; PAS level; Current speed/Average speed/Max speed. N5236 navigation interface 5. Operation Cautions When the display shows the wrench icon, go to the dealer for maintenance. 6. Standard Operation 6.1 Power On/Off Hold “POWER” button for 2 seconds to start the display.
  • Page 10: Speed Display

    off state, the display no longer uses the battery's power supply; leakage current is less than 1uA. If the e-bike is not used for more than a period of time, the display will shut down automatically. 6.2 Speed Display After turning on display, it shows real time speed. Shortly press “MODE”...
  • Page 11: Turn On/Off Headlight

    Current speed Max speed Average speed 6.3 Turn on/off Headlight Under the main interface, press the “LIGHT” button to turn on/off the headlight. Normal display interface: Light turned on interface Detailed information interface:...
  • Page 12: 6Km/H Walk Assist

    Light turned on interface 6.4 6KM/H Walk Assist When in PAS level 1, press the “DOWN” button to enter walk assist preparation mode and the walk assist icon flashes. In this preparation mode, hold the “DOWN” button to enter the 6km/h walk assist mode and let go to exit the walk assist mode.
  • Page 13: Pas Level Adjustment

    Detailed information interface: 6km/h walk assist interface 6.5 PAS Level Adjustment Press “UP” or “DOWN” button to adjust the PAS levels and change output power of the motor. The default output power range is 1-3 levels, with level 1 being the lowest power and level 3 being the highest power.
  • Page 14: Battery Indicator

    PAS 1 PAS 3 Detailed information interface: PAS 1 PAS 3 6.6 Battery Indicator When the battery voltage is high, the battery indicator shows full grid. When the battery capacity is relatively low (<=20%), the battery indicator will show yellow; when the battery capacity is quite low (<=10%), the battery indicator will turn red, indicating that the battery is under voltage and needs to be charged immediately.
  • Page 15: Auto Backlight

    Battery power indicator Low battery voltage Under voltage Detailed information interface: Battery power indicator Low battery voltage Under voltage 6.7 Auto Backlight When the brightness of the surrounding environment changes,the display will automatically control the brightness of the screen backlight through the built-in photosensitive element.
  • Page 16: Usb Charging

    environment is bright, the backlight will be brighten synchronized. 6.8 USB Charging Connect the USB device before power on the display, turn on the power to charge the USB device, the USB icon will lights up, remove the USB device, and the USB icon turns off after 2 Seconds;...
  • Page 17: Error Code

    Detailed information interface: USB Charging interface 6.11 Error Code When the system is wrongly working, display will show the error code automatically. Only when the fault is eliminated can the error display interface be exited, and the e-bike will not be able to continue driving after the error occurs.
  • Page 18 Item Definition Level Error Statement Code Overcurrent Shutdown 0x27 Overvoltage Shutdown 0x07 Under Shutdown 0x06 No error voltage code displays, only the Controller battery icon flashes Braked Shutdown 0x03 Not shown on display Throttle Shutdown 0x05 returned Throttle fault Shutdown 0x04 voltage Shutdown...
  • Page 19 Motor Shutdown 0x10 temperature reached protection point Motor Shutdown 0x11 temperature sensor fault Controller Shutdown 0x14 temperature reached protection point Controller Shutdown 0x15 temperature sensor fault Current Shutdown 0x12 sensor fault Headlight Ordinary 0x23 fault Brake Shutdown 0x33 detection circuit fault Power Shutdown 0x35...
  • Page 20 Button Shutdown 0x36 detection circuit fault Speed Shutdown 0x21 sensor fault Watchdog Shutdown 0x37 fault Torque Shutdown 0x25 sensor sensor torque signal fault Torque Shutdown 0x26 sensor speed signal fault Watchdog Shutdown 0x38 fault Derailleur Derailleur Shutdown 0x61 stuck Derailleur Ordinary 0x62 cannot reset...
  • Page 21 Total current Shutdown 0x43 high (Battery) Unit voltage Shutdown 0x44 high (Battery) Shutdown 0x45 Temperature too high (Battery) Shutdown 0x46 Temperature too low (Battery) Shutdown 0x47 SOC too high (Battery) Shutdown 0x48 SOC too low (Battery) Unit voltage Shutdown 0x49 too low Shutdown 0x4A...
  • Page 22 Communicati Shutdown 0x30 Communicati Display failure on failure with between controller display and controller. Other communicati on faults should be detected by BESST tools Communicati Shutdown 0x39 The display failure cannot with detect the intelligent heartbeat of module intelligent module, and the controller cannot detect the...
  • Page 23: Settings

    Communicati Regular 0xC1 The display failure work with ABS with ABS system cannot detect the information. Display without ABS will not report this fault E-lock E-lock stuck Shutdown 0x71 7. Settings 7.1 Settings In the main display interface and when current speed is 0,hold the “UP”...
  • Page 24: Wheel Size Check

    setting - single trip distance reset setting - wheel size check. In the setting interface, press and hold the “MODE” button (> 2S) to exit the setting interface. 7.2 Wheel Size Check In the setting interface, you can check the current wheel size under the wheel size check option interface.
  • Page 25: Software Version

    Speed limited check interface 7.4 Software Version In the setting interface, you can check the current software version number under the software version view option interface. Software version interface 7.5 Unit Settings Unit setting can set the unit of speed and mileage displayed by the display.
  • Page 26: Backlight Setting

    unit (Km/h, Km). Shortly press the “MODE” button to enter the unit setting interface. Shortly press the “UP” or “DOWN” button to switch between metric unit (km/h) and imperial unit (mph). Press the “MODE” button again to confirm the setting item, save and exit the unit setting interface at the same time.
  • Page 27: Single Trip Clearance

    Backlight brightness setting interface 7.7 Single Trip Clearance The single trip reset setting can clear the single trip distance data of the display. Shortly press the “MODE” button to enter the setting state of single trip clearance. Press the “UP” button or “DOWN” button to clear the single distance (YES) or not clear (NO).
  • Page 28: Wire Sequence

    The single trip clearance setting interface 8.Wire Sequence Note: The following is only an example. The actual product shall be subject to customer requirements. Connecting end with controller Standard connector wire sequence table (BAFANG) Standard Color of standard Wire Function Wire Brown(VCC(...
  • Page 29: Display Printing Code

    9. Display Printing Code If customer has special requirements, print the code according to the customer's requirements. If the customer has no special requirements, the code printed according to the requirements of Bafang company. The printing code is two lines. The first line is the hardware version number of the display, and the second line is the combination of production date, serial number, and the display's wire length,...
  • Page 30: Quality Warranty

    11. Quality Warranty I. Warranty Information: 1. King-Meter will be responsible for all faults arising during normal operation that are caused by a quality defect 2. The warranty period is 24 months from the day the display leaves the factory.
  • Page 31: Version Changes

    The user manual of this display is the operation manual of the general software version (version 1.0) of King-Meter Technology Co., Ltd. The version of the display software used on some vehicles may be slightly different from this manual, and the actual...
