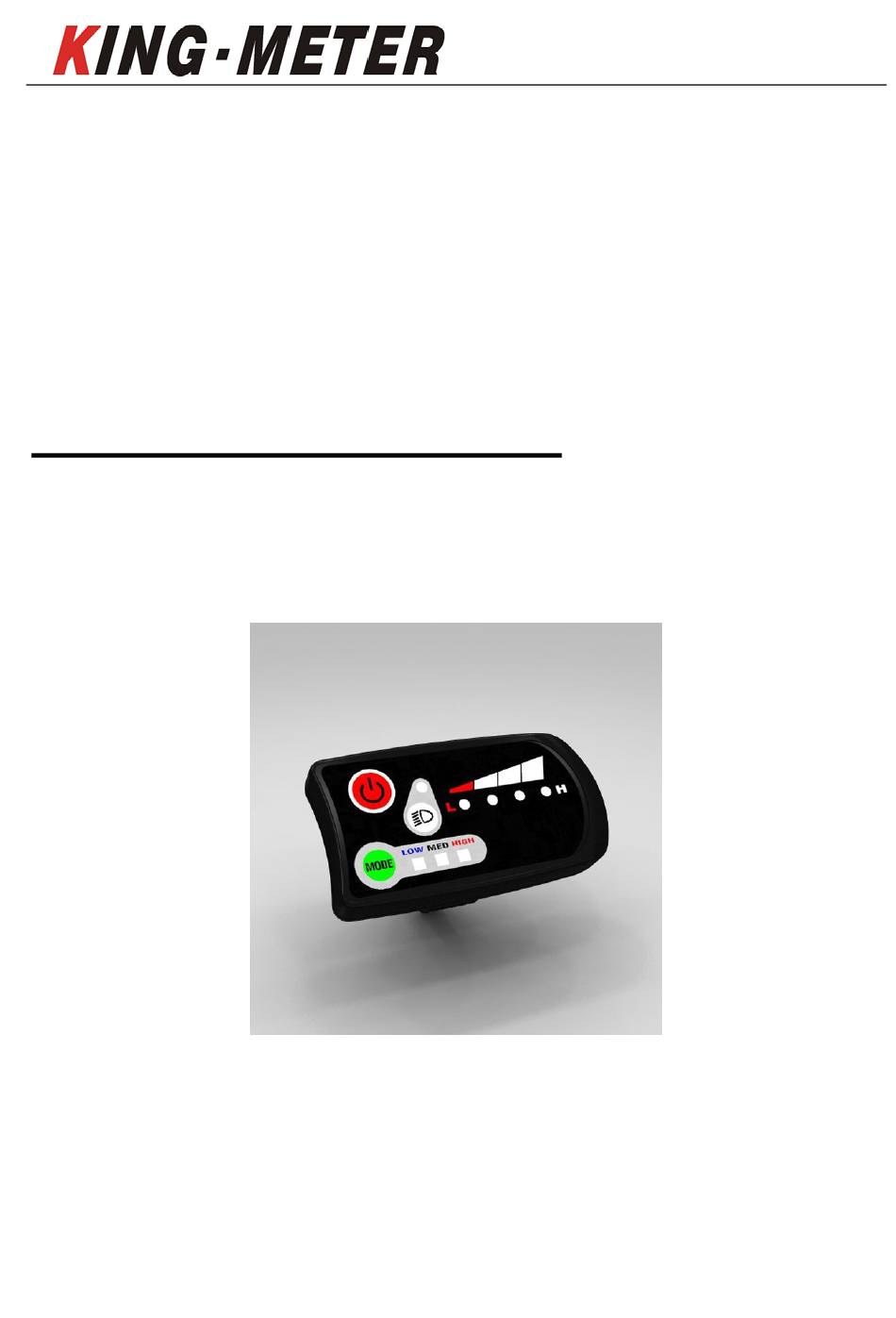

  • Page 1 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 USERS GUIDE 790-R LED...
  • Page 2: Table Of Contents

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 Content 1. Appearance and Dimensions ......................4 1.1 Materials and Color ........................ 4 2. Functions and Button Definition ..................... 4 2.1 Functions Summary ....................... 4 2.2 Button Definition ........................
  • Page 3 Fax:+0086 022 8478 0358 Tel: +0086 022 8478 Preface Dear users, in order to better operate your e-bike, please read the manual of the 790-R LED display carefully before use. We will use the most concise language to tell you every aspect of the instrument's use, including hardware installation and setting to the normal use of the display.
  • Page 4: Appearance And Dimensions

    1. Appearance and Dimensions 1.1 Materials and Color The 790-R LED product shell uses white and black PC materials. The material of the shell allows normal use at a temperature of -20°C to 60°C, and can ensure good mechanical properties.
  • Page 5: Button Definition

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 2.2 Button Definition There are three buttons on the 790 display. Including power switch button, mode button and headlight switch button. In the following description, the switch button is replaced with the text "ON/OFF". The mode button is replaced by the text "MODE", and the headlight switch button is replaced by the text...
  • Page 6: Installation Instruction

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 4. Installation Instruction Fix the display on the handlebar and adjust the viewing angle. When the e-bike is powered off, just plug the connector of the display and the corresponding connector of the controller to complete the installation.
  • Page 7: Swipe Rfid Card

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 5.2.2 Swipe RFID Card When the display is turned on normally, there will be a prompt swiping interface. When the prompt swiping interface is turned on, the level indication will turn on from high to low, and all lights will go out.
  • Page 8: Error Codes

    8. Quality Assurance and Warranty Scope I, Warranty Information: 1, King-Meter will be responsible for all faults arising during normal operation that are caused by a quality defect. 2, The warranty time is 18 months from the day the display leaves the factory.
  • Page 9: Attached Table 1: Error Code Definition Table

    KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 Attached Table 1: Error code definition table Error code Definition PAS level 1 light flashing Current abnormal PAS level 2 light flashing Throttle abnormal...
  • Page 10 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax:+0086 022 8478 0358 Tel: +0086 022 8478 KING-METER...
