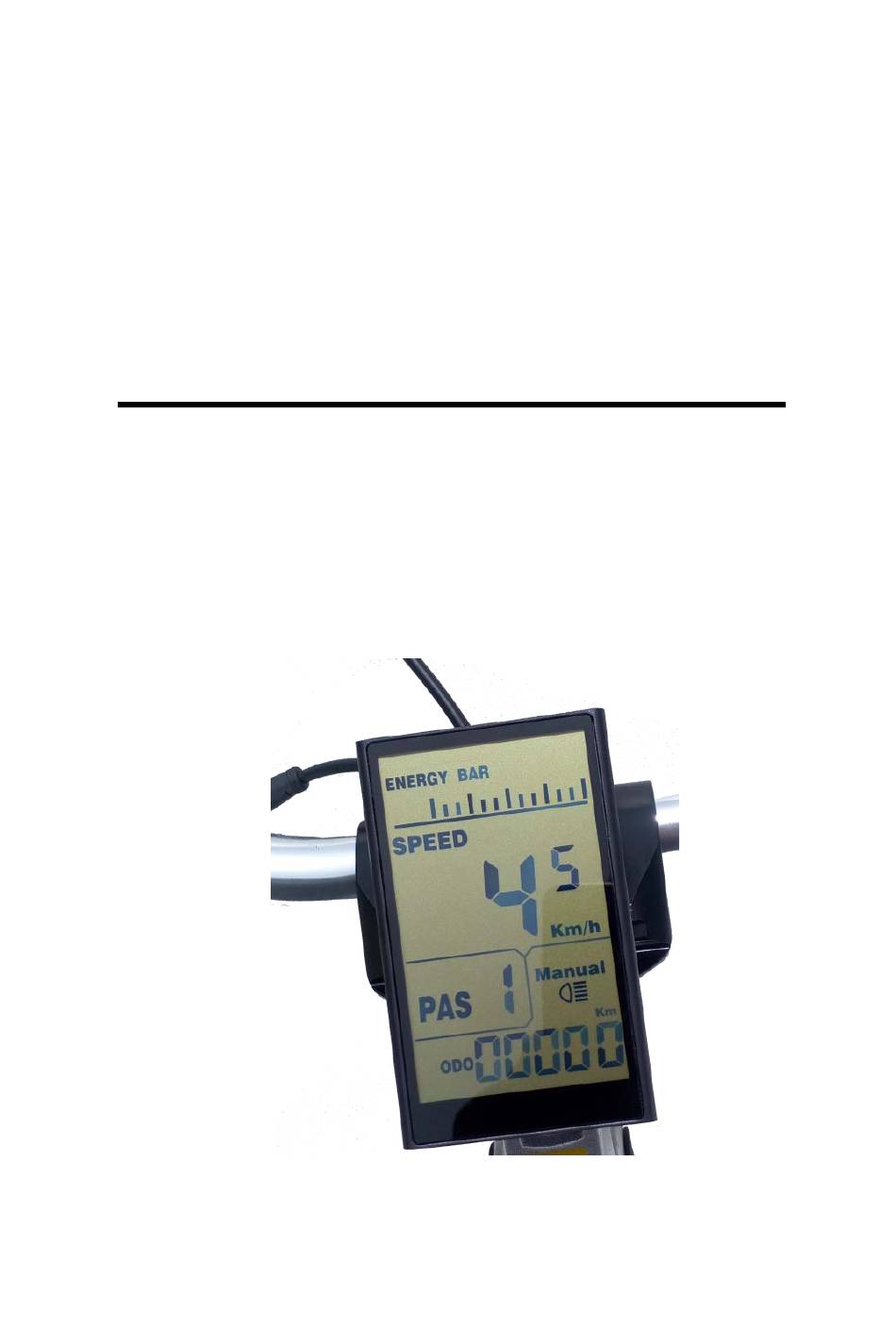

- Page 1 KING-METER USERS GUIDE NOKEE...
-
Page 2: Table Of Contents
KING-METER SPECIFICATIONS OF NOKEE V1.0 Contents 1 Preface·············································································· 1 2. Appearance and dimensions ················································· 2 2.1 Main materials and color··············································· 2 2.2 Materials and colors of buttons······································· 3 3 Precautions for use ····························································· 4 4. Overview of functions and indications ···································· 5 4.1 Overview of functions ·················································... - Page 3 KING-METER SPECIFICATIONS OF NOKEE V1.0 7.1 Settings before riding ······················································ 15 7.2 Setting of metric/imperial system······································· 16 7.3 Maximum speed limit setting············································ 17 7.4 Wheel diameter setting···················································· 17 7.5 Exit settings····································································18 8. FAQ ·················································································19 9. Meter Barcode ·····································································19 10. Quality assurance and scope of warranty ································ 20 10.1 Warranty information ················································20...
-
Page 4: Preface
V1.0 1 Preface Dear users, Please read through the instructions of NOKEE meter carefully before using it to ensure a better performance of your e-bike. We will use the most concise words to show you all detailed steps for using it, including the steps from installation and setting of hardware through normal use of the instrument. -
Page 5: Appearance And Dimensions
V1.0 . Appearance and dimensions 2.1 Materials and Colour of display NOKEE is primarily made of aluminum alloy and toughened glass. The shell of the display is made of black matte material, which can operate in the temperature ranging from -40 C to 80 C, with good mechanical properties. -
Page 6: Materials And Colors Of Buttons
KING-METER SPECIFICATIONS OF NOKEE V1.0 Appearance and dimensions (with 22.2mm gripper) 2.2 Materials and colours of buttons The main body of the buttons is made of a PC material while the keys on them are made of soft silica gel, appearing black in general. -
Page 7: Precautions For Use
KING-METER SPECIFICATIONS OF NOKEE V1.0 3 Precautions for Use Take care when using the meter and do not connect / disconnect it while the power is on. Avoid bumping or striking the meter. Avoid direct contact with water. The parameters and settings of the meter should not be modified by the user;... -
Page 8: Overview Of Functions And Indications
SPECIFICATIONS OF NOKEE V1.0 4. Overview of Functions and Indications 4.1 Overview of functions NOKEE provides you with a number of functions and indications to satisfy your demands while riding. The indications on NOKEE include: ◆ Battery indications; ◆ Speed indication (including real-time speed, maximum speed and average speed);... - Page 9 KING-METER SPECIFICATIONS OF NOKEE V1.0 4.2 Indications Normal display of NOKEE...
-
Page 10: Installation Instructions
KING-METER SPECIFICATIONS OF NOKEE V1.0 5. Installation instructions Open the gripper to clip the meter onto handlebar. Adjust it until appropriate angle of view is obtained, then screw the gripper to the recommended torque, of 1.5N.M. 5.1 Installing onto handbar Adjust the angle Installation finished. -
Page 11: Normal Operations
KING-METER SPECIFICATIONS OF NOKEE V1.0 6. Normal operations` 6.1 Power on/off Press the key for several seconds to initiate the meter and supply power to the controller. Press the key for several seconds while the power is on to turn off the e-bike. -
Page 12: Displaying Running Speed
KING-METER SPECIFICATIONS OF NOKEE V1.0 6.2 Displaying running speed Press the key briefly to enter the speed display interface, and briefly press the key again to display SPEED (real- time speed), AVG (average speed) and MAX (maximum speed) respectively , as shown... -
Page 13: Setting Push Cruise
KING-METER SPECIFICATIONS OF NOKEE V1.0 6.3 Setting push cruise While the power of meter is on, press for 3 seconds to enable push cruise for the e-bike, as shown in right figure. The e-bike will run at a constant speed of 6km/h. “Walk 1”... -
Page 14: Switching Headlight
KING-METER SPECIFICATIONS OF NOKEE V1.0 6.4 Using the headlight Long press to display the symbol, as shown in the right figure, which indicates the headlight is on. Long press again to switch off the headlight. Headlight switching interface If the e-bike has no headlight function, the symbol will not be displayed. -
Page 15: Battery Indication
KING-METER SPECIFICATIONS OF NOKEE V1.0 6.5 Battery indication When the battery has sufficient voltage, all the six large lines will be displayed on LCD. When only one line is displayed, it indicates low battery, requiring prompt recharging. The battery symbol as shown in the right figure... -
Page 16: Indication Of Miles
KING-METER SPECIFICATIONS OF NOKEE V1.0 6.6 Indication of distance Press the key briefly to switch among indications of distance information in the following order: TRIP A (single trip distance A) →TRIP B (single trip distance B) →ODO (accumulated distance) →RMAIN (remaining distance) →TRIP A (single trip distance A). The... -
Page 17: Error Code Display
KING-METER SPECIFICATIONS OF NOKEE V1.0 6.7 Error code display Malfunctions in t electrical control system of the e-bike will trigger an automatic display of ERROR on the meter with the corresponding error codes. See Attached Table 1 for definitions of detailed error codes. -
Page 18: Instrument Settings
KING-METER SPECIFICATIONS OF NOKEE V1.0 7. Instrument Settings 7.1 Settings before riding After power on, the instrument displays real-time speed by default. Press for 3 seconds, to enter the setting state of unit/speed limit/wheel diameter. Briefly press to switch display information in the following order, ST¹... -
Page 19: Setting Of Metric/Imperial System
KING-METER SPECIFICATIONS OF NOKEE V1.0 7.2 Setting of metric/imperial system In the setting state, ST¹ stands for metric system selection. Briefly press to switch between metric (Km) and imperial units (Mi). Briefly press , to confirm the setting and enter ST² setting... -
Page 20: Maximum Speed Limit Setting
KING-METER SPECIFICATIONS OF NOKEE V1.0 7.3 Maximum speed limit setting Briefly press to set the Maximum limit speed, which is from 20 Km/h to 40Km/h. Briefly press to confirm and enter the wheel diameter setting interface. The maximum limit speed of factory setting is 25Km/h. -
Page 21: Exit Settings
KING-METER SPECIFICATIONS OF NOKEE V1.0 7.5 Exit settings Under setting state, briefly press (no longer than 2 seconds) to confirm and save the current setting. Press and hold it (at least for 2 seconds) to confirm, save and exit current settings. Press and hold it (at least for 2 seconds) to cancel the current operation and exit without saving current settings. -
Page 22: Faq
Answer: Take your bike to a repair station in a timely manner. 9. Meter Barcode In the number 513NOKEE36L0376S4001 below the instrument barcode, 513 refers to the customer code, NOKEE the product name, 36L the voltage of product battery, 0376 the drawing No. and S4001 the software version No.. -
Page 23: Quality Assurance And Scope Of Warranty
KING-METER SPECIFICATIONS OF NOKEE V1.0 10. Quality Assurance and Scope of Warranty 10.1 Warranty information： Any malfunction caused by quality defects of the product during normal use will be covered by a limited warranty by the company within warranty period. -
Page 24: Wiring Diagram
KING-METER SPECIFICATIONS OF NOKEE V1.0 11. Wiring Diagram 11.1 Wire sequence of standard plug connectors To controller The end on meter For joint Table: wire sequence of standard plug connectors Standard wire Color of standard Function sequence wire Red (VCC) -
Page 25: Version History
12. Version History This users guide is prepared for general-purpose software (V1.0) of Tianjin King-Meter Electronic Co., Ltd. The software version used on some bikes may vary, which will depend on the current version.
