Sterndrive Removal and Disassembly

Publ. 7746477 English 06-2008
To service components of the upper gear housing, remove sterndrive
from transom shield and separate upper housing from lower. Follow
the procedures in the Sterndrive, General Information chapter of this
manual.

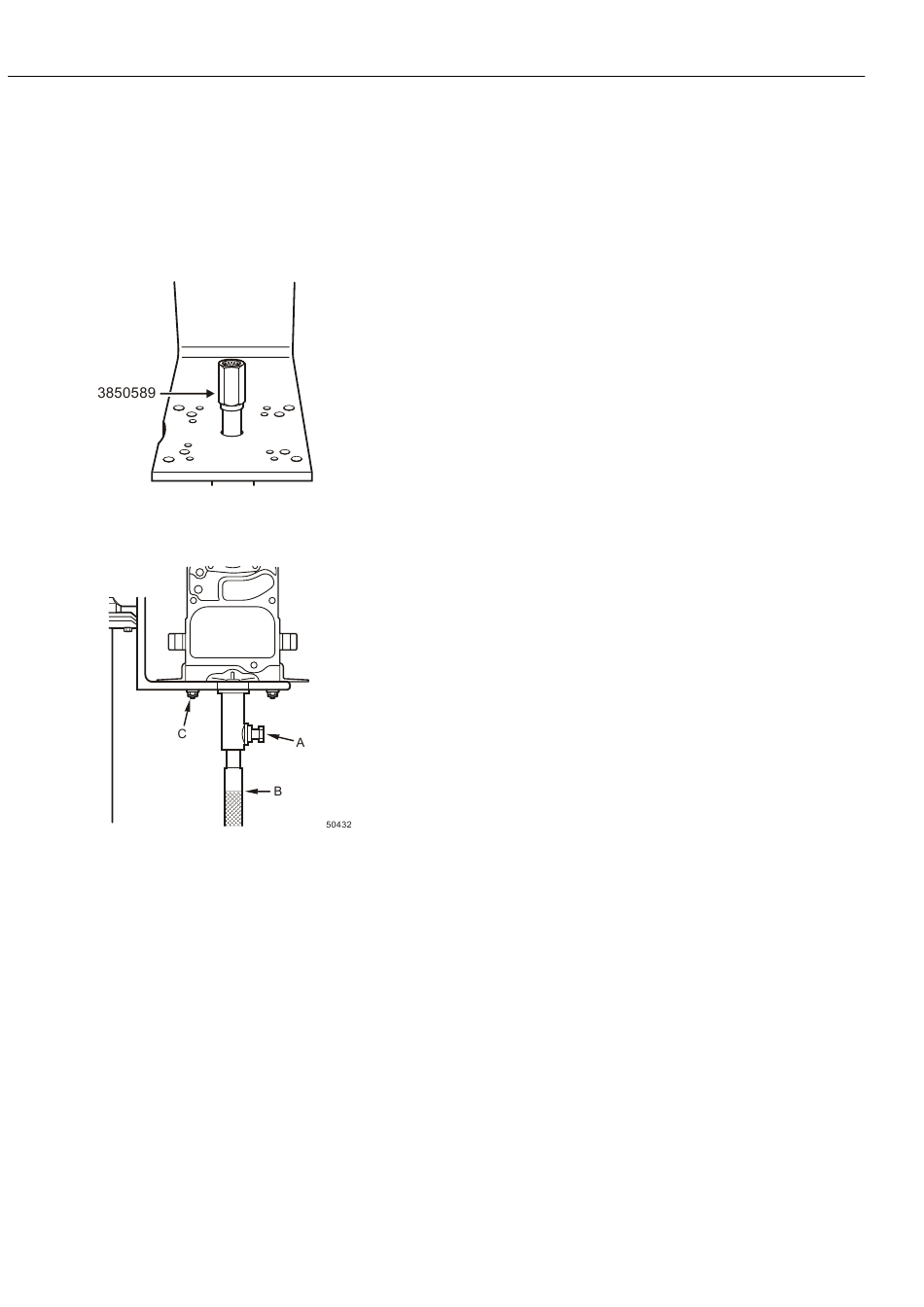

Attach spline socket 3850598 to holding fixture 3849651.
1.
Tighten set screw securely.
Mount upper gear housing on holding fixture.
2.
NOTICE! Rotate upper gear housing if fixture holes do not align
with holding fixture.
Loosen locking screw (A).
Rotate and lift fixture shaft (B) to engage upper driveshaft splines.
Install and securely tighten four nuts on studs(C).
Upper Gear Housing
49
