Trim Sender Installation

Publ. 7746477 English 06-2008

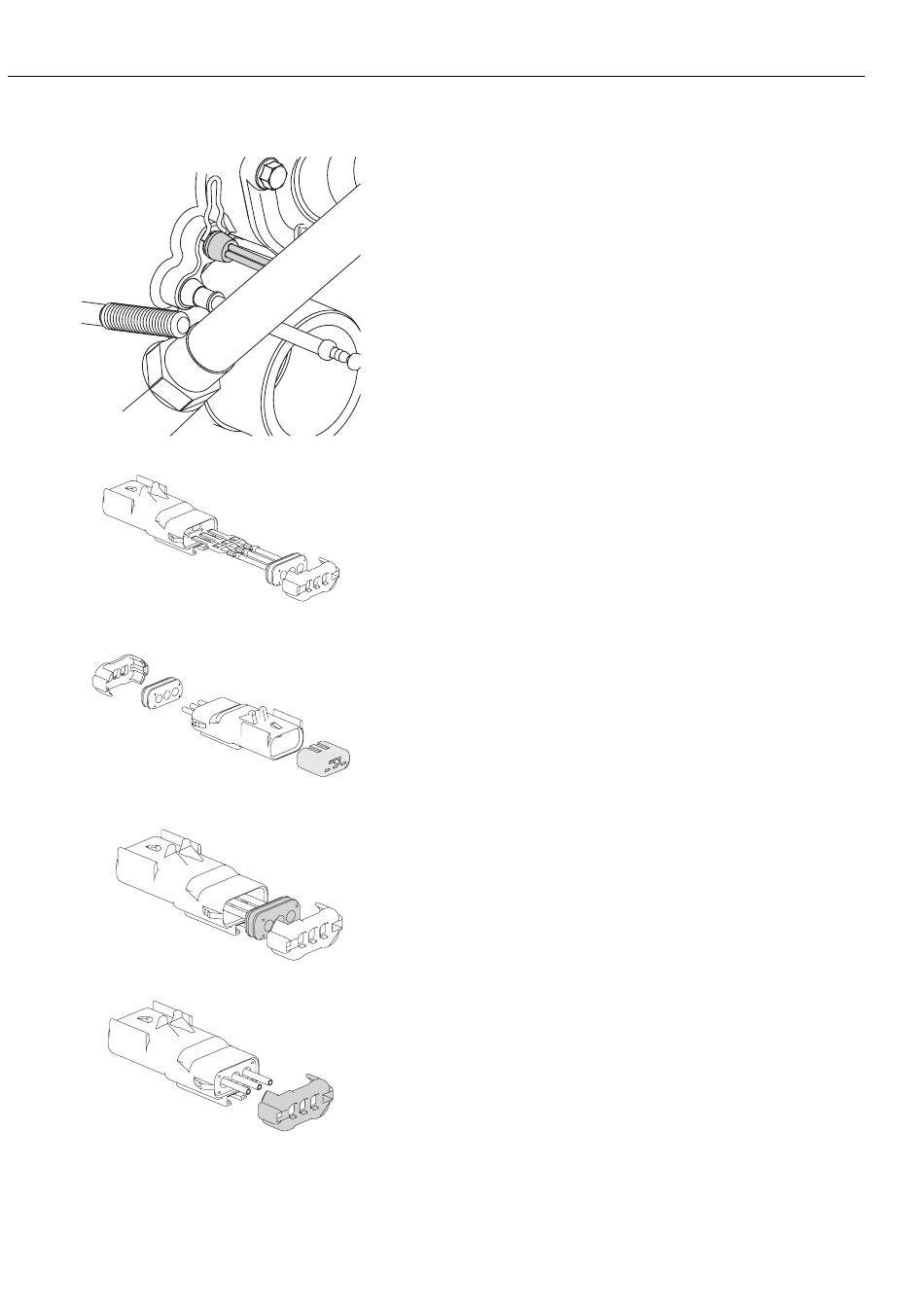

Apply grease 828250 to trim/tilt sender lead grommet. Feed wires
1.
through opening in transom shield and out through transom plate.
Push grommet into hole until it seats.
NOTICE! Do not route trim/tilt sender leads under extension
tube or hydraulic lines. Leads must be free to move
when drive unit steers, otherwise sender or wire will be
damaged.
Attach retaining clip to grommet inside transom plate.
2.
Install Black/Brown wire in position "1", Green/Red wire in position
3.
"2" and Black wire in position "3".
NOTICE! The terminal numbers are moulded into the connector.
Install terminal support block.
4.
Slide gasket into the back of the connector.
5.
Slide the gasket retainer onto the connector.
6.
Transom Shield Assembly
191
