Trim Sender Adjustment

Publ. 7746477 English 06-2008

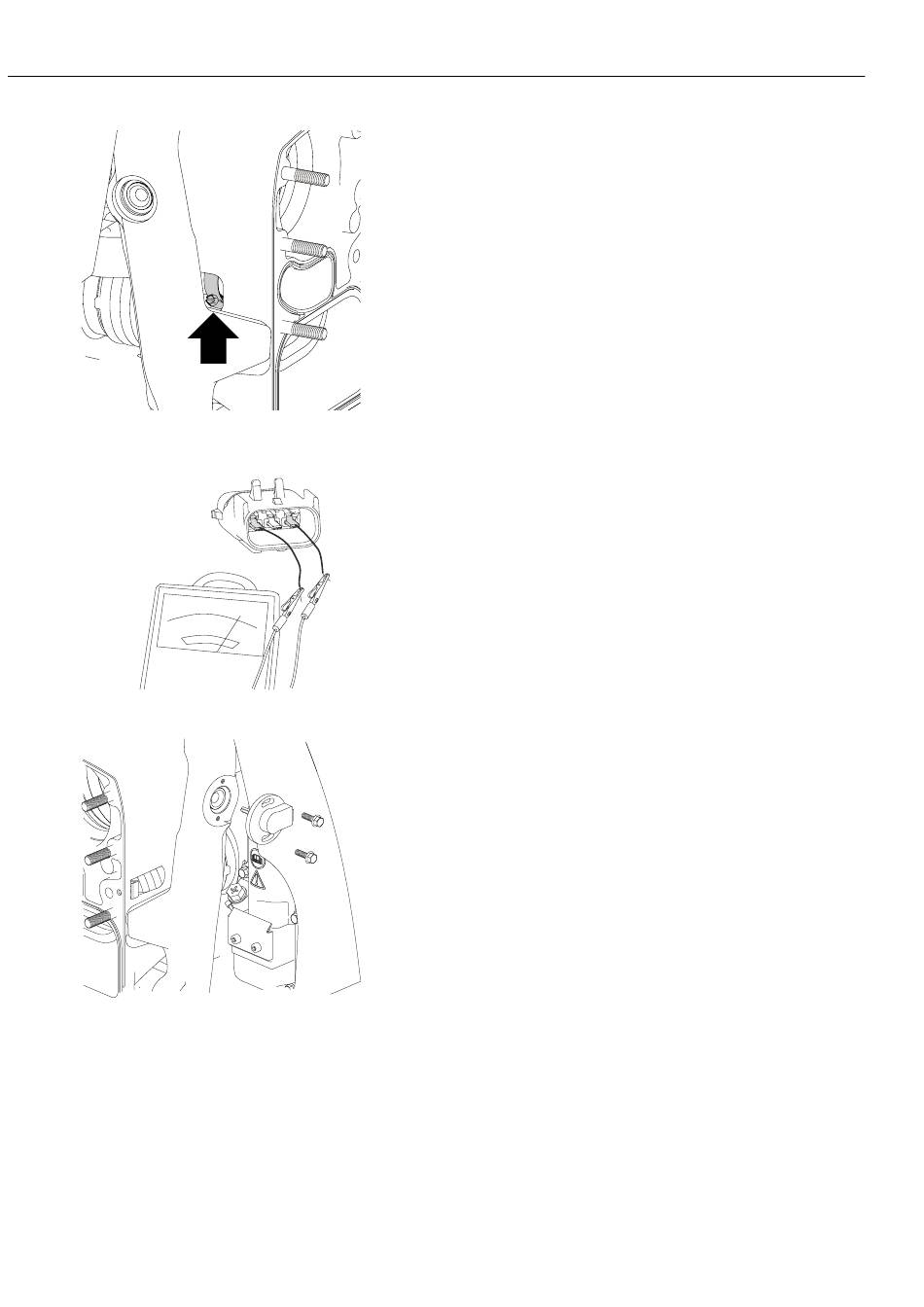

Tighten hose clamp through the access window of the pivot
3.
housing.
Check the water hose travel for kinking, pinching or binding in all
4.
pivot housing positions.
Slide the other end of the exhaust bellows over the exhaust
5.
opening of the pivot housing.
Push bellows onto exhaust port until it engages groove.
6.
Turn the clamp to the 12 o'clock position.
7.
Tighten the clamp through the pivot housing access window.
8.
Connect an ohm meter to the black and brown/black wire on the
1.
sending unit connector. Turn sending unit control nut until meter
reads 11 ± 1 ohm.
With lower edge of pivot housing pushed in towards gimbal
2.
housing, insert sending unit control nut into pivot bolt head. Install
two trim sender mounting screws finger tight.
