Transom And Exhaust Seal Replacement; Transom Shield Installation - Volvo Penta SX-A Workshop Manual

Transom Shield Assembly
Transom and Exhaust Seal Replace-
ment

Transom Shield Installation

196

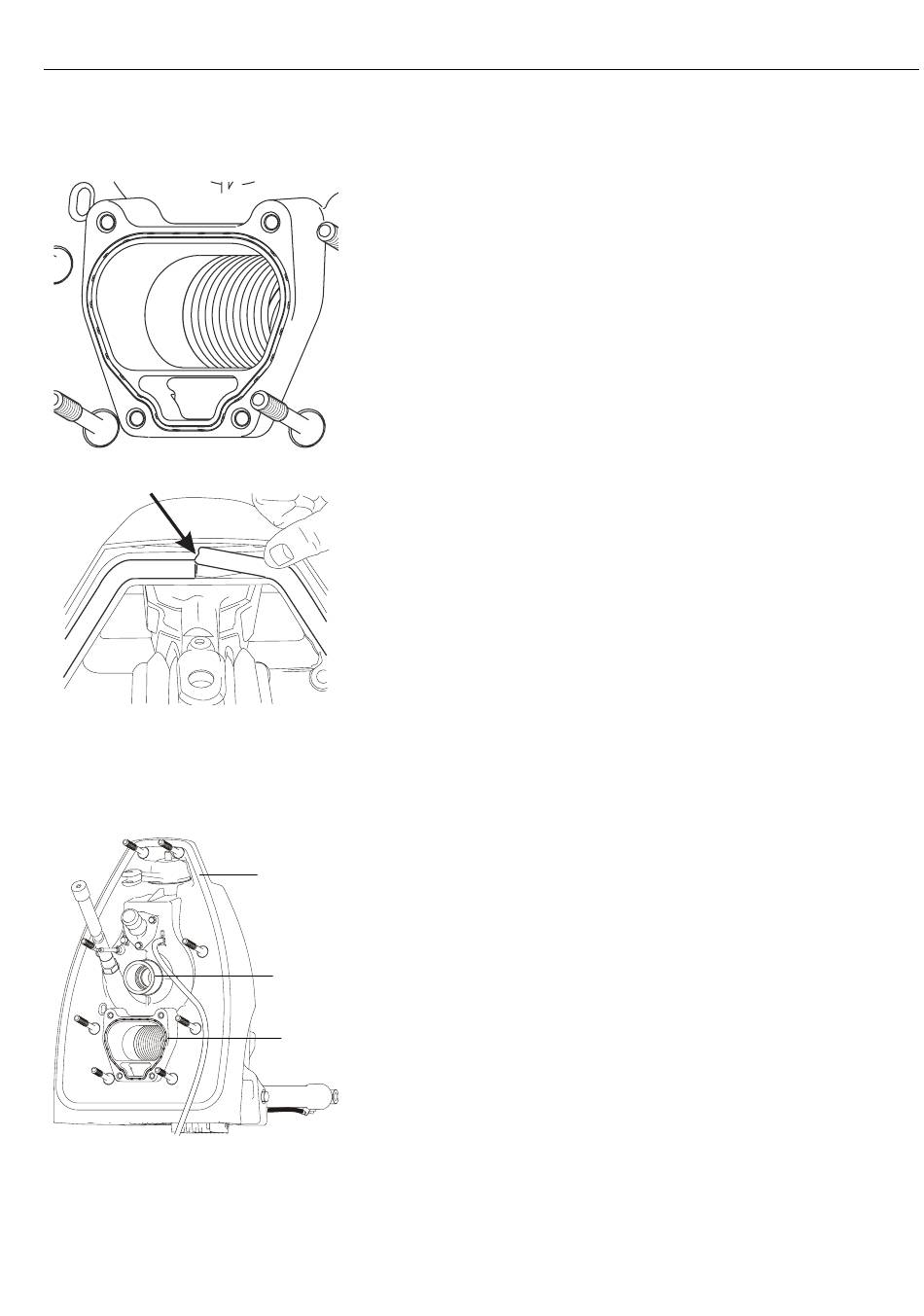

Remove and discard exhaust O-ring seal and large rubber
1.
transom seal.
Apply 3M Scotch Grip Rubber Adhesive 1300 in exhaust groove
2.
and install new O-ring seal.
Apply 3M Scotch Grip Rubber Adhesive 1300 to entire transom
3.
seal groove around gimbal housing. Start at top and firmly push
new seal into groove. Also apply 3M Scotch Grip Rubber Adhesive
1300 to the seal ends and butt them together to form a watertight
junction at top of gimbal housing.
Thoroughly clean outer transom surface where gimbal housing
1.
seal makes contact.
2. Make sure the outer transom seal I and exhaust outlet seal M, are
properly seated in their grooves. Check the transom shield
alignment tube K for nicks or burrs that would make installation
I
difficult.
K
M
Publ. 7746477 English 06-2008
