Trim Pump Installation

Publ. 7746477 English 06-2008

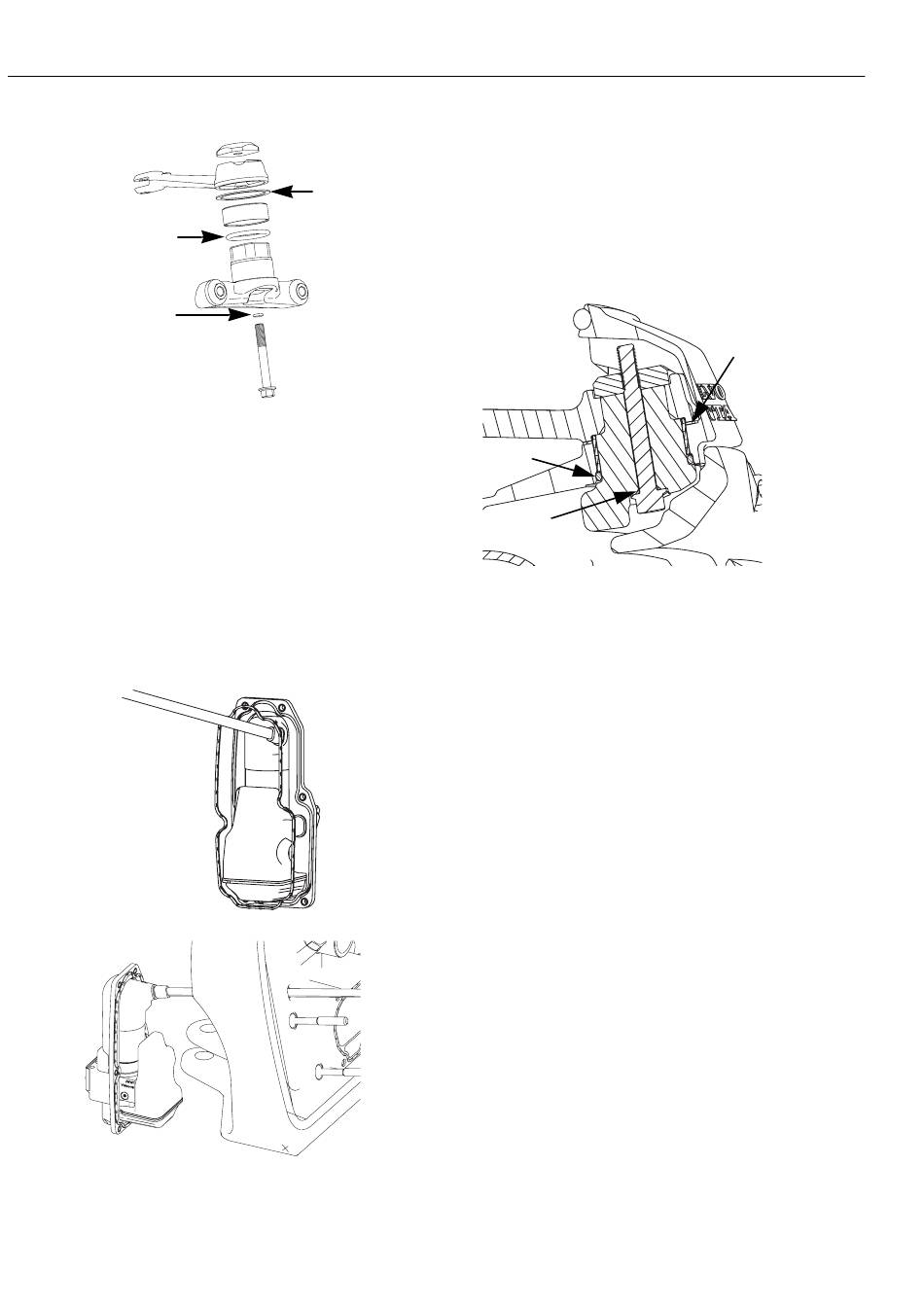

Install new O-ring (A) onto steering shaft. Place new thrust washer
4.
(B) over the steering shaft bushing in the transom shield. Install
the steering shaft into the steering shaft bushing and align the tiller
arm with the square post on the steering shaft. Place the tiller arm
B
nut on top of the tiller arm. Install a new O-ring (C) on the steering
shaft bolt. Apply Loctite 271 to the steering shaft bolt. Thread the
steering shaft bolt into the tiller arm nut and tighten to 81 ± 14 Nm
(60 ± 10 ft. lb).
Inspect the trim pump sealing surface of the transom shield for
1.
nicks, cuts, or corrosion that may cause leaking past the gasket. If
defects are found, the transom shield housing may need to be
replaced.
Install a new gasket part no. 3841015 in the trim pump groove.
2.
Feed wire through opening in transom shield.
3.
Transom Shield Assembly
A
C
B
