SMART-AVI DVX-PLUS Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Video Interface DVI-D
Single Link Range 480P,720i/p, 1080i/p
Video Data Rate 1.65 Gbps
1920 x 1200 @ 60 Hz, Resolution
Resolution
up to 1280 x 1024 min. 75H
USB
USB max data rate 12Mbps
USB compatibility 1.0 and 1.1
Type A (Transmitter)
Connector Type
Type B (Receiver)
OTHER
Universal Switch mode PSU
Power
(90-240V Input) 5VDC 2A
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
DVXU-TX 1 DVI-D and USB Transmitter
DVXU-RX 1 DVI-D and USB Receiver
PS5VD2A-WMT 2 PS5VD2A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

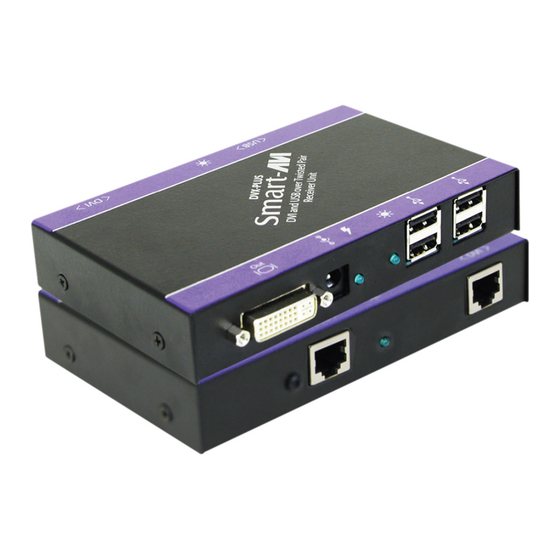

DVX-PLUS
DVI-D and USB Extender
via Twisted Pair
EXTEND USB 1.1 AND DVI-D
BEYOND THE LIMIT -
ALL THE WAY UP TO 225FT.
USING STANDARD
TWISTED PAIR CABLE
Quick Start Guide
