SMART-AVI DVX Plus User Manual

Technical Specifications

DVX PLUS SPECIFICATIONS
Video Interface Single Link Range
Video Data Rate 1.65 Gbps
1920 x 1200 @ 60 Hz, Reso
Resolution lution up to 1280 x 1024
min. 75H
Universal Switch mode PSU
Power Supply
(90-240V Input) 5VDC 1A
Input Interface DVI-D
USB Data
USB max data rate 12Mbps
USB compatibility 1.0 and 1.1
Type A (Transmitter)
Connector Type
Type B (Receiver)
© Copyright 2008 Smart-AVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties
of merchantability and fitness for any particular
purpose.
Smart-AVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced or translated into another language
with
out prior written consent from Smart-AVI.
For the complete manual, visit www.smartavi.com.
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020

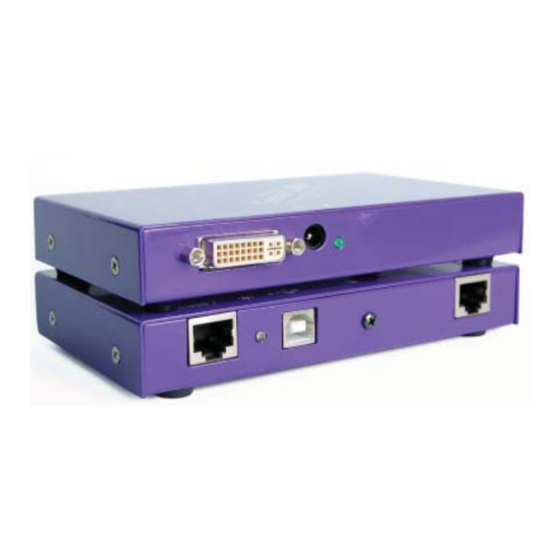

User Manual

DVX Plus
DVI-D and USB extension
via Twisted Pair
www.smartavi.com
