IMPORTANT: PLACE THE BASE IN FINAL POSITION IN THE ROOM OF USE, CONNECT THE POWER AND CHECK
THE OPERATION THEN STEP BY STEP FOLLOW THE TV BED ASSEMBLY INSTRUCTIONS BELOW, TO BUILD THE
TV BED AROUND THE SLEEPMOTION 200i BED BASE.
PLEASE NOTE:
TO CONTROL THE BED VIA AN APP, PLEASE GO TO THE APP STORE OR GOOGLE PLAY AND DOWNLOAD THE
'NAPP BY DREAMS'.
ONCE DOWNLOADED AND REGISTERED 'ADD DEVICE' THEN FOLLOW THE INSTRUCTIONS.
ONCE CONNECTED YOU WILL BE ABLE TO CONTROL THE TV LIFT VIA NAPP BY DREAMS.
OCASSIONALLY, DUE TO ATMOSPHERIC CONDITIONS OR WHEN RE-PLACING THE REMOTE CONTROL, ONE
NEEDS TO RE-PAIR THE SYSTEM:
1) TURN OFF ALL POWER.
2) PRESS UP OR DOWN SWITCH ON TV BED REMOTE KEEPING IT PRESSED.
3) TURN POWER BACK ON.
EITHER THE TV BED REMOTE CONTROL OR THE NAPP CAN BE USED TO RAISE OR LOWER THE TV LIFT.

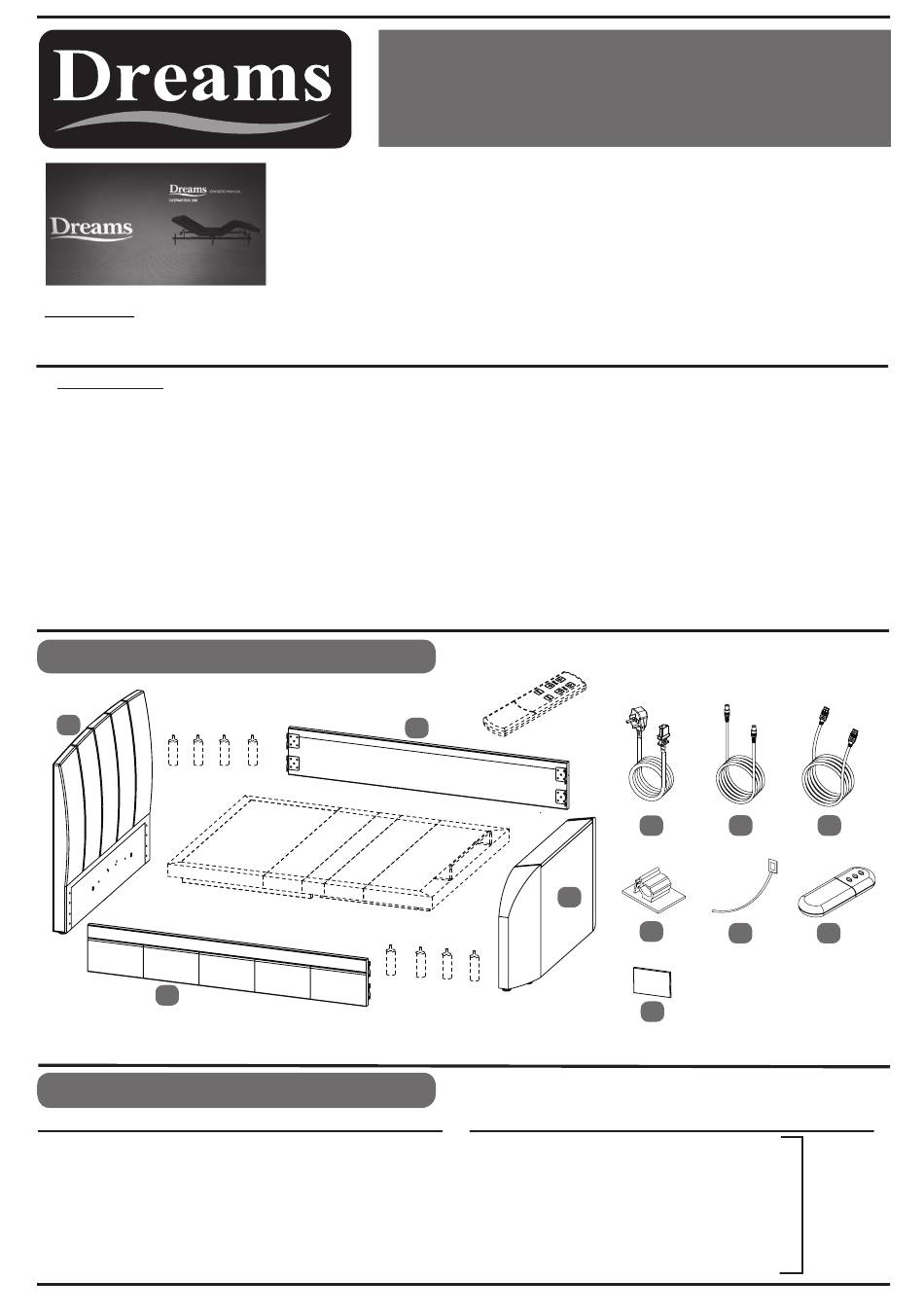

Parts Identification

1
3
PARTS SHOWN IN DOTTED LINES ARE PACKED IN THE SLEEPMOTION BED BASE CARTON

Parts Checklist

Ref.
Description
1
Headboard
2
Footboard
3
Side Rails
190112
SEOUL LIFESTYLE TV BED
BEFORE STARTING ASSEMBLY PLEASE REFER TO THE OWNERS MANUAL
SUPPLIED WITH YOUR SLEEPMOTION 200i BED BASE AND FOLLOW THE
INSTRUCTIONS TAKING NOTE OF ANY SAFETY PRECAUTIONS OR
OPERATIONAL SAFETY REQUIREMENTS OF THE INSTALLATION.
BUILD THE BED BASE FIRST USING ONLY THE EIGHT LONGER LEGS
6" (15 cm), SEE STAGE 1.
3
Qty
1
1
2
Page 1 of 13
SLEEPMOTION 200i
4
2
7
TV
Installation
Kit
10
Ref.
Description
4
Mains Power Lead - 3 mt
5
Aerial Lead - 4 mt
HDMI Lead - 5 mt
6
7
Cable Clips
8
Cable Ties
TV Lift Remote Control
9
TV Installation Kit
10
5
6
8
9
Qty
1
1
Pack Inside
1
accessory
5
box in
5
footboard
1
Pack 2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Seoul Sleepmotion 200i and is the answer not in the manual?

Questions and answers

Summary of Contents for DREAMS Seoul Sleepmotion 200i

  • Page 1 'NAPP BY DREAMS'. ONCE DOWNLOADED AND REGISTERED 'ADD DEVICE' THEN FOLLOW THE INSTRUCTIONS. ONCE CONNECTED YOU WILL BE ABLE TO CONTROL THE TV LIFT VIA NAPP BY DREAMS. OCASSIONALLY, DUE TO ATMOSPHERIC CONDITIONS OR WHEN RE-PLACING THE REMOTE CONTROL, ONE NEEDS TO RE-PAIR THE SYSTEM: 1) TURN OFF ALL POWER.
  • Page 2 Fittings Checklist HARDWARE NEEDED FOR FIXING SIDE RAILS TO HEADBOARD & FOOTBOARD PACKED IN SIDE RAIL PACK 3 - HARDWARE PACK (A) Description Ref. Description Bolts (M8x30mm) for fitting side rails (3&4) Flat Washers (for M8 bolts) & & Spring Washers (for M8 bolts) Allen Key (for M8 bolt) Care &...
  • Page 3 Prepare the Head & Foot Ends for assembly Stage 10mm Assemble Head End and one Side Rail using hardware Pack 'A' Stage 20mm Page 3 of 13...
  • Page 4 Raise the Head and Foot Ends of the Bed Base Stage Position Foot End and connect Side Rail brackets.. Stage Page 4 of 13...
  • Page 5 Electrical & Cable Connections Stage Connect Main Power Lead (4) to your wall socket - for safety this must be an earthed power supply. Stage Press the “UP” button to raise the TV lift. Page 5 of 13...
  • Page 6 Note: For illustration purposes Stage only, TV connections may vary. TIP: BEFORE FITTING THE TV, PUSH CABLES THROUGH EACH DUCT FROM THE TOP. CHOOSE THE BEST SIDE TO USE DEPENDING ON WHERE THE CONNECTION PORTS ARE ON BACK OF YOUR TV. NEVER CROSS CABLES FROM ONE SIDE TO THE OTHER.
  • Page 7 TV Installation - Normal Vesa Fixing IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Stage Screw-Washer sets Counter-Sunk Counter-Sunk Screws a x2 (M8x25mm) Use (M6x12mm) Screws (M4x12mm) 5mm Allen Key (D) b x2 Allen Key (4mm) Allen Key (2.5mm) Loosen Tighten Page 7 of 13...
  • Page 8 TV Installation - Vesa 100x100 Stage REMOVE CROSS-BRACKET 100mm AND FIX DIRECTLY TO BACK OF TV IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Stage Screw-Washer sets Counter-Sunk Counter-Sunk Screws a x2 (M8x25mm) Use Screws (M4x12mm) (M6x12mm) 5mm Allen Key (D) b x2 Allen Key (4mm)
  • Page 9 TV Installation - Vesa 100x100 Stage Loosen Tighten Page 9 of 13...
  • Page 10 Electrical & Cable Connections TV Power Lead supplied with your TV Stage Note: For illustration purposes only, TV connections may vary. Keep wires tight - peel off cover from cable clips & adhere to back of TV. PLUG IN - KEEP ALL CABLES TIGHT - USE CLIPS &...
  • Page 11 Electrical & Cable Connections Press the “DOWN” Stage button to lower the TV lift. TV Power Lead supplied with your TV Stage Page 11 of 13...
  • Page 12 Make sure everything is working properly then fit second Side Rail (3) Stage & 100% Stage 30mm 20mm Page 12 of 13...
  • Page 13 TV BED SAFETY INFORMATION GENERAL INFORMATION It is very important not to place any vessel containing liquids, e.g. drinks or vase of flowers, on top of the TV footboard which may accidentally spill and enter the TV compartment as this could cause damage to the TV and/or the TV lifting equipment.
