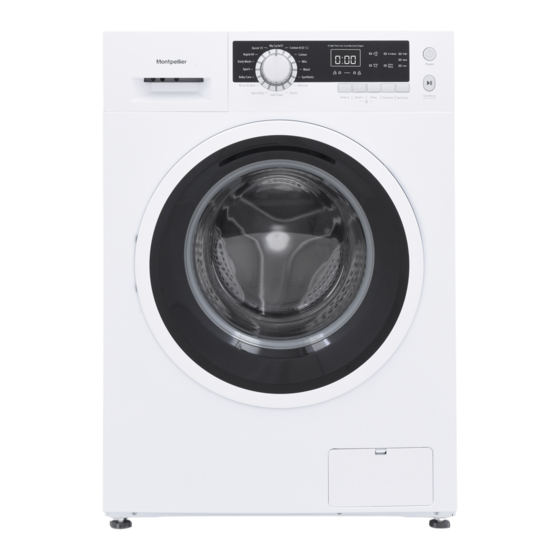

Freestanding 9kg Washing Machine
MW9140P
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
- White - Inverter Motor
Advertisement
Table of Contents
Related Manuals for montpellier MW9140P
Summary of Contents for montpellier MW9140P
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding 9kg Washing Machine MW9140P - White - Inverter Motor Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Washing Machine. Our Washers have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Washer to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS Safety Instructions Safety Instructions ..........Installation Product Description ..........Installation ............Operations Quick Start ............. Before Each Wash ............Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............. Programmes ............Washing Programmes Table ........Maintenances Cleaning And Care ..........Trouble Shooting ............ -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 5 SAFETY INSTRUCTIONS • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Before any maintenance the device, unplug the appliance from the mains. • Always unplug the machine and turn off the water supply after use.
- Page 6 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas. • Remove all packages and transport bolts before using the appliance.
- Page 7 SAFETY INSTRUCTIONS • Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result. Risk of damaging appliance! • Your product is only for home use and is only designed for the textiles suitable for machine washing. •...
- Page 8 SAFETY INSTRUCTIONS • Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch,nail,screw or stone etc. may cause serious damages to this machine. • Please check whether the water inside the drum has been drained before opening its door.Please do not open the door if there is any water visible.
-
Page 9: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Drain hose support Owner’s manual... -
Page 10: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 11 INSTALLATION Levelling the washing machine ！ Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 12 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. • To prevent water leaks at the joints, water supply hose water Inlet valve either 1 or 2 nuts (depending on your machine’s specifications) are supplied in the packaging with the hose.
-
Page 13: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... -
Page 14: Before Each Wash
OPERATIONS Before Each Wash • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 15: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Dam-board Dam-board Liquid detergent Powder detergent Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Programme Programme Cotton Eco Self Clean... -
Page 16: Control Panel
OPERATIONS Control Panel Model: MW9140P Rinse Note! • The chart is for reference only, Please refer to your machine panel for info. • Power Start/Pause Product is on/off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. - Page 17 OPERATIONS Option Pre Wash Pre Wash The Prewash function can give an extra wash before the main wash cycle. This is suitable for washing heavily soiled items. Please put detergent into compartment 1 for pre-wash. Extra Rinse Extra Rinse The laundry will undergo an extra rinse once selected. Delay Set the Delay function: 1.
-
Page 18: Other Functions
OPERATIONS Model: MW9140P Programme Programme Default Speed(rpm) Default Speed(rpm) 1400 1400 Cotton Eco Self Clean Cotton Wool 1200/1400(CN) Quick15' Delicate Rapid45' 1000 Sport Daily Wash 1000 Rinse&Spin Baby Care 1000 1000 Spin Only 1000 1200 Synthetic Duvet... - Page 19 OPERATIONS Child Lock To avoid mis operation by children. Speed Delay Choose the Programme Press [ ] and [ Start Speed Delay 3 sec. till buzzer beep. Caution! • Press the two buttons for 3sec to remove the child lock. •...
-
Page 20: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of Cotton cotton or linen. Wash synthetic articles, for example: shirts, coats etc. Synthetic While washing knitted textiles, detergent quantity shall be reduced due to its loose string construction and a tendency to form bubbles easily.. -
Page 21: Washing Programmes Table
OPERATIONS Washing Programmes Table Model: MW9140P (Please refer to 9.0 kg specification below) Temp. Soil Programme Load(kg) Default Time Level °C 10.0 10.0 Default 1200 1400 1400 1400 1400 Cotton Eco 10.0 0:58 0:58 0:58 0:58 0:58 Cotton — 10.0... -
Page 22: Maintenances
MAINTENANCES Cleaning And Care ！ Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 23 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is a drop in water pressure Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Note!
- Page 24 MAINTENANCES Cleaning The Drain Pump Filter ！ Warning! Be careful of potential hot water • Allow the water to cool if hot • • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 25: Trouble Shooting
MAINTENANCES Trouble Shooting The appliance does not start/work or stops during operation. Firstly try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly Check if the clothes are stuck cannot start up Door can’t be... -
Page 26: Technical Specifications
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz(EU/IR) 220-240 ~,50Hz(AR) MAX.Current Standard Water Pressure 0.05MPa~1MPa Model Rated Power Washing Capacity Dimension Net Weight (W*D*Hmm) MW9140P 2000W 9.0kg 595*565*850 71kg... -
Page 27: Product Fiches
MAINTENANCES Model MW9140P Capacity Spin Speed 1400 rpm Energy efficiency class A +++ Annual energy consumption 196 kWh /annual Power consumption of off - mode 0.5W Power consumption of Left on -mode 1.0W Annual water consumption 11880L /annual Spin- drying efficiency class... - Page 28 Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption. Montpellier Domestic Appliances Ltd: Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU.
- Page 29 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 30 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
