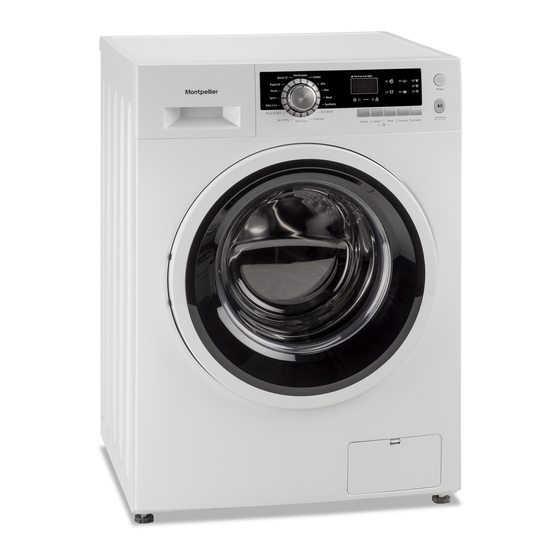

Freestanding Washing Machine
MW7145 - MW8145 - MW9145 - 1400rpm
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MW7145
Summary of Contents for montpellier MW7145
- Page 1 Installation and Operating Instructions Freestanding Washing Machine MW7145 - MW8145 - MW9145 - 1400rpm Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Washing Machine Our Washing Machines have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Washing Machine to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions..........INSTALLATION Product Description..........Installation............OPERATIONS Quick Start ............Before Each Wash..........Detergent Dispenser........... Control Panel............Programme Options..........Function Options..........Programme Guide..........Programme Matrix..........Wash Load Table..........20 MAINTENANCE Cleaning And Care ..........Trouble Shooting ..........Technical Specifications ........ -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 5 SAFETY INSTRUCTIONS The new hose supplied with the appliance is to be used and the • old hose/s should be discarded Before carrying out any maintenance please ensure that the • appliance is unplugged from the mains supply. Always unplug the appliance and turn off the water supply after •...
- Page 6 SAFETY INSTRUCTIONS The glass door may become very hot during operation. Keep • children and pets away from the appliance during use. Remove all packaging and transit bolts before using the • appliance. Failure to do so could result in serious damage and invalidate your guarantee.
- Page 7 SAFETY INSTRUCTIONS Risk of damaging the appliance ! Remove all packaging and transit bolts before using the appliance • otherwise serious damage may result ! This washing machine is only for domestic use and is only • designed for the textiles suitable for a domestic washing machine. Do not climb or sit on the appliance at all.
- Page 8 SAFETY INSTRUCTIONS Make sure that all pockets are checked and emptied. Sharp or • rigid items such as coins, jewellery, nails and screws etc may cause serious damage to the appliance and clothing. This will also not be covered under your guarantee. Please check whether the water inside the drum has drained •...
-
Page 9: Installation
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Drain hose support Owner’s manual... -
Page 10: Installation
INSTALLATION Installation ！ Warning! • Stability is extremely important for quiet and vibration free running. • Make sure the appliance doesn't stand on the mains cable. Before installing the appliance ensure that all below points are adhered to: Install on a dry, rigid and level surface. Avoid direct sunlight. - Page 11 INSTALLATION Levelling the washing machine ！ Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 12 INSTALLATION Connect the angled end of the cold water inlet hose to the cold water inlet valve at the rear of the appliance and tighten securely in a clockwise motion. water supply hose water Inlet valve Drain Hose ！ ！ Warning! Warning! Do not kink or extend the drain hose...
-
Page 13: Operations
OPERATIONS Quick Start Caution! Before using the appliance make sure that it is correctly installed. • Before washing for the first time it is advisable to run the appliance through one • complete wash cycle at a minimum temperature of 40°C without any clothes and using half your usual amount of detergent. -
Page 14: Before Each Wash
OPERATIONS Note! • 1. If default is selected, step 3 can be skipped. The function button line chart is for reference only, please refer to real product as standard. 3. After Washing Buzzer beep or “End” on display. Before Each Wash The necessary ambient temperature for operation of your washing machine is between •... -
Page 15: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Pull out the dispenser Caution! Detergent should only be added to the Pre-wash compartment if pre-wash has • been selected as an option Programme Programme Sterlilzation Self Clean Cotton Spin Only Rinse &... -
Page 16: Control Panel
OPERATIONS Control Panel Model: MW7145 - MW8145 - MW9145 Note! The chart is for reference only, Please refer to your machine panel for info. • Power Start/Pause Product is on/off. Press the button to start or pause the washing cycle. -
Page 17: Programme Options
OPERATIONS Programme Options Press the Temp button to change the required wash temperature if a temperature other than the default is required (Cold,20,30,40,60,90) Press the speed button to change the required speed if a spin speed other than the default is required (0,400,600,800,1000,1200,1400) Programme Programme Default Speed(rpm) -
Page 18: Function Options
OPERATIONS Function Options Use the function button to select the required functions Function available with each wash cycle - refer to the programme guide for the options available. Delay Speed Choose the Programme Start Press [Speed] and [ Delay 3 sec. till buzzer beep. Caution! •... - Page 19 OPERATIONS Function Options Pre Wash Pre Wash The Pre-wash function allows you to give heavily soiled items a pre-wash before the main washing programme takes place. When using this function put detergent in compartment I of the soap drawer. Extra Rinse Extra Rinse The laundry will undergo an extra rinse once this option is selected.
-
Page 20: Programme Guide
OPERATIONS Programme Guide lease refer to your wash care label in all garments and choose the suitable programme from the list below Programmes Designed for hard wearing textiles,cotton garments or clothes that Cotton require a high agitation wash such as towels and sheets. Medium agitation wash designed for synthetic fabrics such as Synthetic nylon, polyester and acrylic blended items... -
Page 22: Wash Load Table
OPERATIONS Wash Loading Table Model: MW7145 - MW8145 - MW9145 Note! Please refer to the below chart for the loading guidelines of your specific model according to the programme selected Programme Load(kg) Programme Load(kg) Default Self Clean – – –... -
Page 23: Maintenance
MAINTENANCE Cleaning And Care ！ Warning! Before starting any maintenance tasks on your appliance, please unplug and • make sure the water supply is turned off Cleaning The Cabinet Proper maintenance of the washing machine can extend its working life. All surfaces can be cleaned with diluted non-abrasive neutral detergents where necessary. - Page 24 MAINTENANCES Cleaning The Inlet Filter Note! Inlet filter must be checked and cleaned if there is a drop in the inlet pressure • Washing the inlet hose filter : 1.Close the tap. 2.Remove the water supply hose from the tap. 3.Clean the filter.
- Page 25 MAINTENANCES Cleaning The Drain Pump Filter ！ Warning! Be careful as the water left in the appliance may be very hot !! • Allow water to cool before attempting to drain the washer or cleaning • the filter. Unplug the appliance to avoid any risk of electric shock while removing •...
-
Page 26: Troubleshooting
MAINTENANCES Troubleshooting If your appliance does not start or it stops during operation, first try and find a solution below,if not contact the service centre. Description Reason Solution Washing machine Check the door is closed and no Door is not closed properly garments are stopping it from closing doesn't start up Disconnect the power, restart... -
Page 27: Technical Specifications
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz(EU/IR) MAX.Current Standard Water Pressure 0.05MPa~1MPa Model Rated Power Washing Capacity Dimension Net Weight (W*D*Hmm) MW7145W 2000W 7.0kg 595*495*850 61kg MW8145W 8.0kg 68kg 595*565*850 2000W MW9145W 2000W 9.0kg 595*565*850 71kg... -
Page 28: Product Fiches
MAINTENANCES Product fiche concerning to EN 60456:2016 With (EU)No.1061/2010. MW7145W Energy efficiency class on a scale from A+++ A+++ (most efficient) to D (least efficient ) the standard Energy consumption 155 cotton standard 60 cotton ℃ 0.75kwh standard 60 cotton ℃... - Page 29 MAINTENANCE MW7145W 59.9 0.516 1400 1400 1400 ： 3 28 ： 2 42 2：42...
- Page 30 MAINTENANCE Product fiche concerning to EN 60456:2016 With (EU)No.1061/2010. MW8145W Energy efficiency class on a scale from A+++ A+++ (most efficient) to D (least efficient ) the standard Energy consumption 175 cotton standard 60 cotton ℃ 0.82kwh standard 60 cotton ℃...
- Page 31 MAINTENANCE MW8145W 56.5 60.0 0.545 1400 1400 1400 ： 3 39 ： 2 48 2：48...
- Page 32 MAINTENANCE Product fiche concerning to EN 60456:2016 With (EU)No.1061/2010. MW9145W Energy efficiency class on a scale from A+++ A+++ (most efficient) to D (least efficient ) the standard Energy consumption 174 cotton standard 60 cotton ℃ 0.85kwh standard 60 cotton ℃...
- Page 33 MAINTENANCE MW9145W 56.5 59.9 0.570 1400 1400 1400 ： 3 49 ： 2 54 2：54...
- Page 34 MAINTENANCES Note! • Programme setting for testing in accordance with applicable standard En60456. • When using the test programmes, wash the specified load using the maximum spin speed. • The actual parameters will depend on how the applicance is used,and maybe different with the parameters in above mentioned table.
- Page 35 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 36 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 SJU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
