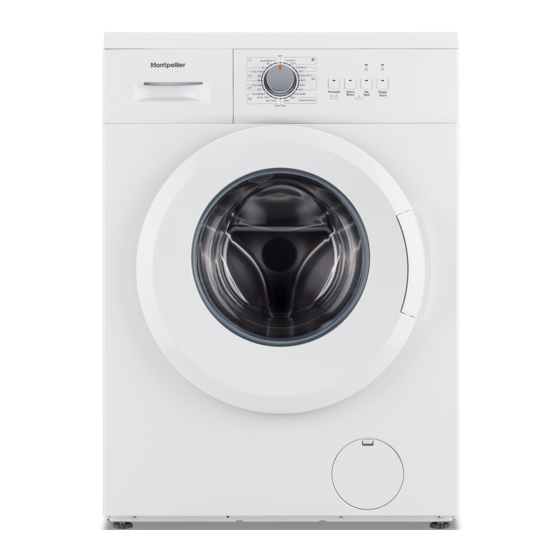

Freestanding Washing Machine
MW6105W & MW6215W
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
- White - 6kg
Advertisement
Chapters
Table of Contents
Related Manuals for montpellier MW6105W
Summary of Contents for montpellier MW6105W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Washing Machine MW6105W & MW6215W - White - 6kg Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Washing Machine. Our Washers have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Washer to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATIONS Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............Programmes............Washing Programmes Table ........MAINTENANCES Cleaning And Care ..........Trouble Shooting ............ -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 5 SAFETY INSTRUCTIONS • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Before any maintenance the device, unplug the appliance from the mains. • Always unplug the machine and turn off the water supply after use.
- Page 6 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas. • Remove all packages and transport bolts before using the appliance.
- Page 7 SAFETY INSTRUCTIONS • Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result. Risk of damaging appliance! • Your product is only for home use and is only designed for the textiles suitable for machine washing. •...
- Page 8 SAFETY INSTRUCTIONS • Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch,nail,screw or stone etc. may cause serious damages to this machine. • Please check whether the water inside the drum has been drained before opening its door.Please do not open the door if there is any water visible.
-
Page 9: Installation
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! actual • The product line chart is for reference only, please refer to product as standard. Accessories Transport Supply hose Owner’s manual hole... -
Page 10: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product is not stood on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 11 INSTALLATION Levelling the washing machine ！ Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 12 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. • To prevent water leaks at the joints, water supply hose water Inlet valve either 1 or 2 nuts (depending on your machine’s specifications) are supplied in the packaging with the hose.
-
Page 13: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... - Page 14 OPERATIONS Before Each Wash • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
-
Page 15: Detergent Dispenser
OPERATIONS Detergent Dispenser Prewash detergent Main wash detergent Softener Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Programme Programme Delicate 30 °C Cotton 30 °C Cotton 40 °C Delicate Cotton 60 °C... -
Page 16: Control Panel
OPERATIONS Control Panel Note! • The chart is for reference only, Please refer to real product as standard. Start/Pause Product is switched off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. - Page 17 OPERATIONS Option Prewash: The Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. Extra Rinse: The laundry will undergo extra rinse once after you select it. No Spin: It will not spin if you choose this function.
-
Page 18: Other Functions
OPERATIONS Other Functions Mute the buzzer Prewash Press 3 sec. Press the [Prewash]button for 3sec.the buzzer is mute. Choose the Programme the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset. Caution! •... -
Page 19: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. Programmes Synthetic Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. Delicate For delicate washable textiles... -
Page 20: Washing Programmes Table
OPERATIONS Washing Programmes Table Model: MW6105W & MW6215W Programme Load(kg) Temp. Default Time °C Default Cold Synthetic 2:20 Synthetic ℃ 2:20 Cold Cold Wash 1:00 Cold Wash 20℃ 1:01 Cotton 30℃ 2:40 Cotton 40℃ 2:40 Cotton 60℃ 2:45 Cotton 90℃... -
Page 21: Maintenances
MAINTENANCES Cleaning And Care ！ Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 22 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Washing the filter in washing machine: Screw off the inlet pipe from the backside of the machine.
- Page 23 MAINTENANCES Cleaning The Drain Pump Filter ！ Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 24: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... -
Page 25: Technical Specifications
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz MAX.Current 0.05MPa~1MPa Standard Water Pressure Dimension Washing Net Weight Rated Power Model Capacity (W*D*Hmm) MW6105W 6.0kg 595*400*850 52kg 2000W MW6215W 57kg 2050W 6.0kg 595*400*850 10 26... -
Page 26: Product Fiches
PRODUCT FICHE MW6105W/MW6215W A+++ the standard cotton standard 60 ℃ cotton 0.76kwh standard 60 ℃ cotton 0.59kwh standard 40 ℃ cotton 0.60kwh 9240 the standard cotton 1200 Intensive Intensive the standard 60 ℃ cotton 270min the standard 60 ℃ cotton... - Page 27 PRODUCT FICHE MFE60-S1202/C31-EU(NE) 1200 1200 1200...
- Page 28 MAINTENANCES Note! • Programme setting for testing in accordance with applicable standard En60456. • When using the test programmes, wash the specified load using the maximum spin speed. • The actual parameters will depend on how the applicance is used,and maybe different with the parameters in above mentioned table.
- Page 29 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 30 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
