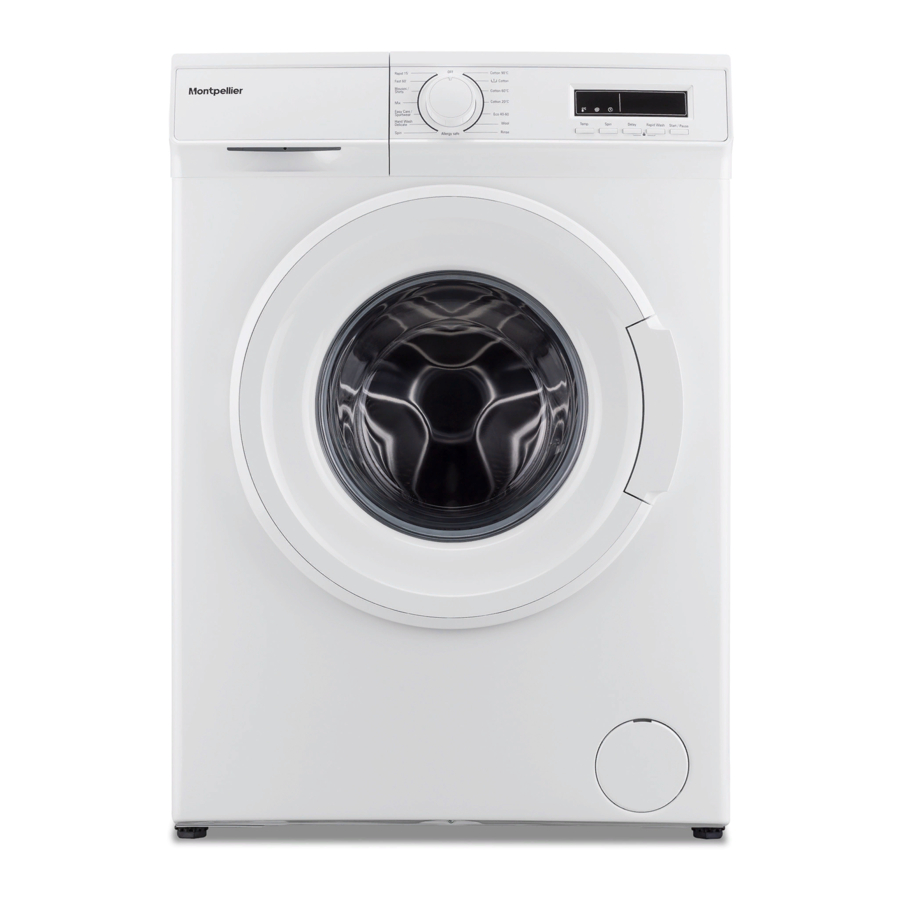

7kg 1400 Spin Washing machine
MW7141W/K/S
White | Black | Silver
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MW7141W
Summary of Contents for montpellier MW7141W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 7kg 1400 Spin Washing machine MW7141W/K/S White | Black | Silver Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................6 1.3 Packaging and Environment...................7 1.4 Savings Information ......................7 2. TECHNICAL SPECIFICATIONS ..................9 2.1 General Appearance.......................9 2.2 Technical Specifications ....................9 3. INSTALLATION .......................10 3.1 Removing the Transit Bolts...................10 3.2 Adjusting the Feet / Adjusting Adjustable Stays............10 3.3 Electrical Connection ....................10 3.4 Water Inlet Hose Connection ................ -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS Operating voltage / frequency (V/Hz) (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2100 Maximum washing capacity 7. 0 (dry laundry) (kg) • Do not install your machine on a carpet or any surface that would prevent the ventilation of its base. -
Page 5: General Safety Warnings
Read this user manual carefully. Your machine is for domestic use only. Using it for anything other than domestic purposes will cause your warranty to be cancelled. This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 6 • Some water may be left in your Washing Machine as a result of quality checks during production. This will not affect the operation of your Washing Machine. • The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine. • Keep the packaging materials in a place where children cannot reach them, or dispose of them appropriately. • Use pre-wash programs only for very dirty laundry. Never open the detergent drawer while the machine is running. • In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs. Always contact an authorised service agent. • Do not exceed the maximum load for the washing programme you have chosen. Never force the door open when your Washing Machine is running. • Washing laundry containing flour may damage your machine. • Please follow the manufacturers’ instructions regarding the use of fabric conditioner or any similar products that you intend to use in your Washing Machine. • Make sure that the door of your Washing Machine is not restricted and can be opened fully.
- Page 7 Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running. The high temperatures involved pose a burn risk. RISK OF DEATH FROM ELECTRICAL CURRENT •...
- Page 8 secured. Make sure the plug in your sink does not block the plug hole. Danger of Fire • Do not store inflammable liquids near your machine. • The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine. • Never use products that contain solvents in your machine. • Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins. Risk of fire and explosion Risk of falling and injury • Do not climb on your Washing Machine. • Make sure hoses and cables do not cause a trip hazard. • Do not turn your Washing Machine upside down or on its side. • Do not lift your Washing Machine using the door or detergent drawer.
-
Page 9: During Use
and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children. 1.2 During Use • Keep pets away from your machine. • Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. • Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. • This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards... -
Page 10: Packaging And Environment
sources of damage. • Please do not throw away this user manual; keep it for future reference and pass it onto the next owner. NOTE: Specifications for the machine may vary depending on the product purchased. 1.3 Packaging and Environment Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production. 1.4 Savings Information Some important information to get the most efficient use out of your machine: • Do not exceed the maximum load for the washing programme you have chosen. This will allow your machine to run in energy saving mode. • Do not use the pre-wash feature for lightly soiled laundry. This will help you save on the amount of electricity and water consumed. EN - 7... - Page 11 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. EN - 8...
-
Page 12: Technical Specifications
2. TECHNICAL SPECIFICATIONS 2.2 Technical Specifications Operating voltage / (220-240) frequency V~/50Hz (V/Hz) Total current Maximum: Water 1 Mpa pressure Minimum : (Mpa) 0. 1 Mpa Total power 2100 Maximum dry laundry capacity (kg) Spinning revolution 1400 (rev / min) Programme number 2.1 General Appearance Dimensions 1. -
Page 13: Installation
3. INSTALLATION 3.2 Adjusting the Feet / Adjusting Adjustable Stays 3.1 Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface. • You can level your machine using the adjustable feet. • Loosen the plastic locking nut. 1. Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty. -
Page 14: Water Inlet Hose Connection
• Your Washing Machine requires a or double water inlet connection (hot 220-240V, 50Hz mains supply. and cold) depending on the machine specifications. The white capped hose • The mains cord of your washing should be connected to cold water inlet machine is equipped with an earthed and red capped hose to the hot water plug. This plug should always be inlet (if applicable). inserted to an earthed socket of 13 • To prevent water leaks at the joints, amps maximum. either 1 or 2 nuts (depending on your • If you do not have a suitable socket and machine’s specifications) are supplied fuse conforming with this, please ensure in the packaging with the hose. Fit these the work is carried out by a qualified nuts to the end(s) of the water inlet hose electrician. that connect to the water supply. •... -
Page 15: Water Discharge Connection
4.1 Detergent Drawer NOTE: Your Washing machine must only be connected to your water supply using the supplied new fill hose. Old hoses must not be reused. 3.5 Water Discharge Connection • Connect the water drain hose to a standpipe or to the outlet elbow a household sink, using additional equipment. • Never attempt to extend the water drain hose. • Do not put the water drain hose from your machine into a container, bucket or bathtub. • Make sure that the water drain hose is not bent, buckled, crushed or extended. •... -
Page 16: Sections
4.2 Sections 4.3 Program Dial Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. • To select the desired programme, turn the programme dial either clockwise or Fabric conditioner, starch, detergent anti-clockwise until the marker on the compartment: programme dial points to the chosen programme. • Make sure that the programme dial is set exactly to the programme you want. 4.4 Electronic Display This compartment is for softeners, conditioners or starch. Follow the instructions on the packaging. If softeners leave residue after use, try diluting them or using a liquid softener. Pre-wash detergent compartment: 1. -
Page 17: Using Your Washing Machine
The display panel shows “End” when the CAUTION: selected programme is complete. The Any malfunctions display panel also indicates if a fault has which occur due to foreign materials occurred with your machine. damaging your machine are not covered by the warranty. 4. Close zips and fasten any hooks and eyes. 5. USING YOUR WASHING MACHINE 5. Remove the metallic or plastic hooks of curtains or place them in a washing net or bag. -
Page 18: Adding Detergent To The Machine
• Open the door of your machine. and the rest in compartment II. • Spread your laundry evenly in the • Use detergents produced for automatic machine. washing machines. Follow the NOTE: manufacturer’s instructions on the Take care not to exceed amount of detergent to use. the maximum load of the drum as this will give poor wash results and cause creasing. • In areas of hard water, more detergent Refer to the washing programme tables for will be required. information on load capacities. • The amount of the detergent required The following table shows approximate will increase with higher washing loads. weights of typical laundry items: • Put softener in the middle compartment LAUNDRY TYPE WEIGHT (gr) -
Page 19: Half-Load Detection System
1. Temperature Selection 5.6 Half-Load Detection System Your machine features a half-load detection system. If you put less than half the maximum Temp. load of laundry into your machine it will automatically set the half-load function, regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy. Use the washing water temperature adjustment button to alter the automatically programmed washing water temperature. 5.7 Additional Functions When you select a programme the maximum temperature for that programme... - Page 20 To adjust the spin speed between the 4. Rapid Wash maximum spin speed and the cancel spinning option (--), press the Spin speed button until the desired speed is displayed. If you have skipped the spin speed you Rapid wash. want to set, keep pressing the spin speed adjustment button until the desired spin speed is displayed again.
-
Page 21: Cancelling The Programme
Child Lock. 5.9 Programme End Your machine will stop by itself as soon as The Child Lock function allows you to lock the programme you have selected finishes. the buttons so that the wash cycle you have • “END” will flash on the electronic chosen cannot be changed unintentionally. display. To activate child lock, press and hold button 3 and 4 simultaneously for at least •... -
Page 22: Programme Table
6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. (Underwear, COTTON 90°C 90° linen, tablecloth, towel (maximum 3.5 kg), bedclothes, etc.) Dirty cotton and flax textiles. (Underwear, linen, COTTON Pre-Wash 60° 1&2 tablecloth, towel (maximum 3.5 kg), bedclothes, etc.) Dirty cotton and flax textiles. (Underwear, linen, COTTON 60°C 60° tablecloth, towel (maximum 3.5 kg), bedclothes, etc.) Less dirty, cotton and linen textiles. (Underwear, COTTON 20°C 20° bedsheet, tablecloth, towel (max. 2,0 kg) bedcloth, etc.) Dirty cotton and flax textiles. (Underwear, linen, ECO 40-60 40° tablecloth, towel (maximum 2.0 kg), bedclothes, etc.) WOOL 30°... - Page 23 • The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. • Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
-
Page 24: Important Informations
6.1 Important Informations • Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage. • We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme. -
Page 25: Cleaning And Maintenance
7. CLEANING AND 7.2 Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1 Warning sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months. Turn your mains power supply off and remove • Unscrew the water inlet hose(s) from the plug from the socket the Washing Machine. • To remove the water inlet filter from the before carrying out water inlet valve, use a pair of long- maintenance and cleaning nosed pliers to gently pull on the plastic bar in the filter. of your machine. •... -
Page 26: Pump Filter
7.3 Pump Filter After cleaning, re-fit the filter by inserting it and turning clockwise. Meet the holes on the front panel side. 6. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance. 7.4 Detergent Drawer The use of detergent may cause residual build up in the detergent drawer over time. -
Page 27: Flush Stopper / Body / Drum
8. FLUSH STOPPER / BODY / DRUM 1. Flush stopper Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 2. Body Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth. 3. Drum Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to the formation of rust stains in the drum. To clean such rust stains, use a non-chlorine... -
Page 28: Troubleshooting
9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. • Turn off the water supply. FAULT POSSIBLE CAUSE TROUBLESHOOTING Machine not plugged in. Plug machine in. Fuse is faulty. Replace the fuse. No mains power supply. Check mains power. Your machine does not start. Start/Pause button not pressed. Press the Start/Pause button. Programme dial ‘stop’ position. Turn the programme dial to the desired position. -
Page 29: Automatic Fault Warnings And What To Do
FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height. loaded with water, water low for the machine. (**) . discharges. No water appears in the No fault. Water is in the unseen ..... drum during washing. -
Page 30: Product Information Sheet
Model identifier: MW7141K/S/W General product parameters: Parameter Value Parameter Value Rated capacity (kg) Dimensions in cm Height Width Depth 80,0 Energy efficiency class Washing efficiency 1,04 Rinsing effectiveness index (g/kg) Energy consumption in 1,082 Water consumption in kWh per cycle, based on litre per cycle, based on the eco 40-60 programme. -
Page 31: Here For You
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 32 The minimum period which must supply the spare parts for the household washing machine is 10 years. Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
