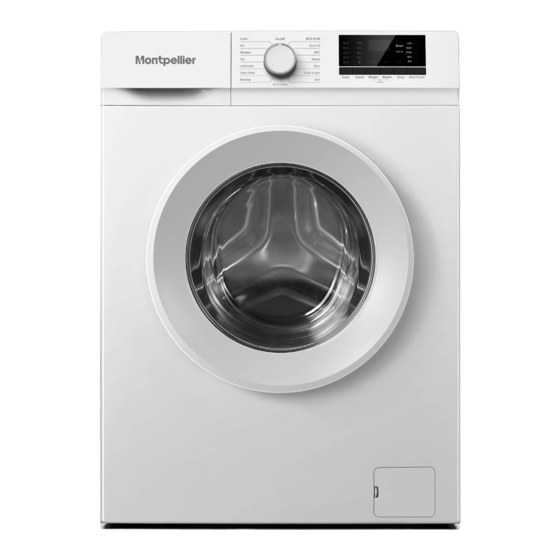

Freestanding 6kg 1000rpm Washing Machine
MWM610W - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MWM610W
Summary of Contents for montpellier MWM610W

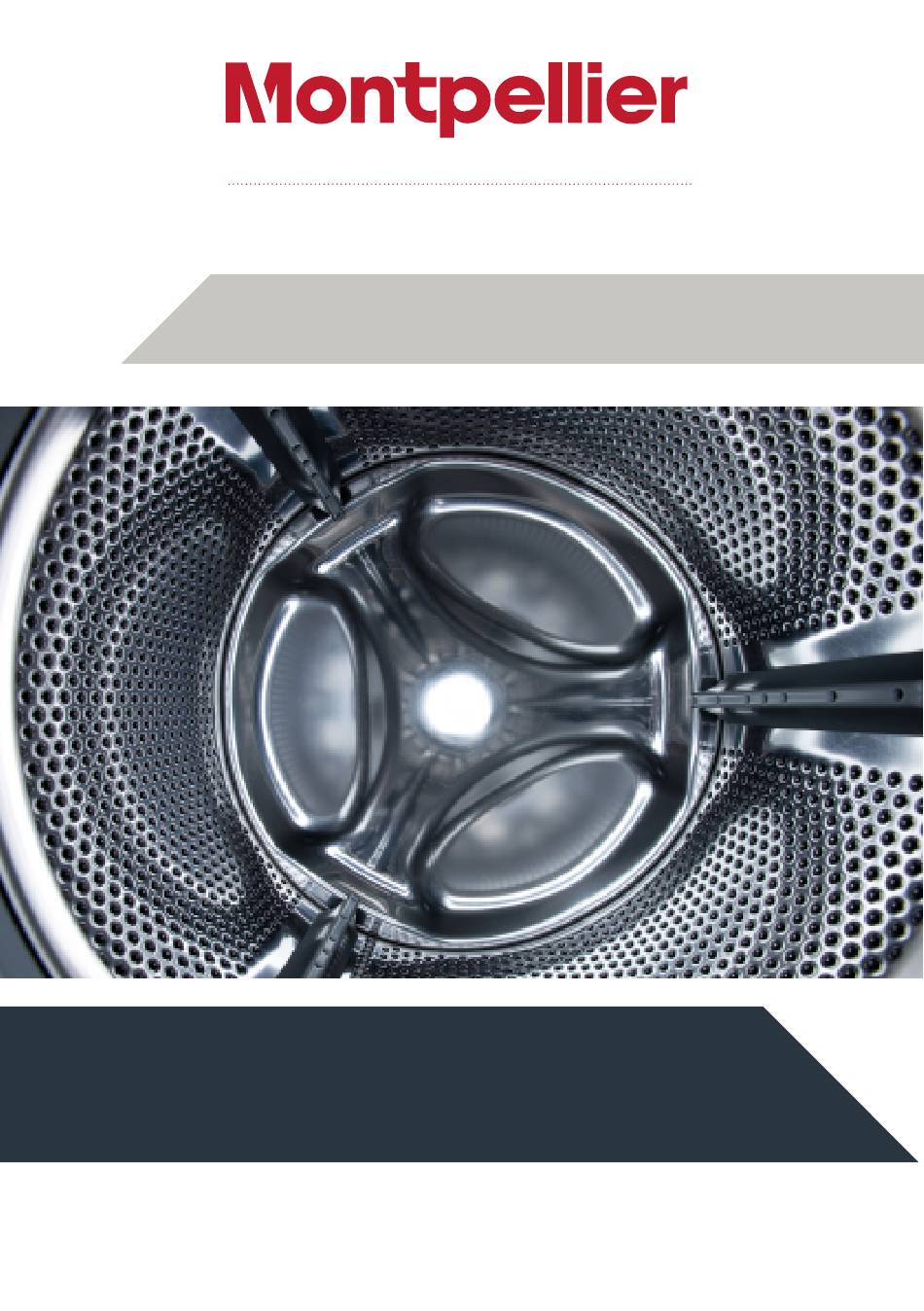

- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding 6kg 1000rpm Washing Machine MWM610W - White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Important Instructions For Safety And Environment
1 Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack expe- rience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. -
Page 4: Intended Use
• If the power cable is damaged, it must be replaced by the manufacturer, after sales service or a similarly qualified person (preferably an electrician) or someone designated by the importer in order to avoid possible risks. • Place the product on a rigid, flat and level surface. •... -
Page 5: Package Information
1.4 Package information • Packaging materials of the product are manufactured from recyclable materials in ac- cordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. 1.5 Disposing of the waste product •... -
Page 6: Appropriate Installation Location
2 Installation 2.3 Removing the transportation locks Refer to the nearest Authorised Service Agent for installation Do not remove the transportation locks before warning of the product. To make the product ready for use, review taking out the packaging reinforcement. the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are Remove the transportation safety bolts before... -
Page 7: Adjusting The Feet
2.7 Electrical connection Your house will be flooded if the hose comes warning Connect the product to a grounded outlet protected by a 16 out of its housing during water discharge. Moreover, there A fuse. Our company shall not be liable for any damages is risk of scalding due to high washing temperatures! To prevent such situations and to ensure smooth water that will arise when the product is used without grounding in intake and discharge of the machine, fix the end of the accordance with the local regulations. - Page 8 3 Preparation 3.4 Initial use Before starting to use the product, make sure that all 3.1 Sorting the laundry preparations are made in accordance with the instructions in • Sort laundry according to type of fabric, colour, and sections “Important safety instructions” and “Installation”. degree of soiling and allowable water temperature. To prepare the product for washing laundry, perform first • Always obey the instructions given on the garment tags.
- Page 9 Detergent Drawer • Do not exceed the (>max<) level marking in the softener The detergent drawer is composed of three compartments: compartment. – (1) for prewash • If the softener has lost its fluidity, dilute it with water – (2) for main wash before putting it in the detergent drawer.
-
Page 10: Tips For Efficient Washing
Clothes Using starch Colours • Add liquid starch, powder starch or the fabric dye into the (Recommended temperature range based softener compartment. on soiling level: cold -40 °C) • Do not use softener and starch together in a washing Powder and liquid detergents recommended cycle. - Page 11 Detergent Recommendation Following symptoms are a sign of detergent Recommended Type of laundry overdosing: Washing Wash cycles washing and textile temp. • heavy foam formation detergent • poor washing and rinsing result Heavy-duty Cotton、 detergent with Mix、 Following symptoms are a sign of detergent bleaching Bedding、...
-
Page 12: Operating The Product
4 Operating the product 4.1 Control panel 5 - Start / Pause button 1 - Programme Selection knob (Uppermost position On / Off) 6 - Auxiliary Function buttons 2 - Display 3 - Smart button 7 - Spin Speed Adjustment button 4 - Programme Follow-up indicator 8 - Temperature Adjustment button 4.2 Preparing the machine... -
Page 13: Special Programmes
4.5 Special programmes • Bedding The main washing objects of the program are bed sheets, quilt For specific applications, select any of the following covers, curtains, overcoats and tablecloths and so on. In the programmes. washing process, the soaking time and washing time of the •... -
Page 14: Rinse Spin
4.8 Programme and consumption table Auxiliaryfunctions Programme ECO 40-60 • Max. Quick 15′ Co ld • • • Cold-30 20℃ Max. • • • Steam • • • Stain • • • 40-60 Rinse Spin Max. • • Spin Max. •... -
Page 15: Auxiliary Function Selection
4. Auxiliary function selection Additional laundry may be loaded during the delayed Select the desired auxiliary functions before starting the start period. programme. Furthermore, you may also select or cancel At the end of the countdown, duration of the selected auxiliary functions that are suitable to the running programme will be displayed. -
Page 16: Changing The Selections After Programme Has Started
4.12 Progress of programme 4.15 Canceling the programme Progress of a running programme can be followed from the To cancel the programme, turn the Programme Selection Programme Follow-up indicator. At the beginning of every knob to select another programme. Previous programme programme step, the relevant indicator light will turn on and will be canceled. -
Page 17: Maintenance And Cleaning
5 Maintenance and cleaning Use an anti-limescale suitable for the washing machines. Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals. After every washing make sure that no foreign substance is 5.1 Cleaning the detergent drawer left in the drum. Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. -
Page 18: Draining Remaining Water And Cleaning The Pump Filter
3. Take out the filters on the flat ends of the water intake hoses together with the gaskets and clean thoroughly under running water. 4. Replace the gaskets and filters carefully in their places and tighten the hose nuts by hand. 5.5 Draining remaining water and cleaning the pump filter a. -
Page 19: Technical Specifications
6 Technical specifications Model name MWM610W Capacity (kg) 1000 Maximum spin speed (rpm) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) • input (V/Hz) Total 220-240V~/50Hz • Programmes MWM610W Nominal capacity Cycle duration in Energy consumption in Residual motisure in... -
Page 20: Troubleshooting
7 Troubleshooting Program does not start after closing the door. • Start / Pause / Cancel button was not pressed. >>> *Press the Start / Pause / Cancel button. Programme cannot be started or selected. • Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> To cancel the programme, turn the Programme Selection knob to select another programme. - Page 21 This product has been designed to release silver ions during the washing cycle Additional information: Weblink to the supplier’s website, where the information in point 9 of Annex II to Commission Reg-ulation (EU) 2019/2023 is found: https://www.montpellier-appliances.com/ (a) for the eco 40-60 programme.
-
Page 22: After-Sales Assistance
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 23 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
