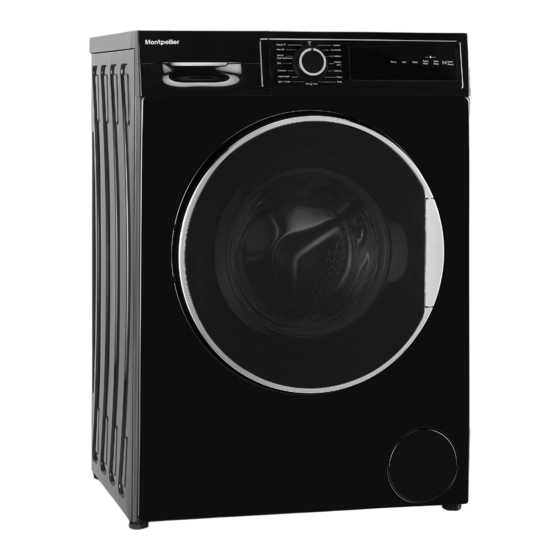

Freestanding 8kg 1400rpm Washing Machine
MWM814BLW/K/S/C - White/Black/Silver/Cream
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MWM814BLK
Summary of Contents for montpellier MWM814BLK
- Page 1 THE PERFECT BALANCE OF FUNCTION AND STYLE LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding 8kg 1400rpm Washing Machine MWM814BLW/K/S/C - White/Black/Silver/Cream Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................6 1.3 Packaging and Environment...................7 1.4 Savings Information ......................7 2. TECHNICAL SPECIFICATIONS ..................8 2.1 General Appearance.......................8 2.2 Technical Specifications ....................8 3. INSTALLATION .........................9 3.1 Removing the Transit Bolts.....................9 3.2 Adjusting the Feet ......................9 3.3 Electrical Connection ....................10 3.4 Water Inlet Hose Connection .................. - Page 4 7. CLEANING AND MAINTENANCE .................24 7.1 Warning........................24 7.2 Water Inlet Filters......................24 7.3 Pump Filter........................25 7.4 Detergent Drawer ......................25 8. Body / Drum ........................26 9. TROUBLESHOOTING ....................27 10. AUTOMATIC FAULT WARNINGS AND WHAT TO DO ..........28 11. DESCRIBING THE ENERGY LABEL AND SAVING ENERGY........29 12.
-
Page 5: Safety Instructions
1. SAFETY INSTRUCTIONS Operating voltage / frequency (V/Hz) (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2100 Maximum washing capacity (dry laundry) (kg) • Do not install your machine on a carpet or any surface that would prevent the ventilation of its base. -
Page 6: General Safety Warnings
Read this user manual carefully. Your machine is for domestic use only. Using it for commercial purposes will cause your warranty to be cancelled. 1.1 General Safety Warnings • The necessary ambient temperature for operation of your Washing Machine is 15-25 °C. • Where the temperature is below 0 °C, hoses may split or the electronic card may not operate correctly. • Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins. - Page 7 • The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine. • Keep the packaging materials in a place where children cannot reach them, or dispose of them appropriately. • Use pre-wash programs only for very dirty laundry. Never open the detergent drawer while the machine is running. • In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs. Always contact an authorised service agent.
- Page 8 Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running. The high temperatures involved pose a burn risk. RISK OF DEATH FROM ELECTRICAL CURRENT •...
- Page 9 Danger of Fire • Do not store inflammable liquids near your machine. • The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine. • Never use products that contain solvents in your machine. • Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins. Risk of falling and injury • Do not climb on your Washing Machine. • Make sure hoses and cables do not cause a trip hazard. • Do not turn your Washing Machine upside down or on its side. • Do not lift your Washing Machine using the door or detergent drawer. The machine must be carried by at least 2 people.
-
Page 10: During Use
1.2 During Use • Keep pets away from your machine. • Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. • Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. • This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 11: Packaging And Environment
NOTE: Specifications for the machine may vary depending on the product purchased. Replacement of drive belt, only by authorized service. Only an original spare belt must be used. 1.3 Packaging and Environment Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation. -
Page 12: Technical Specifications
2. TECHNICAL SPECIFICATIONS 2.2 Technical Specifications Operating voltage / (220-240) frequency V~/50Hz (V/Hz) Total current Maximum: 1 Water pressure Minimum : 0.1 (Mpa) Total power 2100 Maximum dry laundry capacity (kg) Spinning 1400 revolution (rev / min) Programme 2.1 General Appearance number 1. -
Page 13: Installation
3. INSTALLATION 3.2 Adjusting the Feet 3.1 Removing the Transit Bolts Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface. • You can level your machine using the adjustable feet. • Loosen the plastic locking nut. Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty. -
Page 14: Electrical Connection
3.3 Electrical Connection • Your machine will have a single water inlet connection (cold The white capped hose should be connected to cold water inlet on the rear of the washing machine using (2). the angled end • Your tap must have a 3/4" thread to be able to connect the cold hose (3). -
Page 15: Water Discharge Connection
3.5 Water Discharge Connection Note: In either option the drain hose must be between 50 cm and 80 cm from the ground. DO NOT Allow drain hose to hang lower than the sink outlet !! • Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment. •... -
Page 16: Detergent Drawer
4.1 Detergent Drawer 4.2 Sections Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside your machine. Fabric conditioner, starch, detergent compartment: This compartment is for softeners, conditioners or starch. Follow the instructions on the packaging. If softeners leave residue after use, try diluting them or using a liquid softener. Pre-wash detergent compartment: 1. Liquid Detergent Attachments 2. Main Wash Detergent Compartment 3. Softener Compartment 4. Pre-Wash Detergent Compartment This compartment should be used only when the pre-wash feature is selected. We recommend that the pre-wash feature is used only for very dirty laundry. -
Page 17: Programme Dial
4.3 Programme Dial The display panel shows the washing delay timer (if set), temperature selection, spin speed, any additional functions selected. The display panel shows “End” when the selected programme is complete. The display panel also indicates if a fault has occurred with your machine. -
Page 18: Using Your Washing Machine
5. USING YOUR Close zips and fasten any hooks and eyes WASHING MACHINE Remove the metallic or plastic hooks of curtains or place them in a washing net 5.1 Preparing Your or bag. Reverse textiles such as pants, Laundry knitwear, t-shirts and sweat shirts. Wash socks, handkerchiefs and other small items in a washing net. Can be Normal Do not bleach bleached washing Maximum Maximum ironing ironing Do not iron temperature temperature 150°C 200°C Can be dry Dry flat No dry cleaned... -
Page 19: Adding Detergent To The Machine
• Use detergents produced for NOTE: Take care not to exceed automatic washing machines. Follow the maximum load of the drum as this will the manufacturer’s instructions on give poor wash results and cause creasing. the amount of detergent to use. Refer to the washing programme tables for • In areas of hard water, more information on load capacities. detergent will be required. The following table shows approximate The amount of the detergent required •... -
Page 20: Selecting A Programme
5.5 Selecting a You can gradually decrease the washing water temperature between the maximum Programme washing water temperature of the selected programme and cold washing (- - C) selections by pressing the temperature Use the programme tables to select the adjustment button. - Page 21 • To use the time delay function, you need Start/Pause button to press the Start/Pause key to start the machine. • If you want to cancel the delay: If you have pressed the Start/Pause key to start the machine, you just need to press the delay key once.
-
Page 22: Child Lock
5.8 Child Lock 5.9 Cancelling the Programme The Child Lock function allows you to lock the buttons so that the wash cycle To cancel a running programme at you have chosen cannot be changed any time: unintentionally. To activate child lock, press and hold 1. -
Page 23: Programme Table
6. PROGRAMME TABLE EN - 19... - Page 24 6. PROGRAMME TABLE EN - 20...
-
Page 25: Programme Options Table
6.1 Programme Options Table Programme COTTON ECO 40-60 COTTON Pre- Wash COTTON 20 COLOURS WOOL RINSE ALLERGY SAFE SPIN/DRAIN HAND WASH EASYCARE / OUTDOOR JEANS/DARK GARMENTS FAST 60’ 60°C RAPID 15 min A: Available N/A: Not Available S: Standard EN - 21... - Page 26 • The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. • Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
-
Page 27: Important Informations
NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. (*) Washing water temperature of the programme is the factory default. (**) If your machine has the rapid wash auxiliary function, you can enable the quick wash option on the display panel and load the machine with 2 kg or less laundry to wash it in 30 minutes. -
Page 28: Cleaning And Maintenance
7. CLEANING AND 7.2 Water Inlet Filters MAINTENANCE Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1 Warning sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months. Turn your mains power supply off and remove the plug from the socket before carrying out maintenance and cleaning of your machine. • Unscrew the water inlet hose from the Turn off the water supply before starting Washing Machine. maintenance and cleaning of your machine. -
Page 29: Pump Filter
7.3 Pump Filter 3. Remove any foreign materials from the filter with a soft brush before running under water to clean thoroughly. Carefully check the pump housing for any debris and make sure the pump turns by hand. 4. After cleaning, re-fit the filter by inserting it and turning clockwise. -
Page 30: Body / Drum
• Press the region shown below inside 8. BODY / DRUM the detergent drawer you have pulled all the way back, and continue pulling and remove the detergent drawer from its place • Disassemble the flush stopper (circled 1. Body above). -
Page 31: Troubleshooting
9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. •... -
Page 32: Automatic Fault Warnings And What To Do
FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height. -
Page 33: Describing The Energy Label And Saving Energy
11. DESCRIBING THE ENERGY LABEL AND SAVING ENERGY 1. Brand 2. Model 3. Energy Class 4. Energy Consumption 5. Rated Capacity - Dry Laundry 6. Programme Duration 7. Water Consumption per Cycle 8. Spin-Drying Efficiency Class 9. Noise Value While Spinning MWM814BLx 10. -
Page 34: Product Information Sheet
Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2014 with regard to energy labelling of household washing machines and washer-dreys Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire, GL20 8JU MWM814BLx Model identifier: General product parameters:... -
Page 35: Here For You
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 36 The minimum period which must supply the spare parts for the household washing machine is 5 years. Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
