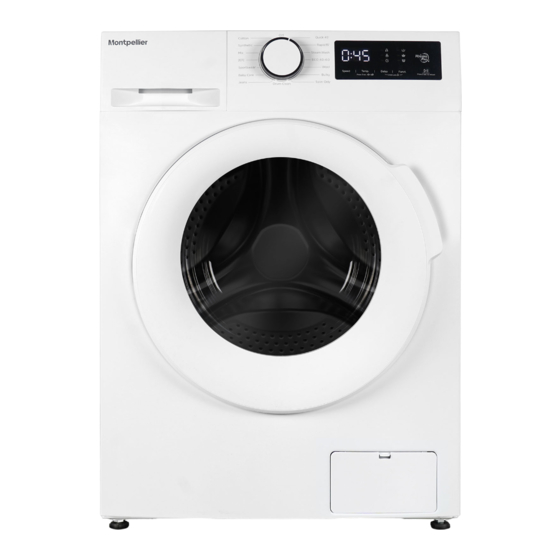

12kg 1400rpm washing machine - white
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
12kg 1400rpm Washing Machine - White
MWM1214W
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWM1214W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for montpellier MWM1214W

Summary of Contents for montpellier MWM1214W

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 12kg 1400rpm Washing Machine - White MWM1214W Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.

  • Page 3: Table Of Contents

    THANK YOU LETTER Thank you for choosing Montpellier! Before using your new Montpellier product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Intended Use The product is intended only for home use and for textiles in household amounts suitable for washing. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.
  • Page 5 WARNING: Electric Shock Hazard • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  • Page 6 Installation • Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result. • This appliance is equipped with a single inlet valve and can be connected to the cold water supply only. • Mains plug must be accessible after installation. •...
  • Page 7 -Accumulated water shall be drained out of the machine. • This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door can not be used as a handle. Washing Capacity Model 12.0kg MWM1214W...

  • Page 8: Specifications

    SPECIFICATIONS Model MWM1214W Power Supply 220-240V~,50Hz MAX. Current Rated Power 2000W 12.0kg Washing Capacity Standard Water Pressure 0.05MPa~1MPa Dimension Weight 595mm 595mm 73kg 850mm Reference Dimension 660mm 641mm 135mm 1105mm...

  • Page 9: Product Overview

    PRODUCT OVERVIEW Control panel Service flap Detergent dispenser Drain hose Door Power supply cord NOTE The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover 1 x Supply hose Owner’s manual Energy Labels cold water &...

  • Page 10: Quick Start Guide

    QUICK START GUIDE CAUTION • Before washing, please make sure the machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.
  • Page 11 1. Before Washing 1. Plug in 2. Open tap 3. Load 4. Close door 5. Add detergent Main wash Ⅱ Softener Prewash NOTE Detergent need to be added in compartment I if the pre-wash function is selected.
  • Page 12 2. Washing 1. Select programme 2. Select function or remain default settings 3. Press Start/Pause to start the program NOTE 1 : If default is selected, step 2 can be skipped. 2: The function button line chart is for reference only, please refer to real product as standard.

  • Page 13: Product Installation

    PRODUCT INSTALLATION Tools Needed If Installation By Yourself (not included) Installation Area WARNING • Stability is important to prevent the product from wandering! • Make sure the machine is standing level and stable. • Make sure that the product does not stand onto the power cord. •...
  • Page 14 Unpacking the Machine WARNING • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. • Remove the cardboard box and styrofoam packing. • Lift the machine and remove the base packaging. •...
  • Page 15 Levelling the Machine WARNING The lock nuts on all four feet must be screwed tightly against the housing. • Loosen the lock nut. • Turn the foot until it reaches the floor. • Adjust the legs and lock the nuts with a spanner. Make sure the machine is level using a spirit level.
  • Page 16 There are two main ways to place the end of drain hose: Note: In either option the drain hose must be between 50 cm and 80 cm from the ground. DO NOT Allow drain hose to hang lower than the sink outlet !! Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, •...

  • Page 17: Operation Instructions

    OPERATION INSTRUCTIONS Before Each Wash • The ambient temperature of the machine should be 5°C-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
  • Page 18 Detergent Dispenser Pre wash Main wash Ⅱ Ⅱ Softener Release button to pull out the dispenser CAUTION • Detergent only need be added in “compartment I ”after selecting pre-wash option. Programme Programme Spin Only Cotton Bulky Synthetic Wool Quick 15' Sportswear Rapid 45' Baby Care...
  • Page 19 Detergent Recommendations Recommended washing Type of laundry Washing Wash cycles detergent and textile temp. °C Heavy-duty detergent White laundry made Cotton,ECO 40-60 40/60 with bleaching agents from boil-proof cotton and optical brighteners or linen Colour detergent without Coloured laundry Cotton 20/40 bleaching agent and made from cotton or...
  • Page 20 Control Panel Turn the appliance off. Programmes Available according to the laundry type. Display The display shows settings, estimated remaining time, options and status messages. Options (refer to pages 24 & 26) This allows you to select additional functions and will light when selected. Start/Pause Start or pause your programme.
  • Page 21 Display Display Wash Time Delay Time Speed Error Temp. Door Lock Child Lock Strong Wash Pre Wash Extra Rinse HYGIENE PRO Delay...
  • Page 22 Programmes Model: MWM1214W Load (kg) Default Time (h:min) Programme 12.0 3:49 12.0 Cotton 3:28 Synthetic 1:30 12.0 1:11 20℃ 0:57 Sportswear 1:52 12.0 Baby Care 1:56 12.0 Jeans 1:58 Steam Wash 0:12 12.0 Spin Only 1:48 12.0 Bulky 1:07 Wool 4:00 12.0...
  • Page 23 Programmes MWM1214W Cycle 12.0 3:54 1.936 53%/1400 Cotton 12.0 1:30 1.006 70%/800 65%/1000 1:11 0.224 20℃ Rapid 15' Cold Cold 70%/800 0:15 0.030 65%/1000 12.0 Bulky 1:48 1.037 12.0 82.0 53.9%/1350 4:00 1.186 53.9%/1350 ECO 40-60 3:00 0.618 58.0 46.0 53.9%/1350...
  • Page 24 Programmes 1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
  • Page 25 Programmes are available according to the laundry type. Programmes Washing few and not very dirty clothes quickly Quick 45' Extra short programme approx, suitable for lightly soiled washing as a small Rapid 15' amounts of laundry. Steam Wash Steam is applicable for daily laundries. ECO 40-60 Able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
  • Page 26 Options Default Default spin Additional Cycle Temp.(℃) speed (rpm) functions 1400 Rapid 15' Cold Quick 45' Steam Wash 1000 ECO 40-60 1400 Wool Bulky 1000 Spin Only 1000 Drum Clean Jeans Baby Care 1000 Sportswear 20℃ 1000 Synthetic 1200 Cotton 1400 Strong Wash Time Delay...
  • Page 27 Speed When needed, the spinning speed can be adjusted pressing the Speed button Speed in the following steps: 1400:0-400-600-800-1000-1200-1400 Delay 1. Select a programme. 2. Press the Delay button to choose the delaying time 0-24H. 3. Press [Start/Pause] to start the delay operation. Delay Choose programme Setting time...
  • Page 28 Child Lock To avoid mis operation by children. Press [Delay] and [Funct.] simultaneously for 3 sec Delay Funct. until the buzzer beep. The child lock indicator switches on. CAUTION When the Child Lock is activated, the display will alternately show “CL” and the remaining time.

  • Page 29: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Cleaning and Care WARNING • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.
  • Page 30 Cleaning the Inlet Filter NOTE • Diminishing water flow is a sign that the filter needs to be cleaned. 1. Close the tap and remove 2. Clean the filter with a brush. the water supply hose from it. 4. Use a brush to clean the 3.
  • Page 31 Cleaning the Detergent Dispenser 1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush. 2. Lift the softener cover off the dispenser drawer and wash both items with water. 3.
  • Page 32 Cleaning the Drain Pump Filter WARNING Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Wait for water cooling down. Risk of scalding! •...

  • Page 33: Trouble Shooting

    TROUBLE SHOOTING Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible Cause Solution Door is not closed Appliance does Close the door properly and properly.Clothes are restart.

  • Page 34: Disposal And Recycling

    DISPOSAL AND RECYCLING Important Instructions for Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

  • Page 35: Product Information Sheet

    MWM1214W Model identifier: General product parameters: Parameter Value Parameter Value Height R a ted capacity Dimensions in cm 12,0 (kg) Width Depth Energy Efficiency Energy efficiency class 52,0 Index (EEI Wa shing efficiency Rinsing effectiveness (g/kg) 1,031 index Energy consump-tion...

  • Page 36: Here For You

    Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 37 You have a manufacturer’s warranty of 2 years from the date of purchase (proof of purchase must be provided). Our General Terms and Conditions apply. MWM1214W / Your device / serial number Purchase date: Place of purchase: Customer Service Spare parts for your appliance are available for a minimum of 10 years following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign requirements.
  • Page 38 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 SJU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
