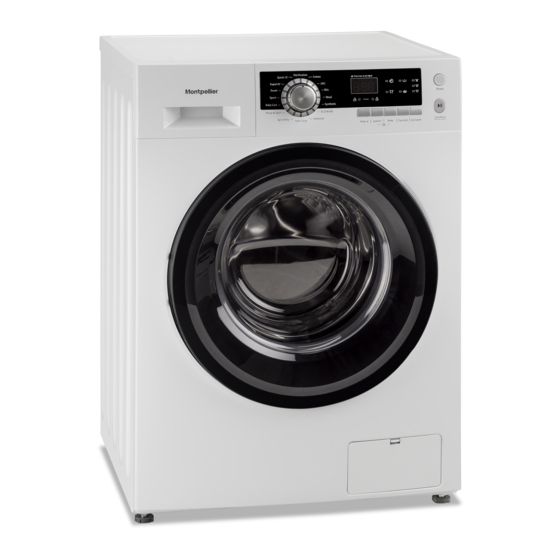

Freestanding Washing Machine
MW1045W - 1500rpm
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MW1045W
Summary of Contents for montpellier MW1045W

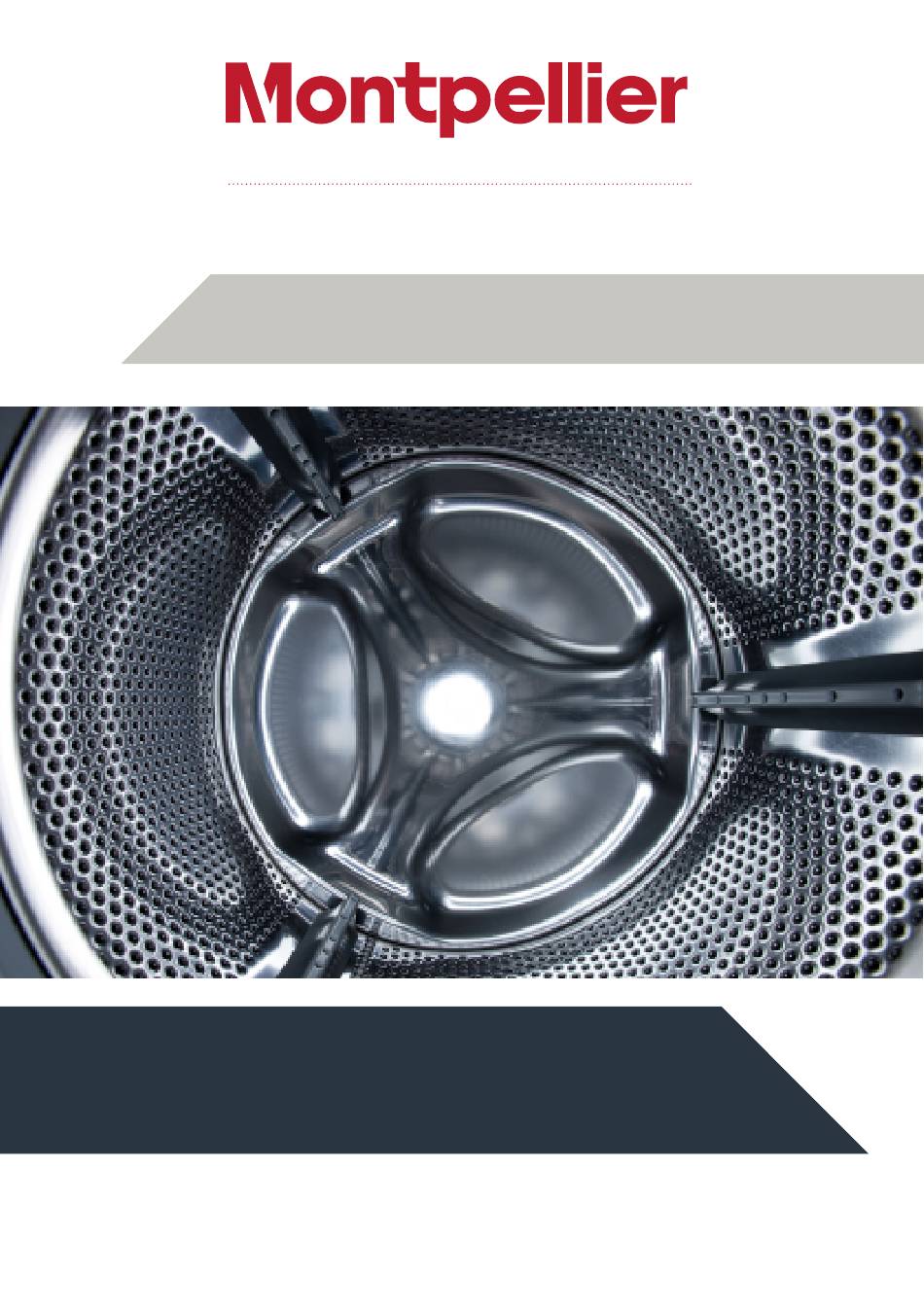

- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Washing Machine MW1045W - 1500rpm Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ............INSTALLATION Product Description ............Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Programme Options............. Function Options............Programme Guide............MAINTENANCE Cleaning and Care ............Trouble Shooting ............Technical Specifications ......... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 5 SAFETY INSTRUCTIONS Risk of damaging the appliance ! Remove all packaging and transit bolts before using the • appliance otherwise serious damage may result ! This washing machine is only for domestic use and is only • designed for the textiles suitable for a domestic washing machine.
- Page 6 SAFETY INSTRUCTIONS Risk of explosion! Do not wash or dry articles that have been cleaned in, soaked • in, or dabbed with combustible or explosive substances(such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire, explosion or contamination of your appliance.
- Page 7 SAFETY INSTRUCTIONS • The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine, it is not intended to be built-in. • Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations.
- Page 8 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE • Before using for the first time it is recommended to run the washer through one complete wash cycle at a minimum temperature of 40°without any clothes and use half of your usual amount of detergent. •...
- Page 9 SAFETY INSTRUCTIONS TRANSPORT Transport bolts shall be carefully reinstalled to the appliance • by a suitably qualified person. Any residual water left in the appliance shall be drained out of • the appliance. The appliance should always be handled with care. Do not •...
-
Page 10: Installation
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service flap Drain hose Note! • The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover caps 1 x Owner’s manual 1 x Supply hose cold water... -
Page 11: Installation
INSTALLATION Installation ！ Warning! • Stability is extremely important for quiet and vibration free running. • Make sure the appliance doesn't stand on the mains cable. Before installing the appliance ensure that all below points are adhered to: • Install on a dry, rigid and level surface. •... - Page 12 INSTALLATION Remove transport bolts ！ Warning! • You must remove the transport bolts from the backside before using the product. • You'll need the transport bolts again if you move the product, so make sure you keep them somewhere safe. Loosen the 4 transport Remove the bolts Close the holes using the...
- Page 13 INSTALLATION Drain Hose ！ ！ War r n n i i n n g g ! ! Do not kink or extend the drain hose • Position the drain hose correctly to avoid damage which may result in a leak •...
-
Page 14: Operation
OPERATION Quick Start Caution! Before using the appliance make sure that it is correctly installed. Before washing for the first time it is advisable to run the appliance through one complete wash cycle at a minimum temperature of 40°C without any clothes and using half your usual amount of detergent. -
Page 15: Before Each Washing
OPERATION Before Each Washing • The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. -
Page 16: Detergent Dispenser
OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Pull out the dispenser Caution! Detergent should only be added to the Pre-wash compartment if pre-wash has • been selected as an option Programme Programme Sterlilzation Self Clean Cotton... -
Page 17: Control Panel
OPERATION Control Panel Model: MW1045W Note! The chart is for reference only, Please refer to your machine panel for info. • Power Start/Pause Product is on/off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. -
Page 18: Programme Options
OPERATIONS Programme Options Press the Temp button to change the required wash temperature if a temperature other than the default is required (Cold,20,30,40,60,90) Press the speed button to change the required speed if a spin speed other than the default is required (0,400,600,800,1000,1200,1500) Programme Programme Default Speed(rpm) -
Page 19: Function Options
OPERATIONS Function Options Use the function button to select the required functions Function available with each wash cycle - refer to the programme guide for the options available. Delay Speed Choose the Programme Start Press [Speed] and [ Delay 3 sec. till buzzer beep. Caution! •... - Page 20 OPERATIONS Function Options Pre Wash Pre Wash The Pre-wash function allows you to give heavily soiled items a pre-wash before the main washing programme takes place. When using this function put detergent in compartment I of the soap drawer. Extra Rinse Extra Rinse The laundry will undergo an extra rinse once this option is selected.
-
Page 21: Programme Guide
OPERATIONS Programme Guide lease refer to your wash care label in all garments and choose the suitable programme from the list below Programmes Designed for hard wearing textiles,cotton garments or clothes that Cotton require a high agitation wash such as towels and sheets. Medium agitation wash designed for synthetic fabrics such as Synthetic nylon, polyester and acrylic blended items... - Page 23 OPERATIONS MW1045W Programmes • The above data is for reference only, and the data may change due to different actual use conditions. • The valves given for programmes other than the ECO 40-60 programme are indicative only. • Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: B Energy test program: ECO 40-60.
- Page 24 OPERATIONS Wash Loading Table Model: MW1045W Note! Please refer to the below chart for the loading guidelines of your specific model according to the programme selected Programme Load(kg) Load(kg) Programme 10.0 10.0 Default – Self Clean Sterilization 10.0 Spin Only 10.0...
-
Page 25: Maintenance
MAINTENANCE Cleaning And Care ！ Warning! Before starting any maintenance tasks on your appliance, please unplug and • make sure the water supply is turned off Cleaning The Cabinet Proper maintenance of the washing machine can extend its working life. All surfaces can be cleaned with diluted non-abrasive neutral detergents where necessary. - Page 26 MAINTENANCE Cleaning The Inlet Filter Note! Inlet filter must be checked and cleaned if there is a drop in the inlet pressure • Washing the inlet hose filter : 1.Close the tap. 2.Remove the water supply hose from the tap. 3.Clean the filter.
- Page 27 MAINTENANCE Cleaning The Drain Pump Filter ！ Warning! Be careful as the water left in the appliance may be very hot !! • Allow water to cool before attempting to drain the washer or cleaning • the filter. Unplug the appliance to avoid any risk of electric shock while removing •...
-
Page 28: Troubleshooting
MAINTENANCES Troubleshooting If your appliance does not start or it stops during operation, first try and find a solution below,if not contact the service centre. Description Reason Solution Washing machine Check the door is closed and no Door is not closed properly garments are stopping it from closing doesn't start up Disconnect the power, restart... -
Page 29: Technical Specifications
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Model Rated Power Washing Capacity Dimension Net Weight (W*D*Hmm) MW1045W 10.0kg 595*565*850 72kg 1900W... -
Page 30: Product Fiche
MAINTENANCE Product Fiche Product Information Sheet acc. regulation (EU) 2019/2023 MW1045W 10.0 60.0 0.593 1450 1450 1450 ： 3 59 ： 3 00 3：00... - Page 31 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 32 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 SJU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
