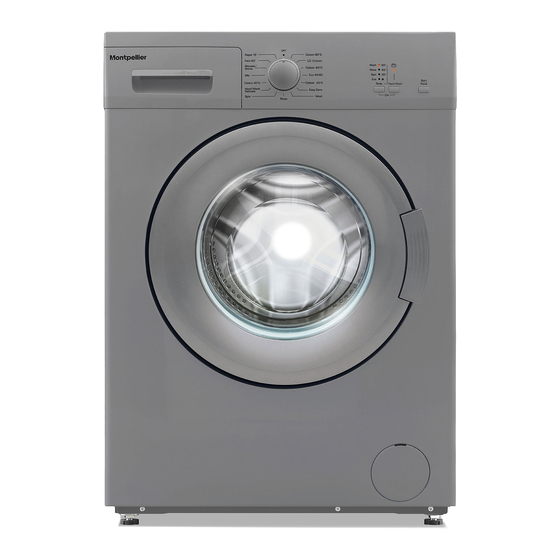

Freestanding Washing Machine
MWM61200W/S/K - White/Silver/Black
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MWM61200W
Summary of Contents for montpellier MWM61200W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Washing Machine MWM61200W/S/K - White/Silver/Black Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................6 1.3 Packaging and Environment...................7 1.4 Savings Information ......................7 2. TECHNICAL SPECIFICATIONS ..................8 2.1 General Appearance.......................8 2.2 Technical Specifications ....................8 3. INSTALLATION .........................9 3.1 Removing the Transit Bolts.....................9 3.2 Adjusting the Feet / Adjusting Adjustable Stays..............9 3.3 Electrical Connection ....................10 3.4 Water Inlet Hose Connection ..................10... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS Operating voltage / frequency (V/Hz) (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2100 Maximum washing capacity 6. 0 (dry laundry) (kg) • Do not install your machine on a carpet or any surface that would prevent the ventilation of its base. -
Page 5: General Safety Warnings
Read this user manual carefully. Your machine is for domestic use only. Using it for commercial purposes will cause your warranty to be cancelled. 1.1 General Safety Warnings • The necessary ambient temperature for operation of your Washing Machine is 15-25 °C. • Where the temperature is below 0 °C, hoses may split or the electronic card may not operate correctly. • Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins. - Page 6 • The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine. • Keep the packaging materials in a place where children cannot reach them, or dispose of them appropriately. • Use pre-wash programs only for very dirty laundry. Never open the detergent drawer while the machine is running. • In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs. Always contact an authorised service agent.
- Page 7 Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running. The high temperatures involved pose a burn risk. RISK OF DEATH FROM ELECTRICAL CURRENT •...
- Page 8 Danger of Fire • Do not store inflammable liquids near your machine. • The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine. • Never use products that contain solvents in your machine. • Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins. Risk of falling and injury • Do not climb on your Washing Machine. • Make sure hoses and cables do not cause a trip hazard. • Do not turn your Washing Machine upside down or on its side. • Do not lift your Washing Machine using the door or detergent drawer. The machine must be carried by at least 2 people.
-
Page 9: During Use
1.2 During Use • Keep pets away from your machine. • Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. • Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. • This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 10: Packaging And Environment
1.3 Packaging and Environment Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production. -
Page 11: Technical Specifications
2. TECHNICAL SPECIFICATIONS 2.2 Technical Specifications Operating (220-240) voltage / V~/50Hz frequency (V/Hz) Total current Maximum: Water 1 Mpa pressure Minimum : (Mpa) 0. 1 Mpa Total power 2100 Maximum dry laundry capacity (kg) Spinning 1200 revolution (rev / min) Programme 2.1 General Appearance number 1. -
Page 12: Installation
3. INSTALLATION 3.2 Adjusting the Feet 3.1 Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface. • You can level your machine using the adjustable feet. • Loosen the plastic locking nut. 1. Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty. -
Page 13: Electrical Connection
3.3 Electrical Connection • Your machine will have a single water inlet connection (cold The white capped hose should be connected to cold water inlet on the rear of the washing machine using (2). the angled end • Your tap must have a 3/4" thread to be able to connect the cold hose (3). -
Page 14: Water Discharge Connection
3.5 Water Discharge Connection Note: In either option the drain hose must be between 50 cm and 80 cm from the ground. DO NOT Allow drain hose to hang lower than the sink outlet !! • Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment. •... -
Page 15: Detergent Drawer
4.1 Detergent Drawer 4.2 Sections Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside your machine. Fabric conditioner, starch, detergent compartment: This compartment is for softeners, conditioners or starch. Follow the instructions on the packaging. If softeners leave residue after use, try diluting them or using a liquid softener. Pre-wash detergent compartment: 1. Liquid Detergent Attachments 2. Main Wash Detergent Compartment 3. Softener Compartment 4. Pre-Wash Detergent Compartment This compartment should be used only when the pre-wash feature is selected. We recommend that the pre-wash feature is used only for very dirty laundry. -
Page 16: Program Dial
4.3 Program Dial The function LEDs (1-5) serve a dual purpose as they both indicate the wash state of the cycle chosen (1-4) as well as showing the temperature selected for the required wash cycle (5). Firstly, when selecting a cycle and then using the Temperature Adjustment Button (6) if required the LEDs (5) will indicate the required or default temperature of the... -
Page 17: Using Your Washing Machine
5. USING YOUR Close zips and fasten any hooks and eyes WASHING MACHINE Remove the metallic or plastic hooks of curtains or place them in a washing net 5.1 Preparing Your or bag. Reverse textiles such as pants, Laundry knitwear, t-shirts and sweat shirts. Wash socks, handkerchiefs and other small items in a washing net. Can be Normal Do not bleach bleached washing Maximum Maximum ironing ironing Do not iron temperature temperature 150°C 200°C Can be dry Dry flat No dry cleaned... -
Page 18: Adding Detergent To The Machine
• Use detergents produced for NOTE: Take care not to exceed automatic washing machines. Follow the maximum load of the drum as this will the manufacturer’s instructions on give poor wash results and cause creasing. the amount of detergent to use. Refer to the washing programme tables for • In areas of hard water, more information on load capacities. detergent will be required. The following table shows approximate • The amount of the detergent required weights of typical laundry items: will increase with higher washing LAUNDRY TYPE... -
Page 19: Half-Load Detection System
5.6 Half-Load Detection 1. Temperature Selection System Wash Temp. Your machine features a half-load Rinse Spin detection system. If you put less than half the maximum load of laundry into your machine it will automatically set the half-load function, regardless of the programme you selected. Use the washing water temperature This means that the selected programme adjustment button to alter the automatically will take less time to complete and will use programmed washing water temperature. less water and energy. When you select a programme, the 5.7 Additional maximum temperature for that programme Functions is automatically selected. To adjust the temperature, press the temperature... -
Page 20: Child Lock
5.9 Cancelling the 3. Start/Pause Button Programme Wash Rinse Washing To cancel a running programme at any time: Spin Rinsing Spinning • Turn the programme dial to the “STOP” position. • Your machine will stop the washing Start-Pause operation and the programme will be cancelled. To start the selected programme, press the • Turn the programme dial to any other Start/Pause button. programme to drain the machine. -
Page 21: Programme Table
6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. (Underwear, linen, COTTON 90°C 90° tablecloth, towel (maximum 3.0 kg), bedclothes, etc. ) Dirty cotton and flax textiles. (Underwear, linen, Cotton Pre-Wash 60° 1&2 tablecloth, towel (maximum 3.0 kg), bedclothes, etc. ) Dirty cotton and flax textiles. (Underwear, linen, COTTON 60°C 60° tablecloth, towel (maximum 3.0 kg), bedclothes, etc. ) Dirty cotton and flax textiles. (Underwear, linen, ECO 40-60 40° tablecloth, towel (maximum 3.0 kg), bedclothes, etc. ) Less dirty, cotton and linen textiles. (Underwear, COTTON 20°C 20° bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc. ) Very dirty or synthetic-mixed textiles. (Nylon socks, EASY CARE 40° shirts, blouses, synthetic-including trousers etc. ) WOOL 30°... - Page 22 • The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. • Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
-
Page 23: Important Information
6.1 Important Information • Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage. • We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme. -
Page 24: Cleaning And Maintenance
7. CLEANING AND 7.2 Water Inlet Filters MAINTENANCE Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1 Warning sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months. Turn your mains power supply off and remove the plug from the socket before carrying out maintenance and cleaning of your machine. • Unscrew the water inlet hose from the Turn off the water supply before starting Washing Machine. maintenance and cleaning of your machine. -
Page 25: Pump Filter
7.3 Pump Filter After cleaning, re-fit the filter by inserting it and turning clockwise. Meet the holes on the front panel side. 6. Close the filter cover. ARNING: The water in pump may be hot, wait until has cool down before carrying out any cleaning or maintenance. 7.4 Detergent Drawer The use of detergent may cause residual build up in the detergent drawer over time. -
Page 26: Flush Stopper / Body / Drum
8. FLUSH STOPPER / BODY / DRUM 1. Flush stopper Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 2. Body Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth. 3. Drum Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to the formation of rust stains in the drum. To clean such rust stains, use a non-chlorine... -
Page 27: Troubleshooting
9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. • Turn off the water supply. FAULT POSSIBLE CAUSE TROUBLESHOOTING Machine not plugged in. Plug machine in. Fuses are faulty. Replace the fuses. No mains power supply. Check mains power. Your machine does not start. Start/Pause button not pressed. Press the Start/Pause button. Programme dial ‘stop’ position. Turn the programme dial to the desired position. -
Page 28: Automatic Fault Warnings And What To Do
FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height. loaded with water, water low for the machine. (**) . discharges. No water appears in the No fault. Water is in the unseen ..... drum during washing. -
Page 29: Energy Label/Pis
2. Model 3. Energy Class 4. Energy Consumption 5. Rated Capacity - Dry Laundry 6. Programme Duration 7. Water Consumption per Cycle Montpellier 1 8. Spin-Drying Efficiency Class MWM61200W 9. Noise Value While Spinning 10. Airborne Acoustical Noise Emission Class Results are based on using the Eco 40-60 programme. - Page 30 This product has been designed to release silver ions during the washing cycle Additional information: Weblink to the supplier’s website, where the information in point 9 of Annex II to Commission Reg-ulation (EU) 2019/2023 is found: https://www.montpellier-appliances.com/ (a) for the eco 40-60 programme.
-
Page 31: Here For You
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 32 The minimum period which must supply the spare parts for the household washing machine is 10 years. Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
