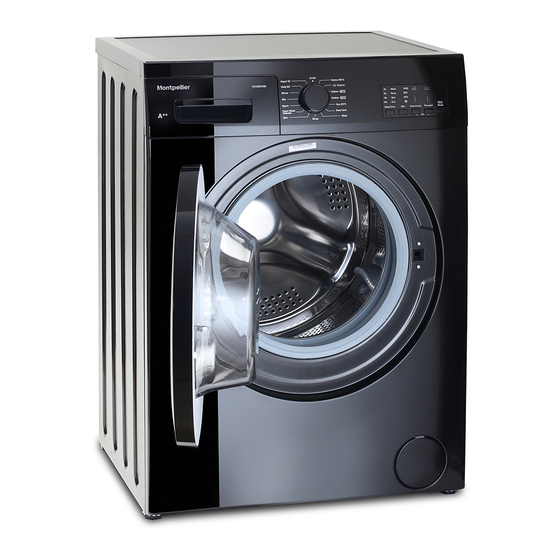

Freestanding Washing Machine
MW8014 - All Colours - 1400RPM - 8kg Load
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MW8014 and is the answer not in the manual?

Questions and answers

Related Manuals for montpellier MW8014

Summary of Contents for montpellier MW8014

  • Page 1 Installation and Operating Instructions Freestanding Washing Machine MW8014 - All Colours - 1400RPM - 8kg Load Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier Washing Machine. Our Washers have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Washing Machine to ensure you get the most from your purchase.

  • Page 3: Table Of Contents

    CONTENTS: Section 1: Safety Instructions -Correct Usage -General Warnings -Safety Warnings Section 2: Installation -Removing Transit Bolts -Adjusting the Feet -Electrical Connection -Water Inlet Hose Connection -Water Discharge Connection Section 3: Technical Specifications Section 4: Control Panel -Control Panel 13/15 -Detergent Drawer -Program Knob Section 5: Washing your Laundry...
  • Page 4 Description of the Appliance Transit Bolt Water Inlet Valve Discharging Hose Power Cable Transit Bolt Transit Bolt Transit Bolt BEFORE OPERATING YOUR WASHING MACHINE YOU MUST REMOVE THE TRANSIT BOLTS. FAILURE TO DO SO MAY DAMAGE THE MACHINE AND WILL INVALIDATE YOUR GUARANTEE.

  • Page 5: Correct Usage

    Section 1. Safety Advice 1.1 Correct Usage Read the user instruction manual. Your machine is designed to be used domestically. Commercial use will cause your warranty to be invalid. Keep pets away from your machine. Please check the packaging of your machine is in good order before installation, and the outer surface of the machine after the package is opened.

  • Page 6: General Warnings

    1.2 General Warnings The ambient temperature for your machine’s ideal operation is 15-25ºC. Frozen hoses can tear and explode. In regions where temperature is below zero, ambient temperature might endanger the safe operation of the electronic circuit board. Please ensure that the clothes put into your machine do not contain any foreign objects (nails, needles, coins, lighters, matches, clips, etc.) in pockets.

  • Page 7: Safety Warnings

    1.3 Safety Warnings You must take note of these warnings, as this can protect you, your family and the product. DANGER OF GETTING BURNT! Do not touch the discharge hose or water during the discharge process as the appliance can reach high temperatures during operation. RISK DUE TO ELECTRICAL CURRENT! Do not use multi-sockets on an extension lead.
  • Page 8 1.3 Safety Warnings (continued) FALL AND INJURY HAZARD! Do not climb on your machine. The top lid of your machine may break and you might get injured. Tidy the hose, cable and packaging of your machine during installation, to avoid tripping or falling over. Do not turn your machine upside down or on its side.

  • Page 9: Section 2: Installation

    Section 2. Installation 2.1 Removing transit bolts Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the back of the machine. If the bolts are not removed, it will cause heavy vibration, noise and product malfunction, (invalidating the guarantee).

  • Page 10: Adjusting The Feet

    2.2 Adjusting the feet Do not install your machine on a carpet or anything that will prevent ventilation under the base. To ensure silent and vibration-free operating of your machine, it should be sited on a non-slippy firm floor. You can adjust the level of your machine by the adjustable feet.

  • Page 11: Electrical Connection

    2.3 Installation (Electrical Connection) Your washing machine is set to 220-240V and 50Hz. The mains cord of your washing machine is equipped with a specific earthed plug. This plug should always be inserted to an earthed socket of 13 amps. The rating of the fuse should be 13 amps.

  • Page 12: Water Inlet Hose Connection

    2.4 Installation (Water Inlet Hose Connection) Your machine may have either a single inlet (cold) or double water inlets (cold/hot) based on its specifications. A white-capped hose should be connected to the cold water inlet and a red-capped hose to a hot water inlet (applicable for machines with double water inlets).

  • Page 13: Water Discharge Connection

    2.5 Installation (Water Discharge Connection) The end of the water discharge hose can be fitted to a specific outlet pipe. Never attempt to extend the water discharge hose by joining two pieces of hose. Do not put the discharge hose of your machine into a bucket or sink.

  • Page 14: Section 3: Technical Specifications

    Section 3. Technical Specification Operating voltage / (220-240)V~/50Hz frequency (V/Hz) Total current (A) Maximum:1 Mpa Water pressure Minimum:0.1 Mpa Total power(W) 2200 Maximum dry laundry capacity (kg) Spinning revolution (rev/min) 1400 Program number Dimensions 845x597x557 (HeightxWidthxDepth)(mm)

  • Page 15: Section 4: Control Panel

    Section 4. The Control Panel Detergent Drawer (DIAGRAM-1) (DIAGRAM-2) Detergents may form a sediment in your detergent drawer or in the housing of the detergent drawer over time. To clean, pull out the detergent drawer as shown and wash thoroughly. Pull the detergent drawer out as far as possible.
  • Page 16 4.1 Control Panel continued. Main wash detergent compartment: In this compartment, use only detergent (liquid or powder). Limescale remover can be used. Fabric conditioner, starch, detergent compartment: You may use fabric softener for your laundry (recommended amount and type by the manufacturer). Sometimes the fabric conditioners you use for your laundry may remain in this compartment.
  • Page 17 4.1 Control Panel continued. Electronic Display: Start or Pause Pre-Wash Programme Easy Ironing Delay Timer Spin Adjustment Press both together for 3-5 seconds to lock the panel. On the display panel, you can view if there is a wash delay timer, the speed setting of your machine, the selected auxiliary functions and the stage of the wash program you are running.

  • Page 18: Section 5: Washing Your Laundry

    Section 5. Washing your Laundry 5.1 Preliminary Preparation of Laundry Laundry has product labels on them that state their specifications. Wash or dry your laundry according to the specifications on the product label. Separate your laundry according to their types (cotton, synthetic, sensitive, wool etc), their temperatures (cold, 30º, 40º, 60º, 90º) and degree of contamination (slightly stained, stained, highly stained).
  • Page 19 5.1 Preliminary Preparation of Laundry continued. Normal Whitening whitening wash Ironing temperature Ironing temperature None Iron maximum 200°C maximum 150°C No dry cleaning Dry cleaning Leave flat Hang when wet Do Not Dry by hanging Tumble Dry Dry cleaning Perchloroethylene Perchlorinethylene in gas oil, pure R11, R13,...

  • Page 20: Putting Laundry In The Machine

    5.2 Putting Laundry in the Machine Open the door of your machine. Spread your laundry in your machine. NOTE: Maximum loading capacity may vary based on the laundry type you will wash, degree of contamination and the program you have chosen. Do not exceed maximum dry loading capacity indicated in the program table for washing programs.

  • Page 21: Adding Detergent To The Machine

    5.3 Adding detergent to the machine The amount of detergent put into the machine will depend on the following criteria: Only use detergents produced specifically for automatic washing machines. The amount of detergent to be used for your laundry is printed on the detergent packet. The higher the degree of hardness of the water the more detergent you need to use.

  • Page 22: Auxiliary Functions

    5.5 Auxiliary Functions Before starting the program, you can optionally select an auxiliary function. Press the button of the auxiliary function you would like to select. If the auxiliary function symbol is displayed on the electronic display, the auxiliary function you have selected will be activated. If the auxiliary function symbol on the electronic display blinks, the auxiliary function you have selected will not be activated.
  • Page 23 5.5 Auxiliary Functions continued. Function Buttons 1. Delayed start timer By using this function you can make your machine start the washing operation with a delay of 3hr 6hr 9rh or 12hr. To use this function, simple press the delayed start button, you will then be able to toggle through the different delay timers.
  • Page 24 5.5 Auxiliary Functions continued. Pleas e note: If your machine detects that there is a small load, it will activate the half-load programme and the above symbol will show. 4. Cold wash You can use this function when you want your machine to wash with cold water only.

  • Page 25: Child Lock

    5.6 Child Lock Child Lock The child lock is used in order to protect the washing cycle from the effects of unwanted button activations during the cycle. The child lock is activated by pressing the third and fourth button on the display panel at the same time for more than 3 seconds.

  • Page 26: Section 6: Maintenance And Cleaning

    Section 6. Maintenance and Cleaning Unplug your machine before starting the maintenance and cleaning of your machine. Turn the water off before starting the maintenance and cleaning of your machine. CAUTION: Your machine’s parts might be damaged if cleaners with solvents are used. Do not use cleaning materials containing solvents.

  • Page 27: Pump Filters

    6.1 Maintenance and Cleaning continued. Pump Filters The pump filter system prolongs the life of your pump, which is used to drain the dirty water. It prevents lint entering the pump. Cleaning the pump filter regularly is recommended. To clean your pump filter: Open the kickplate cover, by pulling the handle.

  • Page 28: Detergent Draw

    6.1 Maintenance and Cleaning continued. Detergent Drawer Your detergents may deposit residue in the detergent drawer and housing of the detergent drawer over time. To clean the residue formed, disassemble the detergent drawer periodically. It is recommended that you clean your detergent drawer every 2 months.

  • Page 29: Section 7: Troubleshooting

    Section 7. Troubleshooting Any repairs required to your machine should be carried out by our authorised service agents. If your machine requires a repair or if you cannot remove the fault by using the information provided as follows: Unplug your machine. Turn the water tap off.
  • Page 30 7.1 Troubleshooting continued. FAULT POSSIBLE CAUSE TROUBLE-SHOOTING The feet of your machine Adjust the feet on your have not been adjusted machine and make sure it is correctly. level. (**) Remove the transit bolts on Transit bolts fitted for your machine. (**) Your machine vibrates.
  • Page 31 7.1 Troubleshooting continued. FAULT POSSIBLE CAUSE TROUBLE-SHOOTING too hard. W ater being hard. Adjust the amount of (contaminated, lime water etc.) detergent based on the instruction of the detergent Unsatisfactory washing result. manufacturer. Laundry is distributed in your Spread your laundry in the machine unevenly.
  • Page 32 Section 8. Automa tic Fault Warnings Your machine is equipped with systems that are capable of both taking necessary precautions and warning you in case of any breakdown by means of continuous self-checking during washing operations. Failure Failure Probable Failure Process to be followed Code Indicator...
  • Page 33 Section 9. Washing Program COTTON 90° COTTON 60C° Washing temperature(°C) Washing temperature(°C) 90° 60° Maximum dry laundry Maximum dry laundry amount(kg) amount (kg) Detergent compartment Detergent compartment Program duration Program duration (Min.) (Min.) Dirty,boil,cotton and linen textile. Dirty, cotton, coloured and linen textile Laundry type / Laundry type / Descriptions Descriptions...
  • Page 34 9.1 Washing Program continued. Laundry type / Descriptions Washing temperature(°C) 30° Maximum dry laundry amount (kg) Detergent compartment Program duration (Min.) Slightly dirty, synthetic or synthetic mi Laundry type / ture sensitive laundry. Washed withou Descriptions heating the tap water. Nylon socks, blouse RINSING When you need additional rinsing...
  • Page 35 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 36 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
