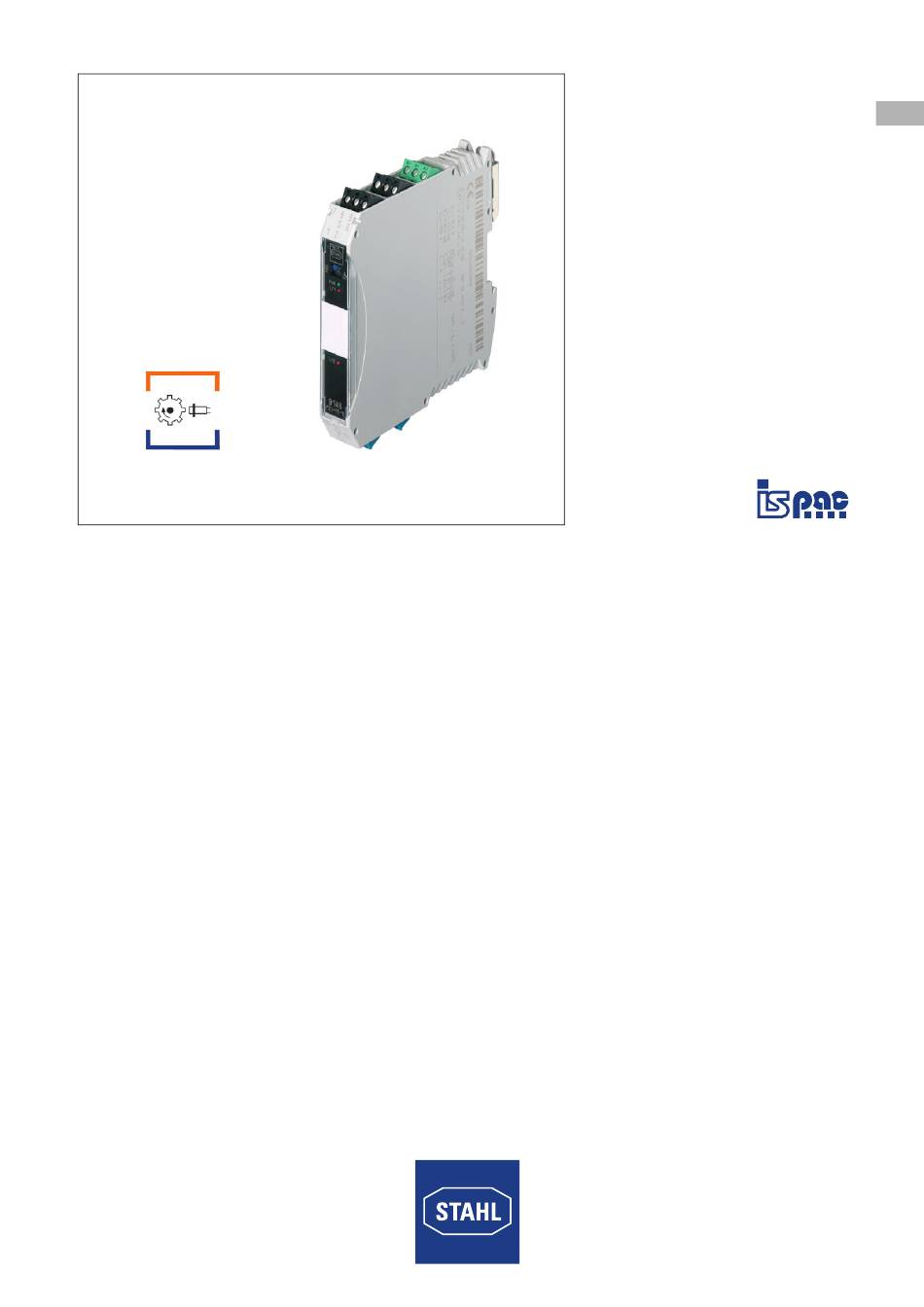

  • Page 1 Manual Additional languages www.r-stahl.com Frequency Transmitter Field Circuit Ex i Series 9146...

  • Page 2: Table Of Contents

    Contents General Information ....................3 Manufacturer .......................3 Information about the Manual ................3 Further Documents .....................3 Conformity with Standards and Regulations ............3 Explanation of the Symbols ................4 Symbols used in this Manual ................4 Warning Notes ....................4 Symbols on the Device ..................5 Safety Notes .......................5 Storage of the Manual ..................5 Personnel Qualification ..................5 Safe Use ......................6...

  • Page 3: En En En

    • Manual for the pac-Carrier 9195 For documents in additional languages, see www.r-stahl.com. Conformity with Standards and Regulations See certificates and EC Declaration of Conformity: www.r-stahl.com. The device has IECEx approval. See IECEx homepage: http://iecex.iec.ch/ Further national certificates can be downloaded via the following link: https://r-stahl.com/en/global/products/support/downloads/.

  • Page 4: Explanation Of The Symbols

    Explanation of the Symbols Explanation of the Symbols Symbols used in this Manual Symbol Meaning Tips and recommendations on the use of the device Danger due to explosive atmosphere Warning Notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation.

  • Page 5: Symbols On The Device

    Specialists who perform these tasks must have a level of knowledge that meets applicable national standards and regulations. Additional knowledge is required for tasks in hazardous areas! R. STAHL recommends having a level of knowledge equal to that described in the following standards: •...

  • Page 6: En 3.3 Safe Use

    • Use the device in accordance with its intended and approved purpose only. • Always consult with R. STAHL Schaltgeräte GmbH if using the device under operating conditions not covered by the technical data. • Make sure that the device is not damaged.

  • Page 7: Modifications And Alterations

    Function and Device Design Modifications and Alterations DANGER Explosion hazard due to modifications and alterations to the device! Non-compliance results in severe or fatal injuries. • Do not modify or alter the device. No liability or warranty for damage resulting from modifications and alterations.

  • Page 8: En 4.2 Device Design

    Function and Device Design Device Design Type 9146/10-11-12, 1-channel Device component Description Black/ Connection terminals for the safe area green terminals "PWR" LED, green Auxiliary power indication "LF1" LED, red Indication of line fault detection DIP switch "LF1" Activation of line fault detection DIP switch "ADJ1"...

  • Page 9: Technical Data

    Technical Data Technical Data Marking Type designation 9146/.0-11-1. CE marking 0158 Explosion Protection Global (IECEx) Gas, dust and IECEx BVS 13.0095X mining Ex nA nC [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I Europe (ATEX) Gas, dust and BVS 05 ATEX E 171 X mining...
  • Page 10 Technical Data Technical Data Electrical data Auxiliary power Nominal 24 V DC voltage U Voltage range 18 to 31.2 V Residual ripple ( 3.6 V within voltage range Nominal current at U 1 channel 55 mA 2 channels 75 mA Power consumption at U 1 channel...
  • Page 11 0.2 to 1 mm – - flexible 0.2 to 1.5 mm – - flexible with core end sleeves 0.25 to 1 mm 0.5 to 1 mm For further technical data, see www.r-stahl.com. 914660330020 Frequency Transmitter 2017-11-24·HB00·III·en·00 Field Circuit Ex i Series 9146...

  • Page 12: Engineering

    • Carefully observe the "Cabinet installation guide". You can find detailed information about project engineering in the "Cabinet installation guide" (download from www.r-stahl.com, Product documentation, subitem "Engineering"). Transport and Storage • Transport and store the device only in the original packaging.

  • Page 13: En 8 Mounting And Installation

    Mounting and Installation Mounting and Installation When installed in a corresponding suitable field enclosure, the device is permitted for use in hazardous areas in Zone 2 and Zone 22 or in safe areas. DANGER Explosion hazard due to installation without field enclosure! Non-compliance results in severe or fatal injuries! •...

  • Page 14: Mounting / Dismounting, Operating Position

    Mounting and Installation Mounting / Dismounting, Operating Position 8.2.1 Mounting / Dismounting pac-Bus The pac-Bus is an accessory which facilitates wiring of the auxiliary power and reading out of the collective error message. The components for the pac-Bus Type 9194 must be ordered separately. Mounting •...
  • Page 15 Mounting and Installation Mounting on pac-Bus The pac-Bus is equipped with a polarisation guide and the device with a matching slot. • Position the device as shown in the illustration. Position the cut-out of the enclosure on the outside edge of the top hat rail. 15554E00 •...

  • Page 16: Installation

    Mounting and Installation 8.2.4 Mounting / Dismounting pluggable Terminals Mounting • Plug the terminal into the device until the terminal engages. Dismounting • Position the screwdriver behind the terminal. • Push out the terminal. 10859E00 Installation Operation under difficult conditions, such as, in particular, on ships, requires additional measures to be taken for correct installation, depending on the place of use.
  • Page 17 Mounting and Installation 8.3.2 Schematic Diagrams Type 9146/10-11-12 1 channel, with limit value contacts Hazardous area Safe area pac-Bus Division 1 Division 2 Zone 0 / 1 Zone 2 passive Control system Field device ISpac Isolator 11019E Type 9146/20-11-11 2 channels Hazardous area Safe area Division 1...

  • Page 18: Parameterization And Commissioning

    Parameterization and Commissioning 8.3.3 Connection of Contacts Circuitry for line fault detection if the contacts at the input are de-energized: Schematic Short-circuit detection: 1 k Ω in series Open-circuit detection: 10 k Ω parallel 10 k 15529E Carry out circuitry for line fault detection in the immediate proximity of the contacts.

  • Page 19: Parameterizations

    Parameterization and Commissioning Parameterizations 9.2.1 DIP Switches "LF" and "ADJ" The front panel of the frequency transmitter contains a 4-pole DIP switch. Line fault detection Resetting the counter function of DIP switch "LF" DIP switch "ADJ" **) Deactivated *) Activated OFF-ON-OFF or ON-OFF-ON Channel 1 ADJ1...
  • Page 20 Parameterization and Commissioning 9.2.2 Input (via "ISpac Wizard" Software) The frequency transmitter offers different operating modes, which can be set depending on the application. The default setting is the operating mode "Frequency via period measurement". Selection Description Counter (0 to 65535) Incoming pulses are counted.
  • Page 21 Parameterization and Commissioning 9.2.5 Limit Value Setting (via "ISpac Wizard" Software) The limit value function is configured by means of the "ISpac Wizard" software. The following representation shows possible adjustments of the limit value contacts for relays A and B. This is an example, other assignments also being possible. Limit value A Limit value A - Hysteresis Limit value B +Hysteresis...

  • Page 22: En 10.1 Operation

    Operation 9.2.7 Start Override The start override ensures that the limit value settings "On below limit value" or "Off below limit value" do not activate the limit value contact even if the value has fallen below the limit value. This function allows a machine or system start without an alarm message being output.

  • Page 23: Troubleshooting

    Configure the measuring range accordingly flashing If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number of the device • Purchase information •...

  • Page 24: Overhaul

    • Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the www.r-stahl.com website.

  • Page 25: Cleaning

    Malfunction or damage to the device due to the use of non-original components. Non-compliance can result in material damage. • Use only original accessories and spare parts from R. STAHL Schaltgeräte GmbH. For accessories and spare parts, see data sheet on our homepage www.r-stahl.com.
