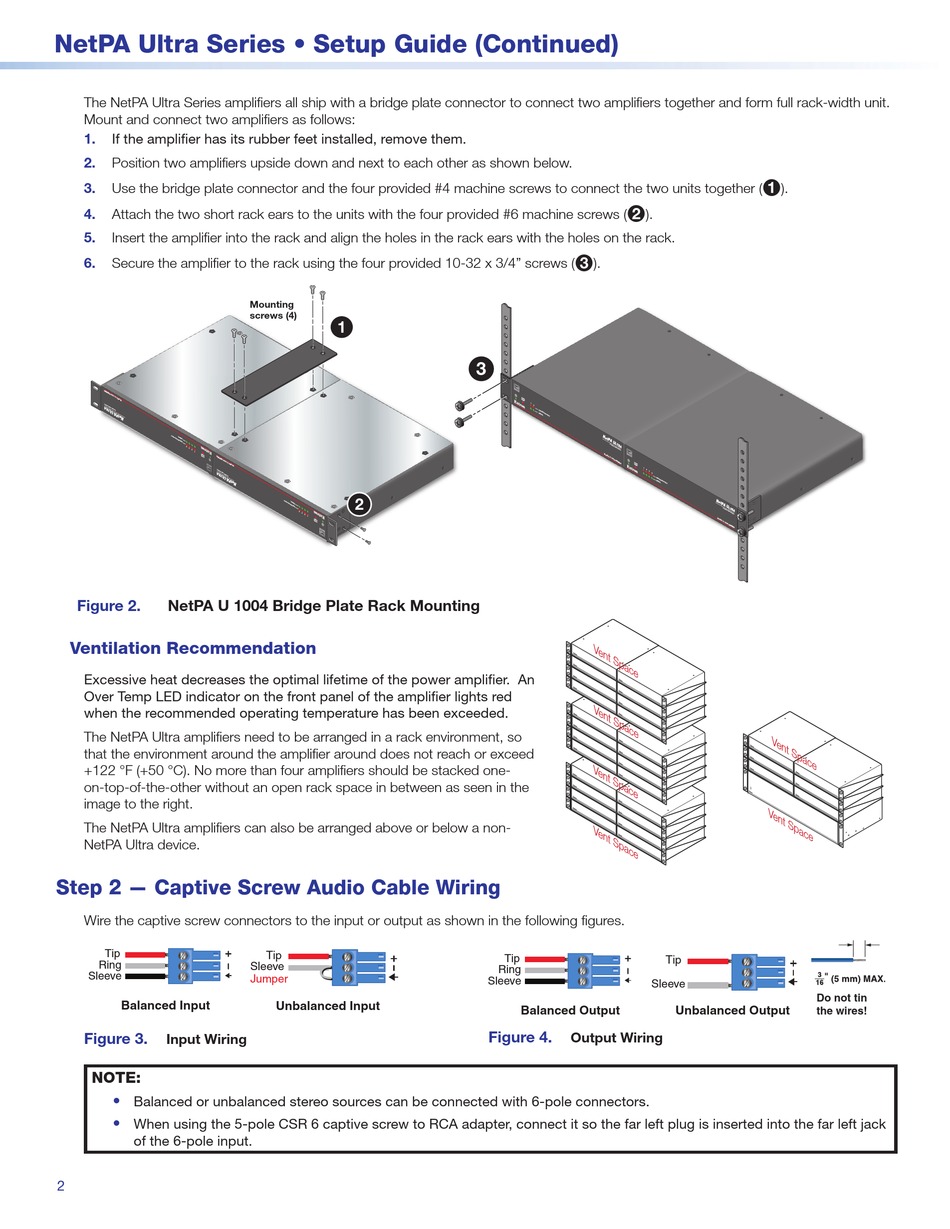

NetPA Ultra Series • Setup Guide (Continued)
The NetPA Ultra Series amplifiers all ship with a bridge plate connector to connect two amplifiers together and form full rack-width unit.
Mount and connect two amplifiers as follows:
1. If the amplifier has its rubber feet installed, remove them.
2. Position two amplifiers upside down and next to each other as shown below.
3. Use the bridge plate connector and the four provided #4 machine screws to connect the two units together (
4. Attach the two short rack ears to the units with the four provided #6 machine screws (
5. Insert the amplifier into the rack and align the holes in the rack ears with the holes on the rack.
6. Secure the amplifier to the rack using the four provided 10-32 x 3/4" screws (
Figure 2. NetPA U 1004 Bridge Plate Rack Mounting
Ventilation Recommendation
Excessive heat decreases the optimal lifetime of the power amplifier. An
Over Temp LED indicator on the front panel of the amplifier lights red
when the recommended operating temperature has been exceeded.
The NetPA Ultra amplifiers need to be arranged in a rack environment, so
that the environment around the amplifier around does not reach or exceed
+122 °F (+50 °C). No more than four amplifiers should be stacked one-
on-top-of-the-other without an open rack space in between as seen in the
image to the right.
The NetPA Ultra amplifiers can also be arranged above or below a non-
NetPA Ultra device.
Step 2 — Captive Screw Audio Cable Wiring
Wire the captive screw connectors to the input or output as shown in the following figures.
Tip
Ring
Sleeve
Balanced Input
Figure 3.
Input Wiring
NOTE:
•
Balanced or unbalanced stereo sources can be connected with 6-pole connectors.
•
When using the 5-pole CSR 6 captive screw to RCA adapter, connect it so the far left plug is inserted into the far left jack
of the 6-pole input.
2
Tip
Sleeve
Jumper
Unbalanced Input
2 ).
3 ).
3
