NetPA Ultra Series • Setup Guide (Continued)
Step 5 — AT Port
Connect a RJ-45 connector to the AT port to connect and
communicate with the Dante network. It is also one of the interfaces
DSP Configurator uses to communicate with the amplifier. The
Link LED indicates when a connection is made.
Go to Configure Dante Device Settings
Dante settings. See the image to the right for wiring.
Step 6 — Powering on Amplifier and
Adjustments
Reconnect all the power cables and switch on the rest of the
equipment before powering on the power amplifier. The amplifier will
boot-up for up to 10 seconds as the front panel LED lights amber.
Once the boot-up sequence is complete, the amplifier takes more time to
sync with the Dante network, and begin the playback of streamed content.
Once playback begins, the front panel LED lights green.
ATTENTION:
•
The amplifier must be powered on last.
•
L'amplificateur doit être mis sous tension en dernier.
Step 7 — Checking LEDs
Check the Limiter/Protect and Signal LEDs on the front and rear panels to see if any problems are encountered (see "Front Panel
Features and Troubleshooting" in the NetPA Ultra Series User Guide for more information).
Step 8 — DSP Configurator Software Installation
There are no hardware controls for any of the units in the NetPA Ultra Series. Configuration and control is done using either Extron DSP
Configurator software or SIS commands. To learn about full computer requirements, see the DSP Configurator product page on
extron.com
.
Download DSP Configurator from the Extron Website
1. From the Extron home page (
2. Under Software (located on the left side of the page), select DSP Configurator Software. The DSP Configurator Software
product page opens.
3. Click the Download button and follow the on-screen instructions.
NOTE:
An Extron Insider account is required to download DSP Configurator.
Step 9 — NetPA Ultra Series Configuration
When power is connected to any unit of the NetPA Ultra Series and the rest of the audio system, audio output can be easily
configured to any listening environment via the DSP Configurator. The following steps details how to configure a NetPA Ultra
Series amplifier and uses the NetPA U 1004 as an example. However, all of the amplifiers are configured in the same way.

Downloading and Installing Dante Controller

www.extron.com
1.
From
2. From the Featured Software list, select Dante Controller. The Dante Controller product page opens.
3. Click the blue Download button.
4. Select Run to run the Dante Controller installer. Select Save to save the install file to run at a later time.
5.
If you choose to run the file, follow all prompts. If you saved the file, click the saved file to begin installation when ready.
NOTE: The installed Dante Controller program files are saved in:
C:\Program Files (x86)\Audinate\Dante Controller\DanteController.exe
4
on page 5 for information on
www.extron.com
), click the Download tab to open the Download page.
, hover over the Download tab at the top of the page.

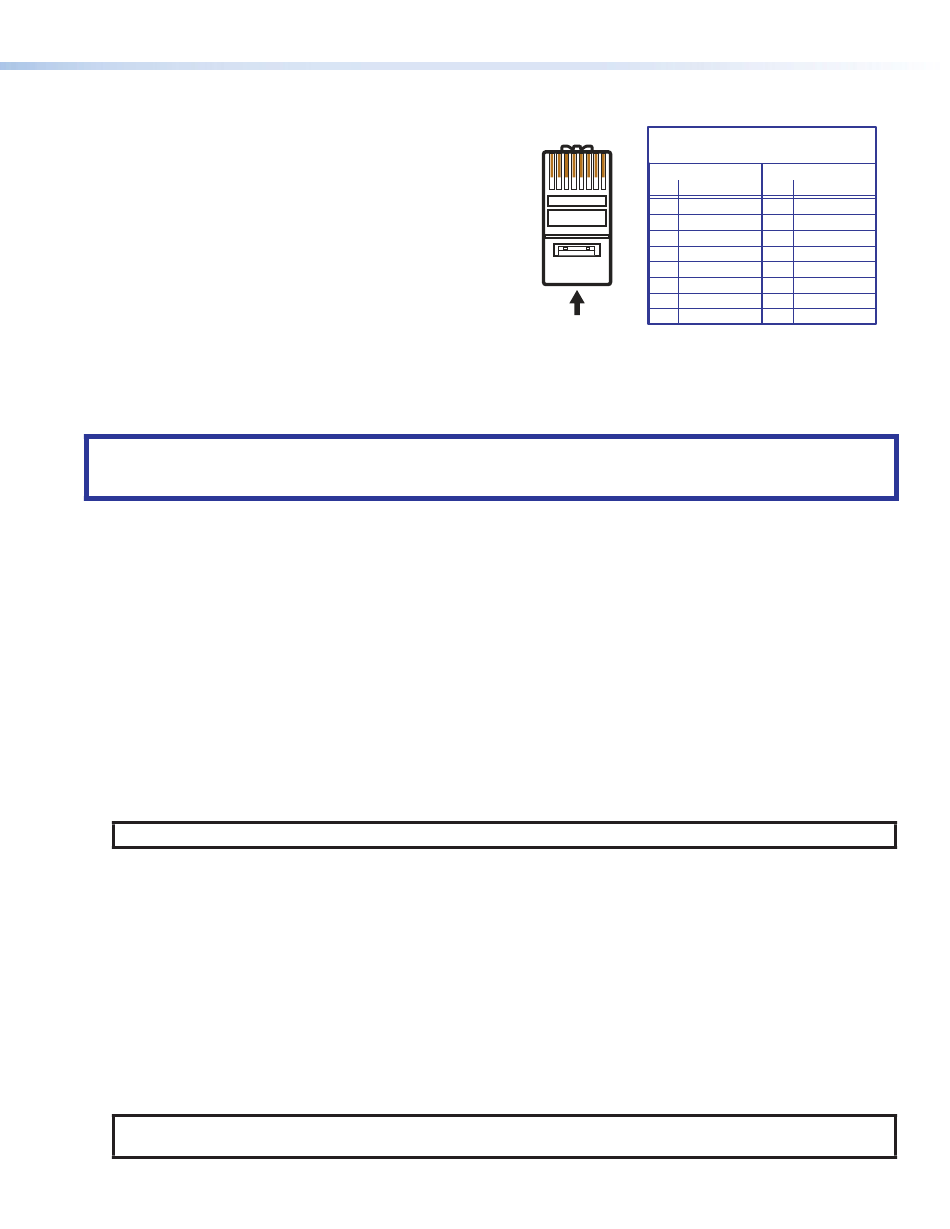

Pins:
Crossover Cable
12345678
(for direct connection to a PC)
End 1
Pin Wire Color
1 white-orange
2 orange
3 white-green
4 blue
5 white-blue
6 green
7 white-brown
8 brown
Insert Twisted
T568B
Pair Wires
A cable that is wired as TIA/EIA T568A at one
RJ-45
end and T568B at the other (Tx and Rx pairs
Connector
reversed) is a "crossover" cable.
.
End 2
Pin Wire Color
1 white-green
2 green
3 white-orange
4 blue
5 white-blue
6 orange
7 white-brown
8 brown
T568A
www.
