Smart Machine Smart Decision
3.6.2

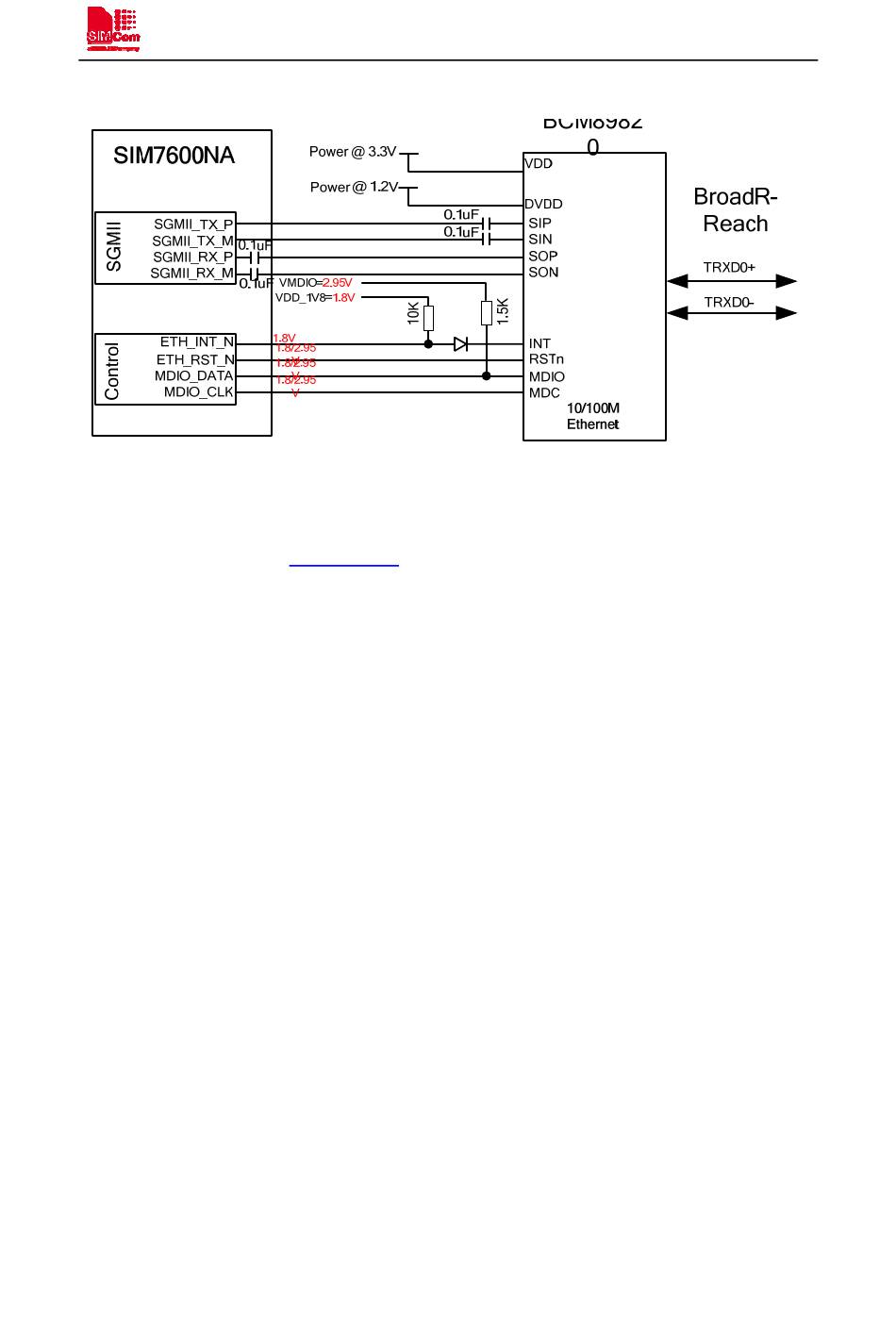

Reference schematic with BCM89820

Figure21: Reference SGMII circuit with BCM89820
Note: The module SGMII function default closed. If user need, please contact SIMCom for
more details or refer to
document [28]
SIM7600NA_user manual _V1.00
35
2020-1-7
